Research Paper Volume 7, Issue 6 pp 435—449

Premature aging of the hippocampal neurogenic niche in adult Bmal1‐ deficient mice

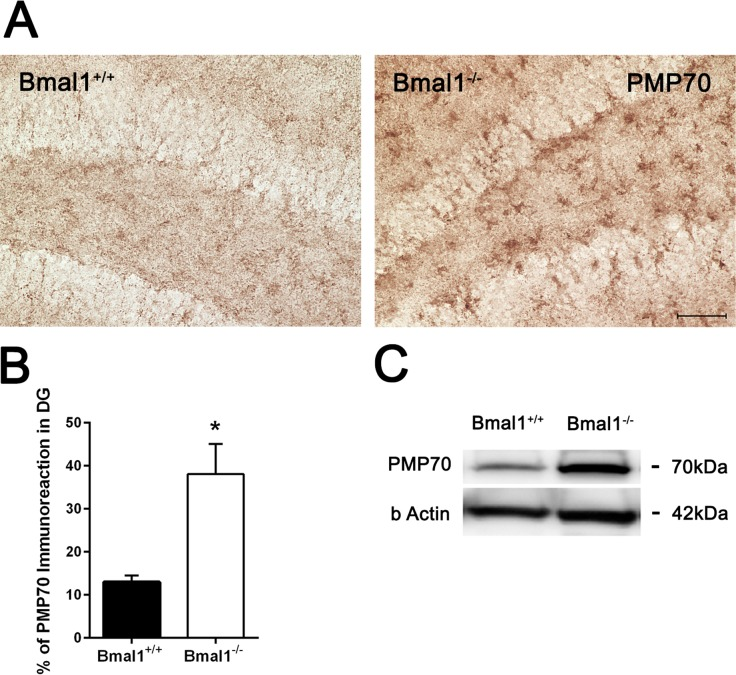

Figure 6. PMP70 expression was increased in Bmal1‐/‐ mice. (A) Representative photomicrographs of PMP70‐ immunoreaction in DG. (B) Quantification of PMP70 immunopositive area in DG. Immunoreaction was significantly higher in Bmal1‐/‐. (C) Representative immunoblot of PMP70 in hippocampal protein extract. Stronger immunopositive bands were observed in Bmal1‐/‐. Values are shown as mean + SEM, *: P <0.05, scale bar = 50 μm.
