Research Paper Volume 9, Issue 2 pp 556—572

Characterization of the influence of age on GABAA and glutamatergic mediated functions in the dorsolateral prefrontal cortex using paired-pulse TMS-EEG

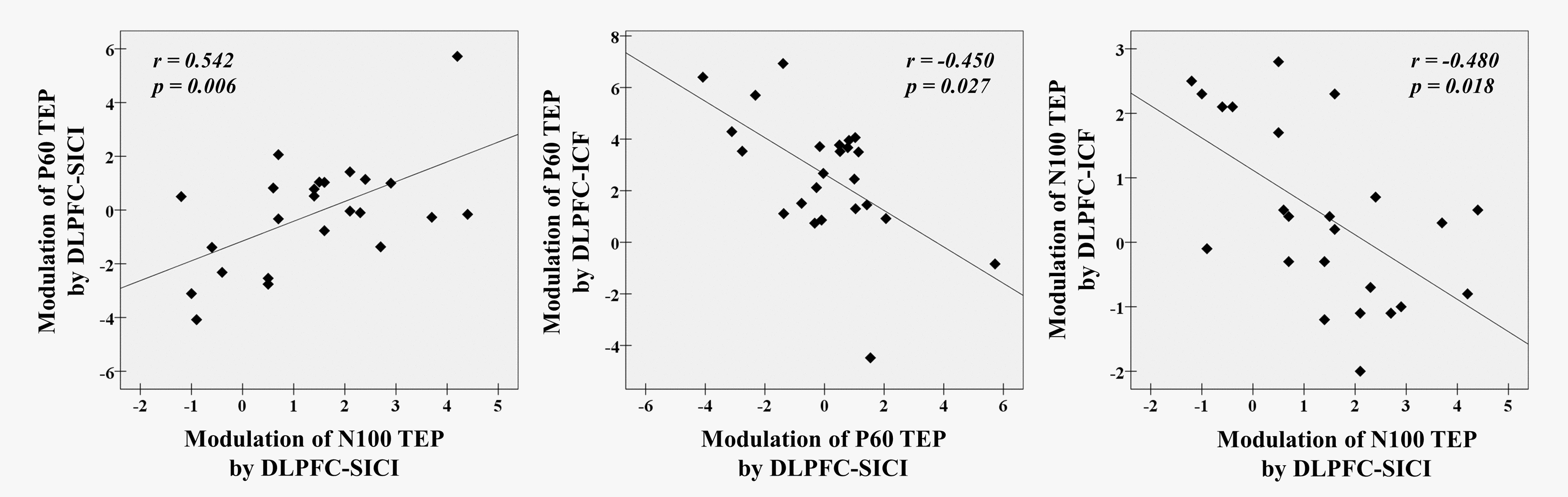

Figure 4. Neurophysiological relationship with SICI and ICF paradigms from the DLPFC. There are significant correlations between modulations of P60 TEP and N100 TEP with DLPFC-SICI (r = 0.542, p = 0.006, N = 24), and further between a modulation of P60 TEP by DLPFC-SICI and a modulation of P60 TEP by DLPFC-ICF (r = -0.450, p = 0.027, N = 24) and between a modulation of N100 TEP by DLPFC-SICI and a modulation of N100 TEP by DLPFC-ICF (r = -0.480, p = 0.018, N = 24) at the left frontal ROI.
