Research Paper Volume 9, Issue 7 pp 1770—1824

The effects of graded levels of calorie restriction: XI. Evaluation of the main hypotheses underpinning the life extension effects of CR using the hepatic transcriptome

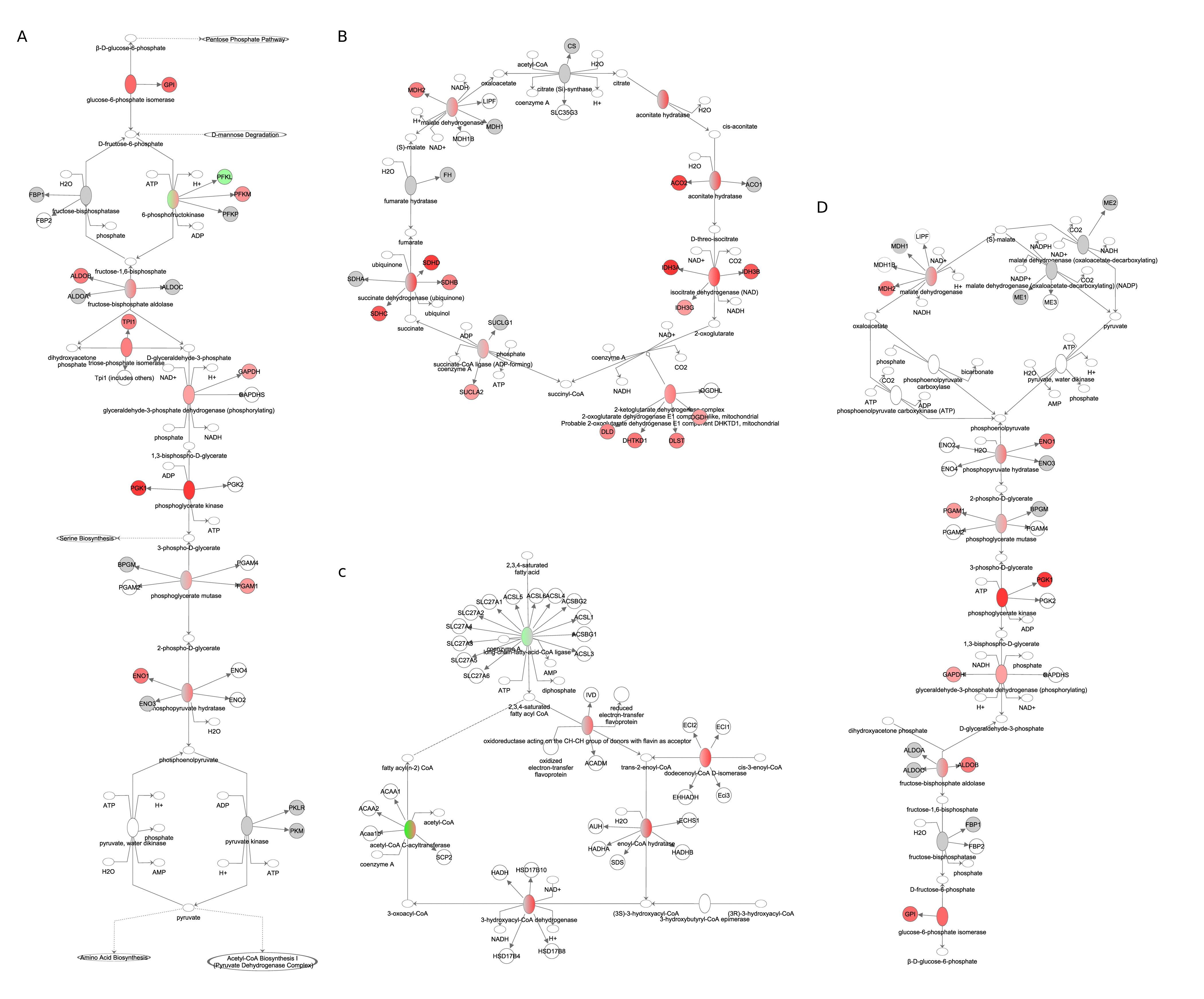

Figure 9. Fuel utilization pathways obtained from the Ingenuity Pathway Analysis (IPA, www.qiagen.com/ingenuity) program. The normalized counts for each gene were correlated with the increase in calorie restriction (CR) level by Pearson correlation method. The pathway is colored based on a cut-off of an absolute correlation coefficient higher than 0.3. Red indicates a positive correlation with increasing CR level while green indicates a negative correlation. (A) glycolysis. (B) TCA cycle (C) fatty acid β-oxidation. (D) gluconeogenesis.
