Research Paper Volume 10, Issue 5 pp 1000—1014

Integrated analysis of colorectal cancer microRNA datasets: identification of microRNAs associated with tumor development

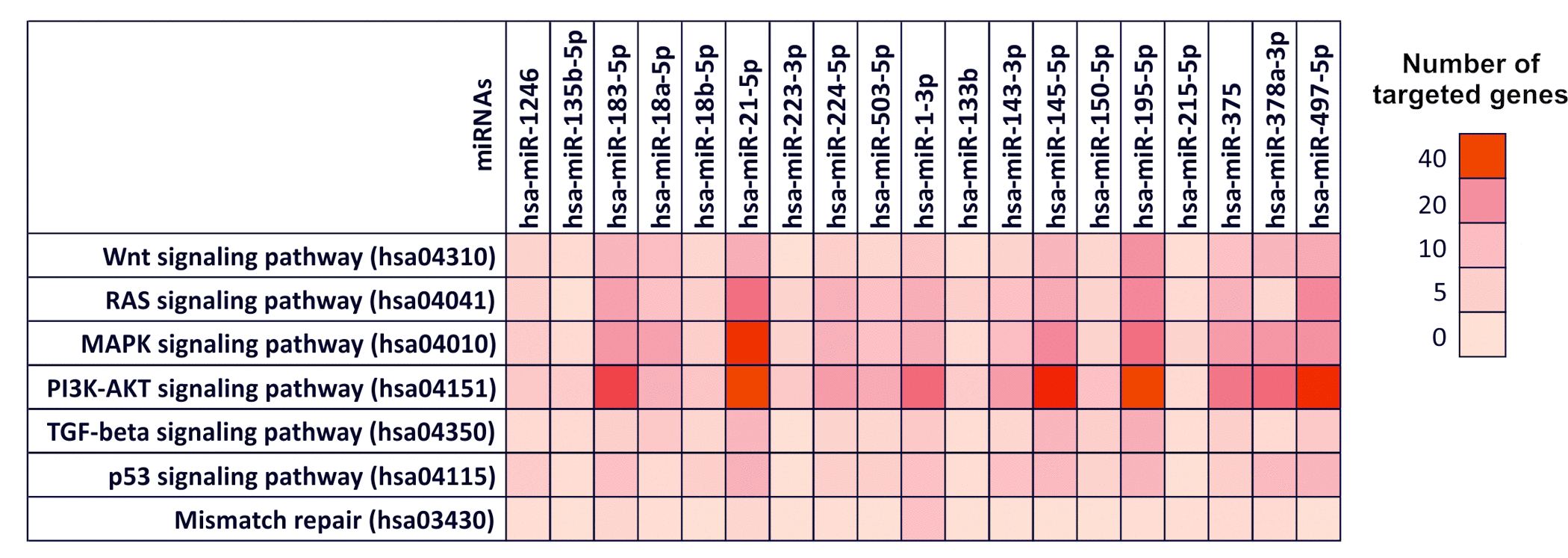

Figure 3. Diana-mirPath pathway analysis – Interaction between selected miRNAs and TCGA colorectal cancer pathways. Prediction pathway analysis of the interaction between selected miRNAs and the main genes and pathways involved in CRC development according to The Cancer Genome Atlas Network. For each miRNA is indicated the number of targeted gene within a specific pathway is indicated by highlighting the corresponding box with a color scale ranging from red (40 genes targeted) to light red (0 genes targeted).
