Identification and characterization of human ovary-derived circular RNAs and their potential roles in ovarian aging

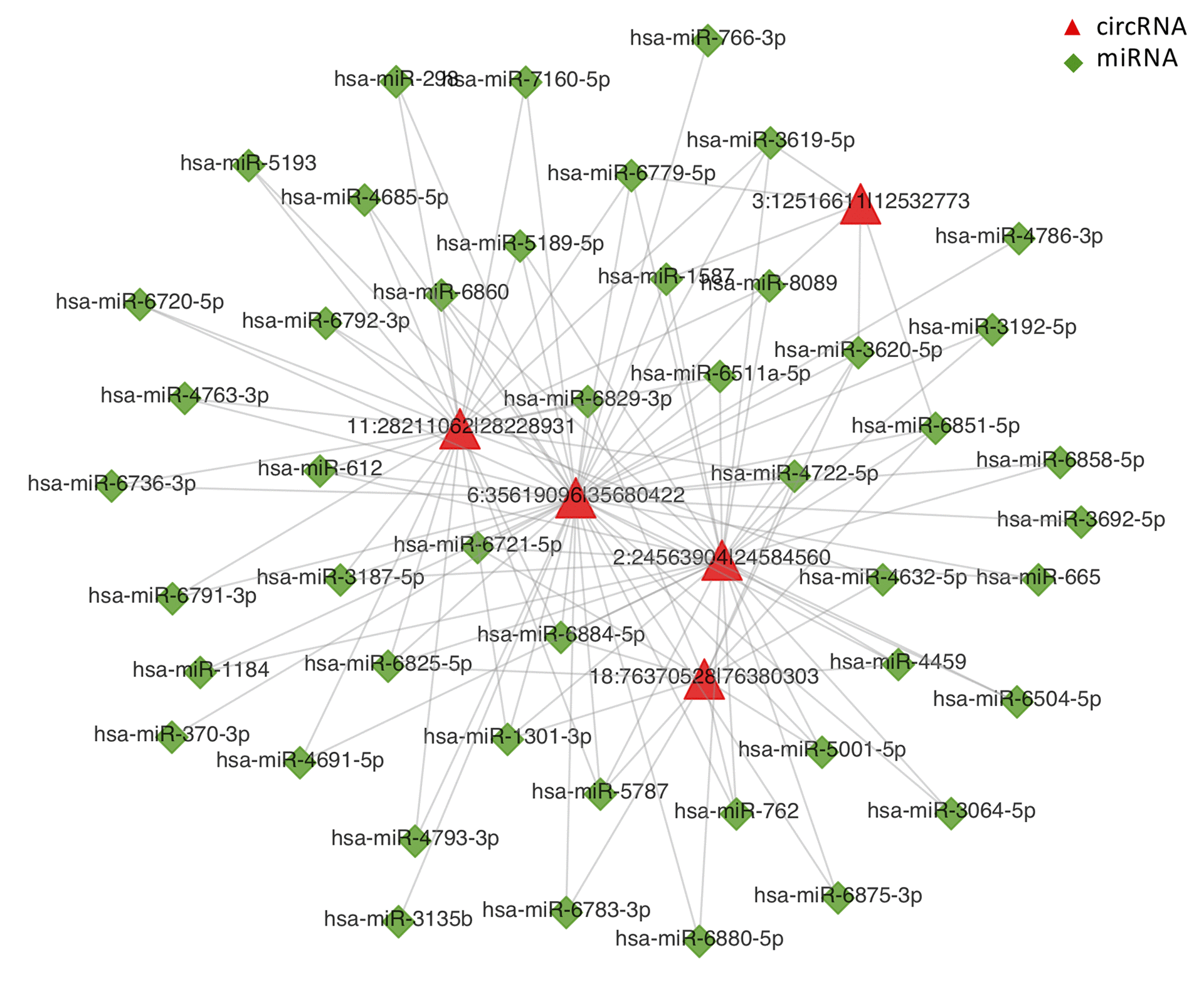

Figure 5. CircRNA-miRNA network analysis. The top 5 differentially expressed circRNAs and 47 predicted miRNAs were selected to generate a network map. The circRNA-miRNA network was constructed using bioinformatics online programs (starBase, circBase, TargetScan, and miRBase). The red triangle indicates circRNA and the green diamond indicates miRNA.
