Research Paper Volume 10, Issue 12 pp 3986—3999

Injury factors alter miRNAs profiles of exosomes derived from islets and circulation

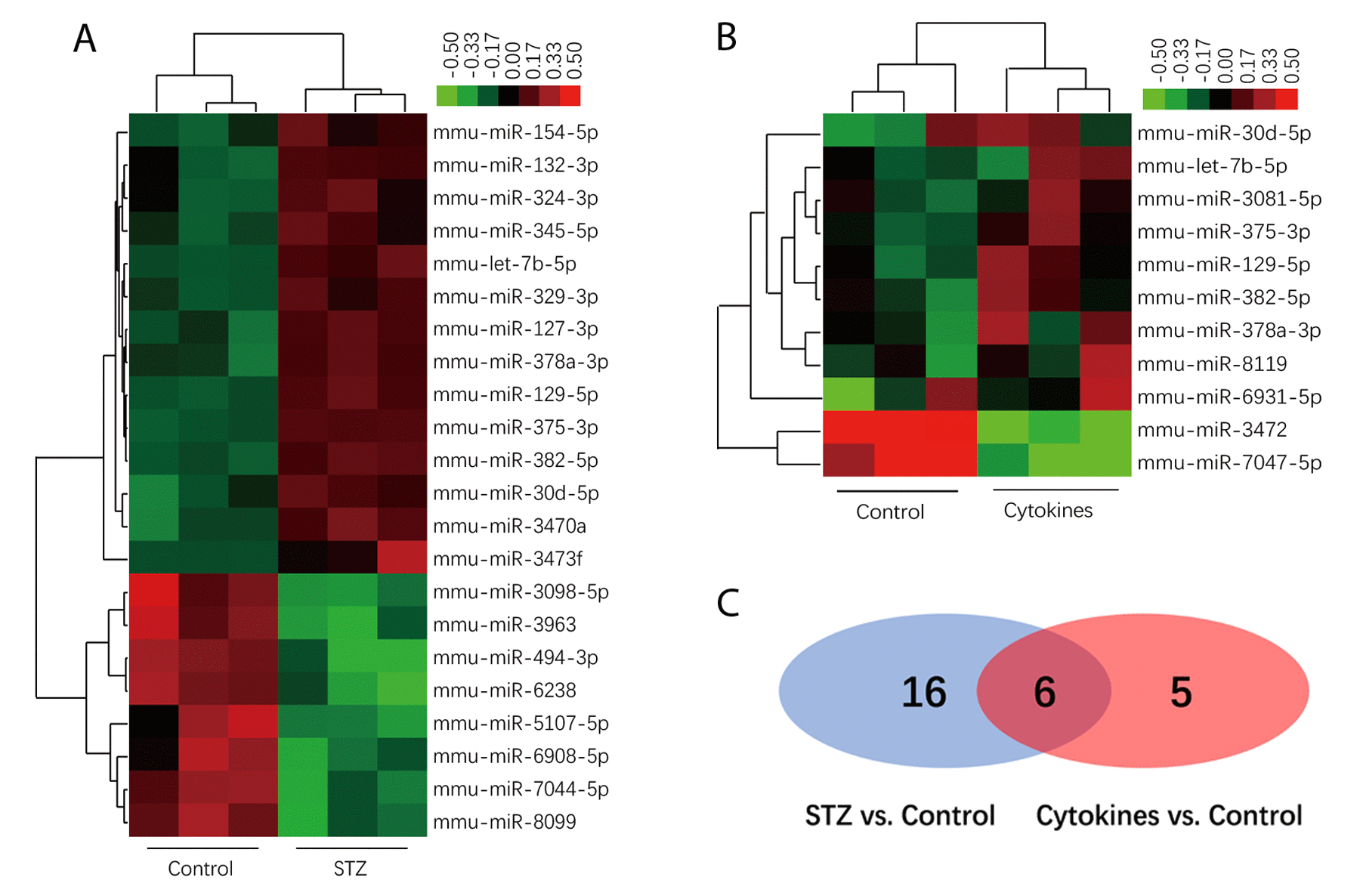

Figure 3. MiRNAs profiles of exosomes derived from islets. Heatmap of the normalized expression levels of miRNAs differentially expressed in exosome of STZ (A) and cytokines (B) treated islets compared with control (x axis clustering showed different treatments). (C) Venn diagram show 6 differentially expressed miRNAs both in STZ and cytokines treated group compared with controls (shown in the overlap area).
