Research Paper Volume 11, Issue 13 pp 4720—4735

Alternative splicing events are prognostic in hepatocellular carcinoma

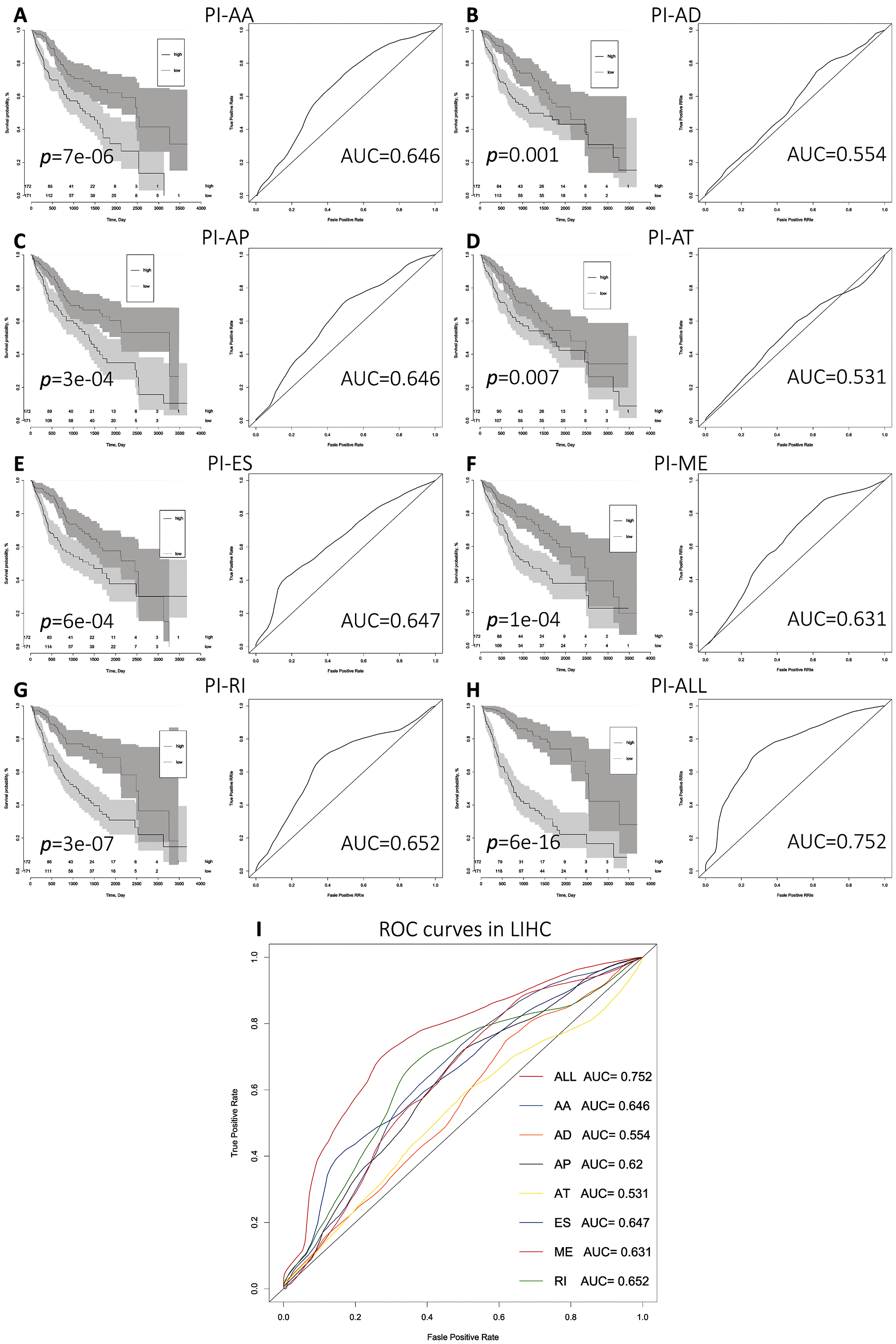

Figure 3. Comparison of the prognostic efficacy of the eight PIs for OS survival among HCC patients in the low and high risk subgroups. (AI) Kaplan-Meier survival curves for patients in the low and high subgroups for each PI. Time-dependent ROC curves demonstrating the ability of each PI to predict patient survival after 2,000 days.
