Alternative splicing events are prognostic in hepatocellular carcinoma

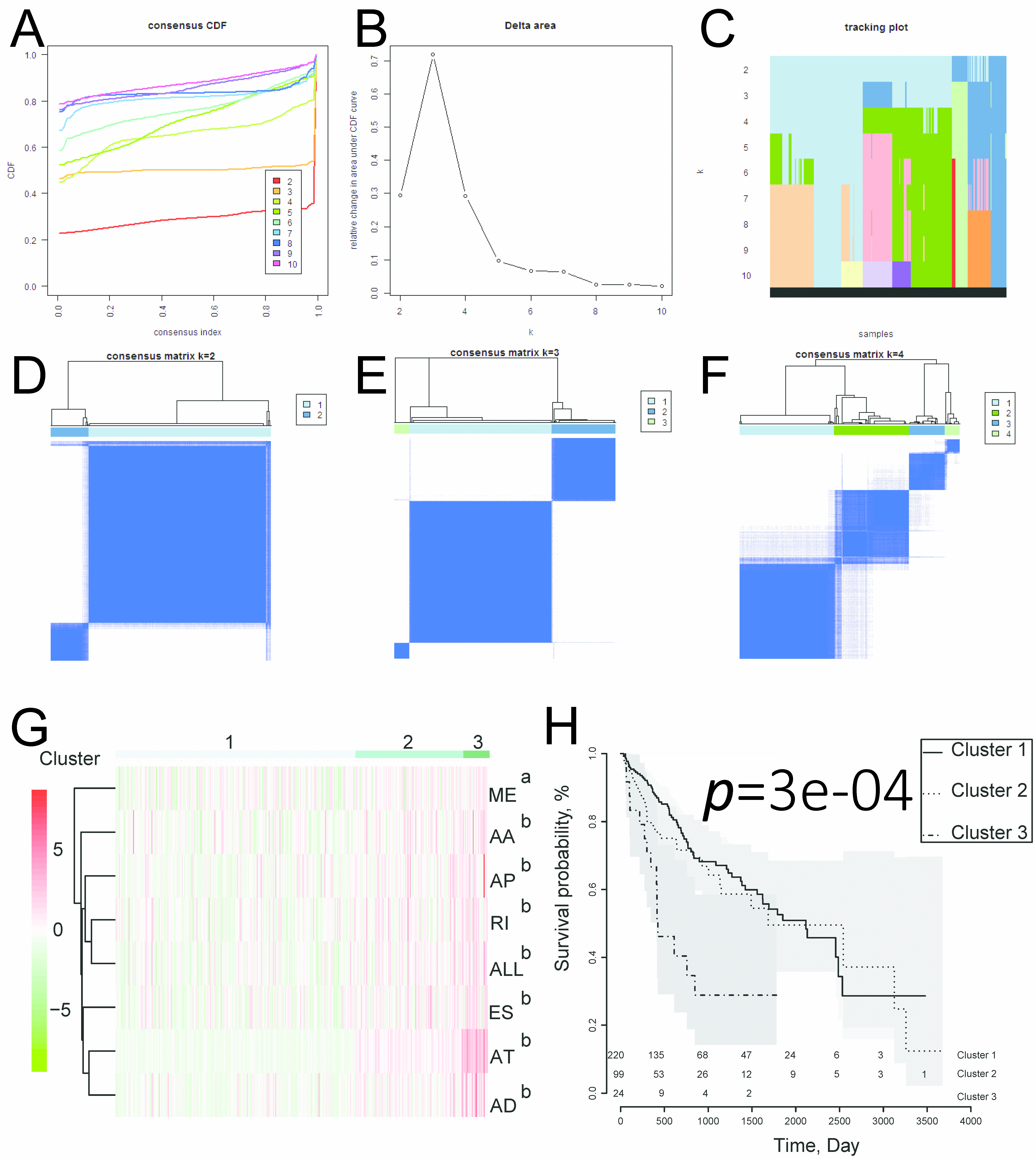

Figure 5. Identification of three clusters of HCC patients that exhibited distinct ASE features and clinical outcomes using consensus clustering. (A) Cumulative distribution function for k = 2 to 10. (B) Relative change in the area under the CDF curve for k = 2 to 10. (C) Tracking plot for k = 2 to 10. (DF) Consensus clustering matrix for k = 2, 3, and 4. (G) Heatmap of the consensus matrix. aP< 0.01, bP< 0.001. (H) Kaplan-Meier OS curves for the 343 HCC patients stratified by cluster.
