Research Paper Volume 11, Issue 18 pp 7996—8014

Differential effects of extracellular vesicles from aging and young mesenchymal stem cells in acute lung injury

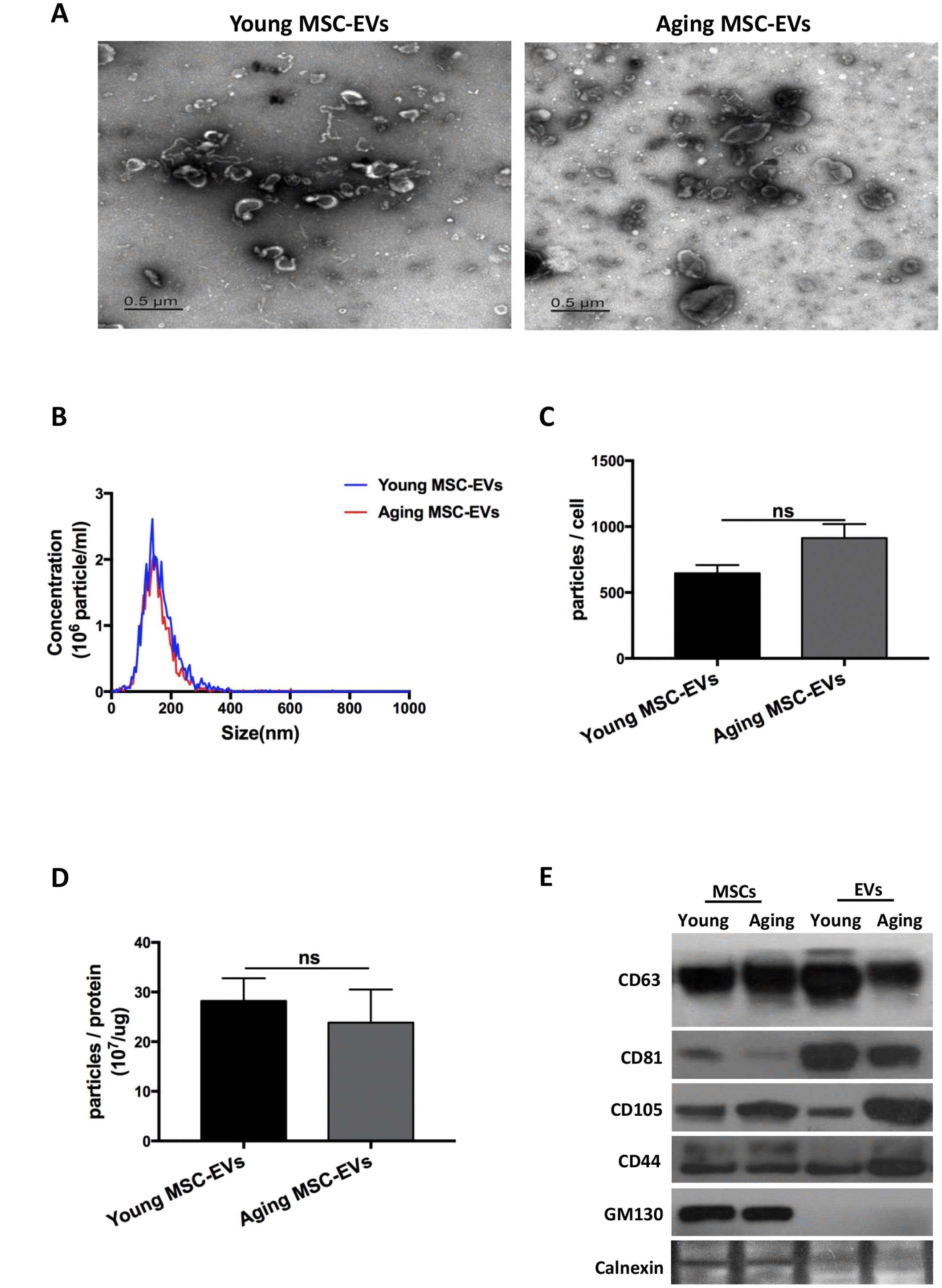

Figure 2. EVs derived from young and aging human adipose-derived MSCs showed similar characteristics. (A) Morphology of the isolated young and aging MSC-EVs as imaged by transmission electron microscopy (scale bar: 0.5 μm). (BD) Size and particle concentrations of isolated young and aging MSC-EVs were examined via nanoparticle tracking analysis. Data are presented as mean ± SEM, n = 4–7. (E) Markers for MSC-EVs were assayed by Western blot analysis, n = 3.
