Research Paper Volume 11, Issue 21 pp 9328—9347

Bioinformatic profiling of prognosis-related genes in the breast cancer immune microenvironment

class="figure-viewer-img"

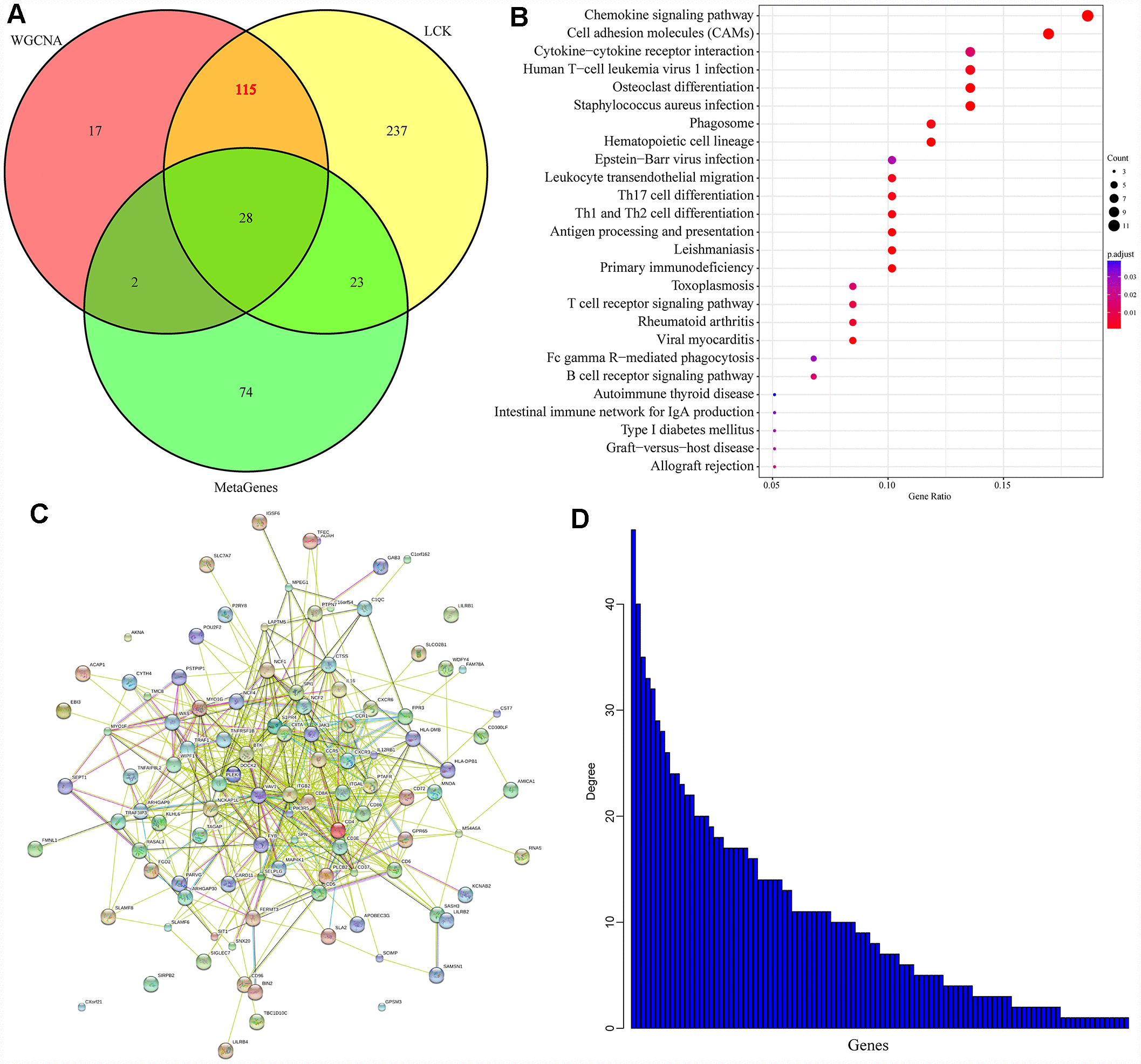

Figure 7. Prognostic markers related to the immune microenvironment of breast cancer. (A) Co-expressed genes that significantly correlated with gene members of the LCK metagene in terms of their mRNA levels. (B) KEGG enrichment analysis of the 115 genes. (C) Protein interaction networks of the 115 genes. (D) The degree distribution of nodes in the network.
