Research Paper Volume 11, Issue 24 pp 12428—12451

System level characterization of small molecule drugs and their affected long noncoding RNAs

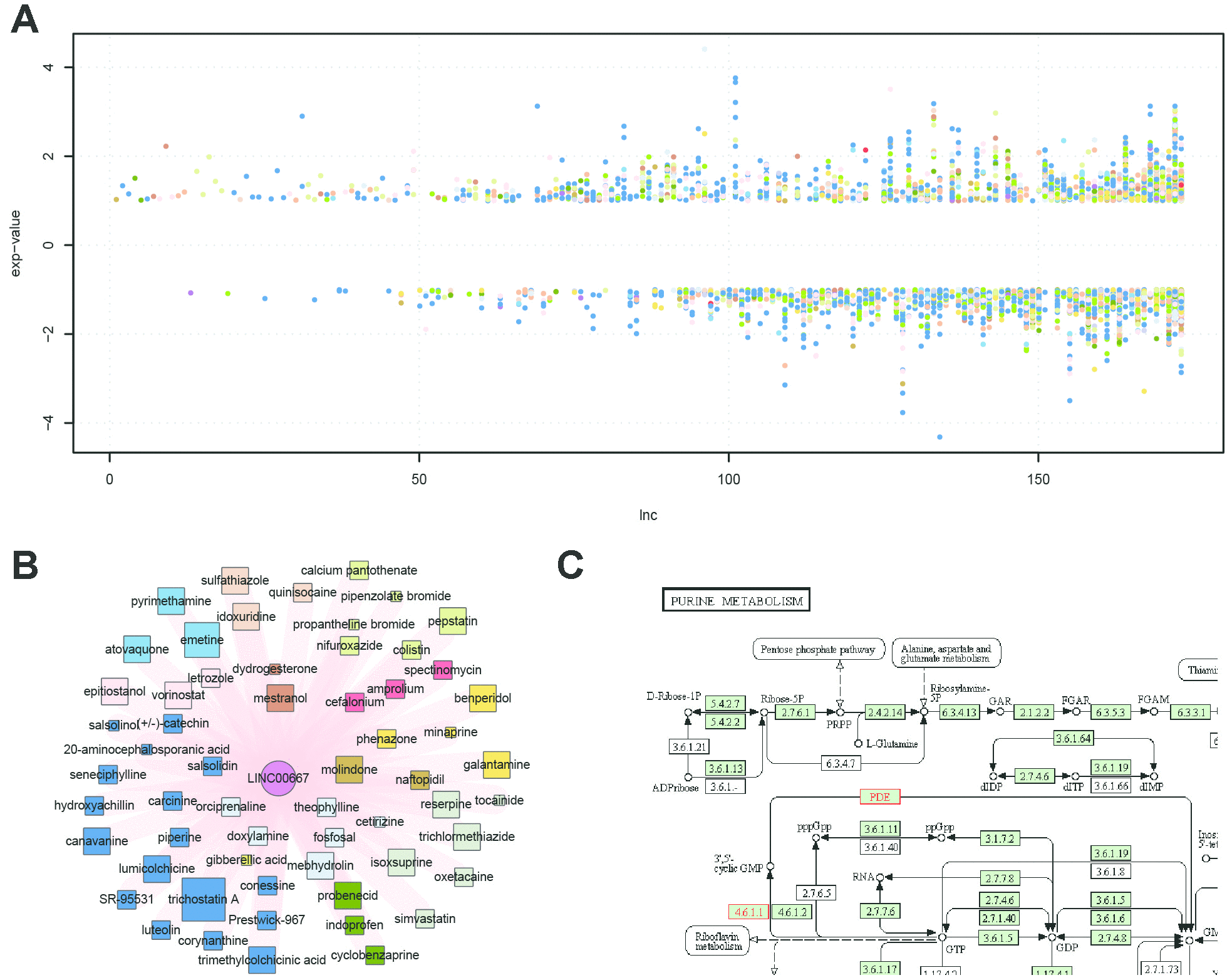

Figure 3. LncRNA expression values and functional characteristics. (A) Fold change value of lncRNAs affected by drugs; colors represent different ATC codes of drugs affected by the specific lncRNA. (B) Sub-network of LINC00667 and the related drugs: LINC00667 was always up-regulated after drug treatment. (C) Functional characteristics of LINC00667 by pathway enrichment with its co-expressed protein-coding genes.
