Research Paper Volume 12, Issue 8 pp 6558—6569

Epigenetic modulation of macrophage polarization prevents lumbar disc degeneration

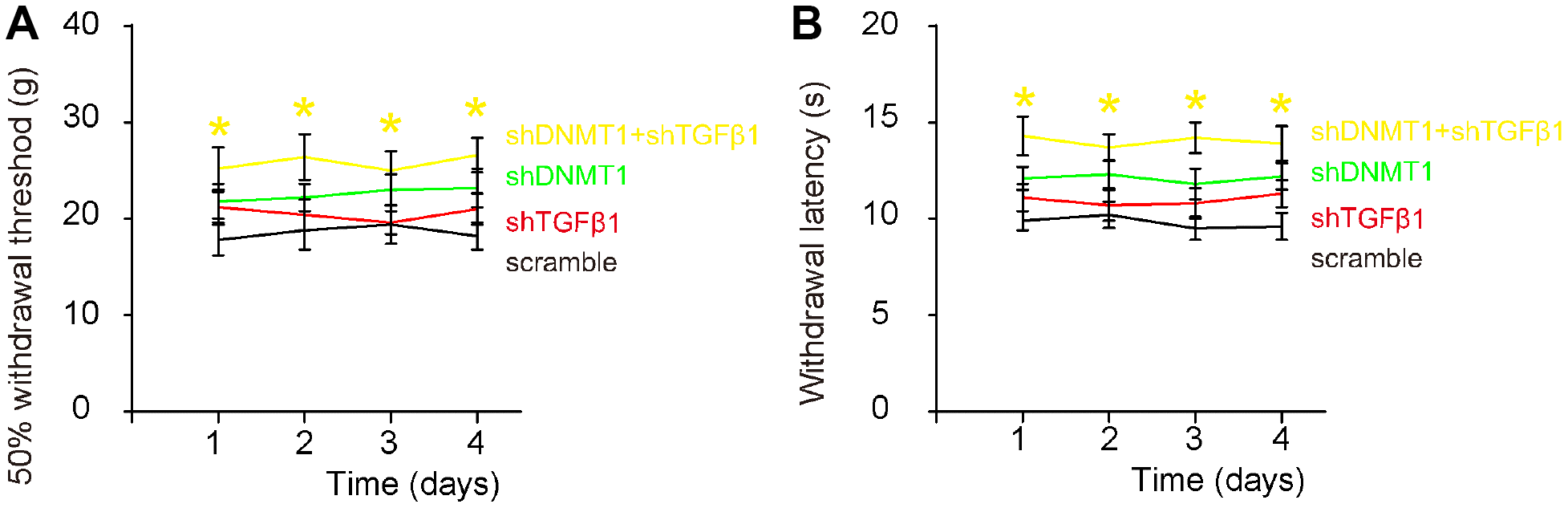

Figure 7. Effects of AAVs on pain assessment after LDD. Von Frey filament test was applied to evaluate the mechanical and thermal pain in 4 consecutive days. (A) Measurement of mechanically induced withdrawal threshold. (B) Measurement of thermally induced withdrawal latency of the paw. *(in yellow) p<0.05: shDNMT1+shTGFβ1 vs scramble. NS: non-significant. N=7.
