Research Paper Volume 12, Issue 24 pp 25172—25188

Vascular endothelial growth factor receptor-2 and its association with tumor immune regulatory gene expression in hepatocellular carcinoma

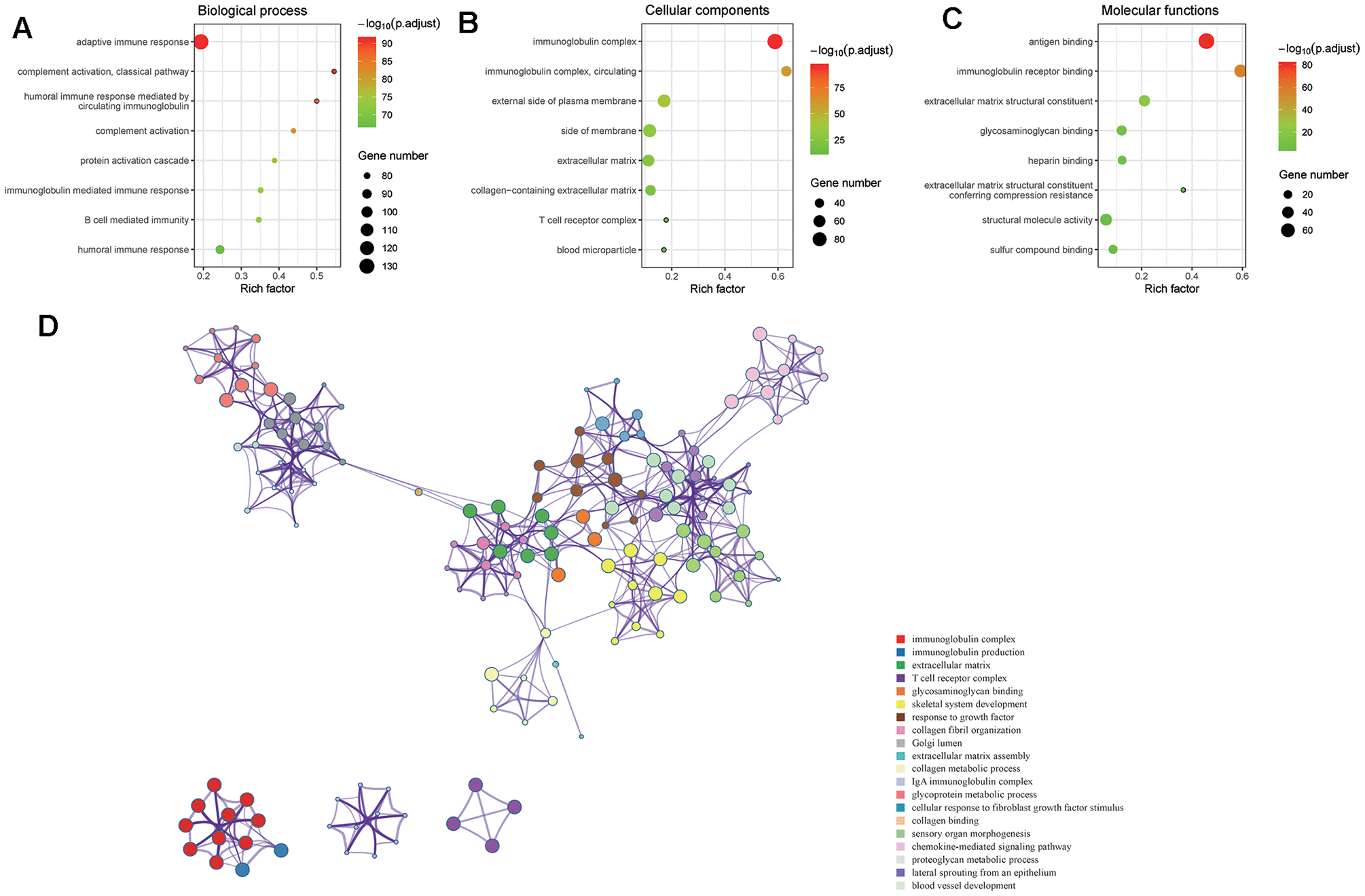

Figure 5. DEGs between the two VEGF score subtypes enriched in immune-related GO terms. GO pathway enrichment analysis revealed that immune-related GO terms ranked top in biological process (A), cellular components (B), and molecular functions (C). The network of the top 20 GO summary terms revealed the relationships between immune-related GO terms, angiogenesis-related GO terms, and stroma related GO terms (D).
