Research Paper Volume 12, Issue 24 pp 26095—26120

Identification and validation of an immune-related gene signature predictive of overall survival in colon cancer

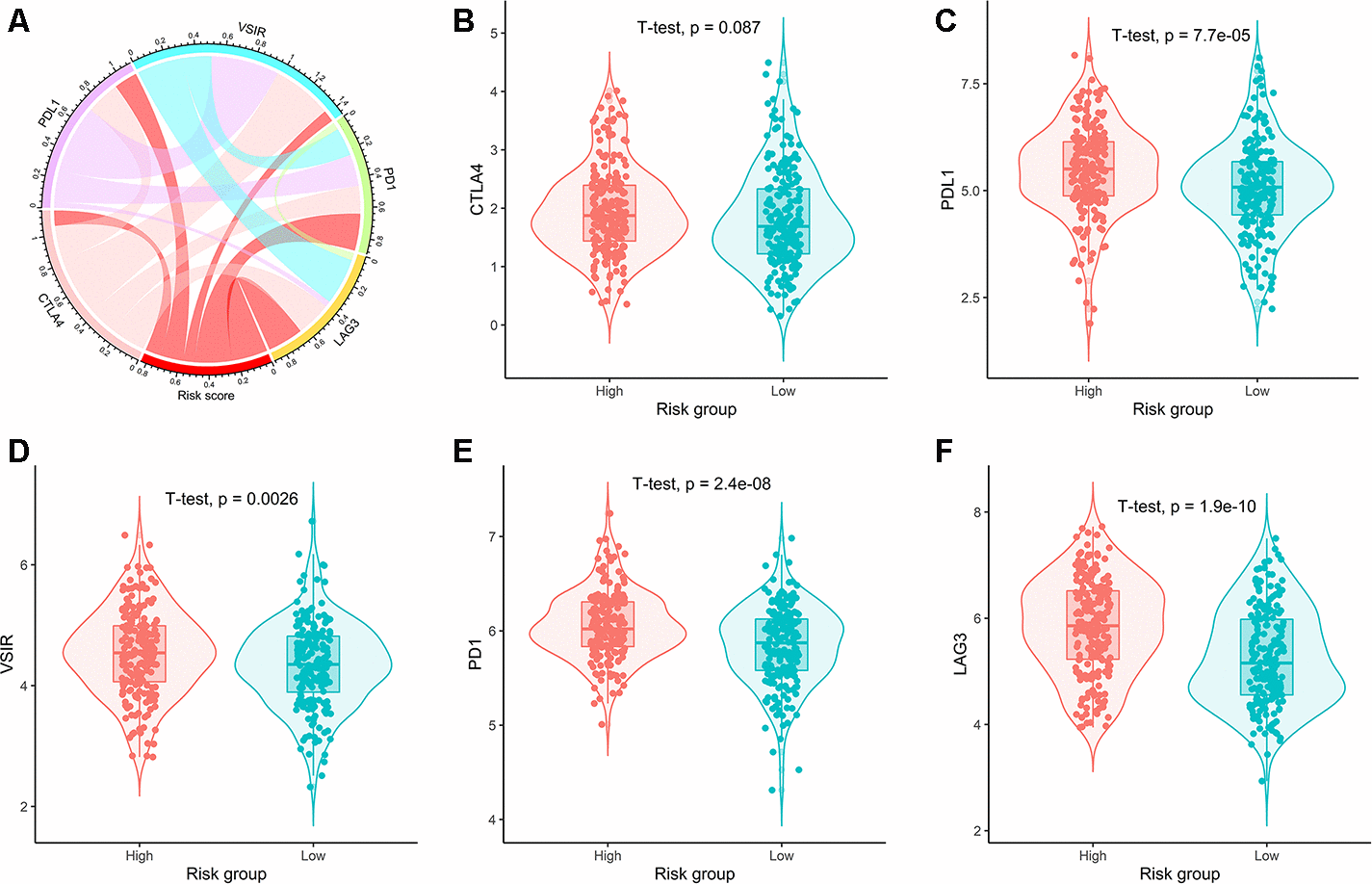

Figure 8. Correlation of risk scores with expression of five prominent immune checkpoints. (A) Circular plot visualizing correlation coefficient of risk scores with expression of five common immune checkpoints. Box plots showing comparison of the expression of (B) CTLA4, (C) PDL1, (D) VSIR, (E) PD1, and (F) LAG3 between high- and low-risk groups.
