Research Paper Volume 13, Issue 4 pp 5461—5474

Identification of prognostic immune-related genes in rhabdoid tumor of kidney based on TARGET database analysis

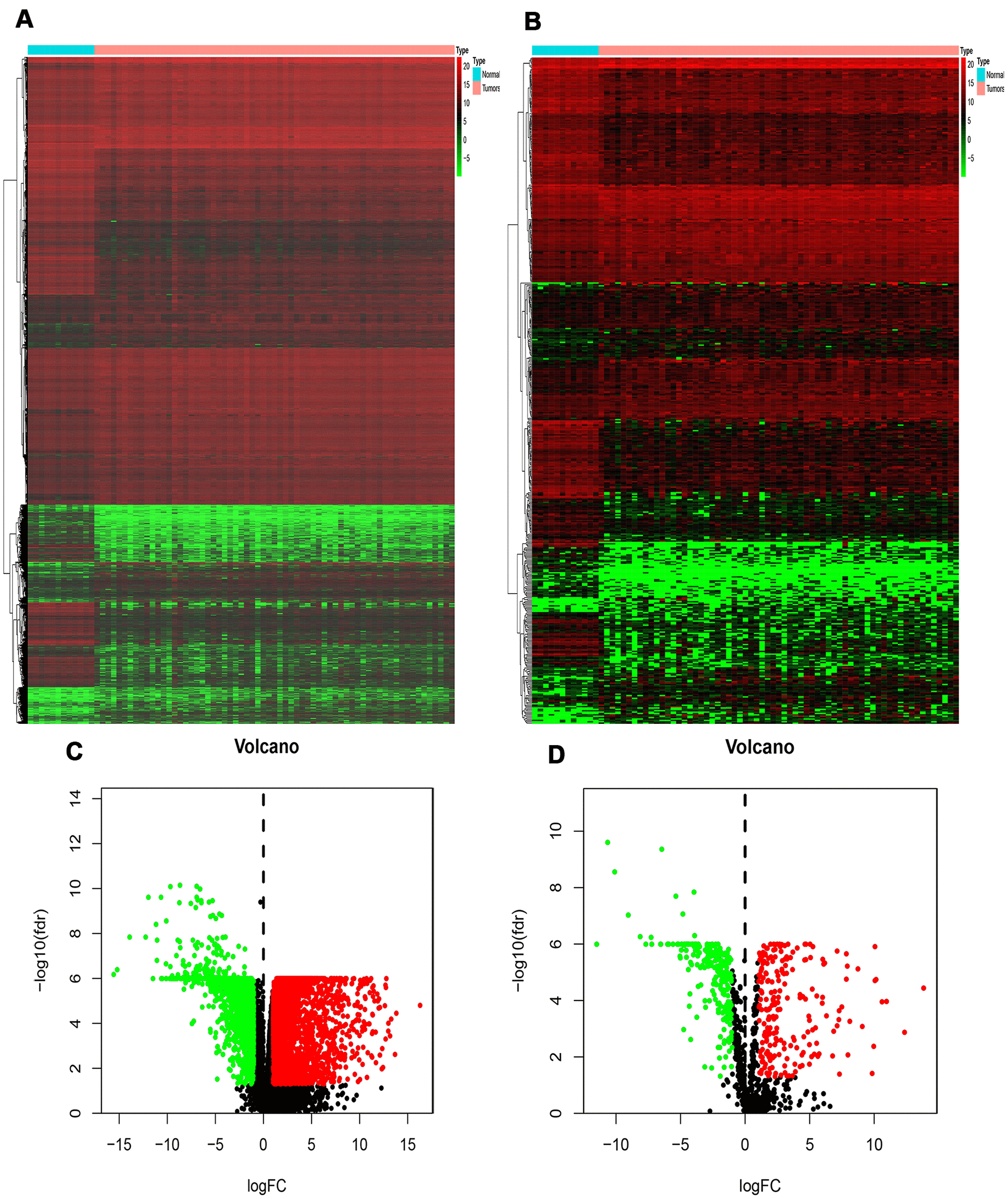

Differentially expressed genes and IRGs in RTK. (A) Heat-map of significant DEGs in RTK. The color from green to red represents the progression from low expression to high expression. (B) Heatmap of significant differentially expressed immune-related genes in RTK. Red represents higher expression while green represents lower expression. (C) Volcano plot of differentially expressed genes. The red dots in the plot represents up-regulated genes and green dots represents down-regulated genes with statistical significance. Black dots represent no DEGs. (D) Volcano plot of differentially expressed immune-related genes in RTK. Colored dots represent differentially expressed immune-related genes and black dots represent no differentially expressed immune-related genes. Abbreviations: GO, Gene Ontology. IRGs, immune-related genes. DEGs, differentially expressed genes.

Figure 1. Differentially expressed genes and IRGs in RTK. (A) Heat-map of significant DEGs in RTK. The color from green to red represents the progression from low expression to high expression. (B) Heatmap of significant differentially expressed immune-related genes in RTK. Red represents higher expression while green represents lower expression. (C) Volcano plot of differentially expressed genes. The red dots in the plot represents up-regulated genes and green dots represents down-regulated genes with statistical significance. Black dots represent no DEGs. (D) Volcano plot of differentially expressed immune-related genes in RTK. Colored dots represent differentially expressed immune-related genes and black dots represent no differentially expressed immune-related genes. Abbreviations: GO, Gene Ontology. IRGs, immune-related genes. DEGs, differentially expressed genes.
