Tumor microenvironment characterization in triple-negative breast cancer identifies prognostic gene signature

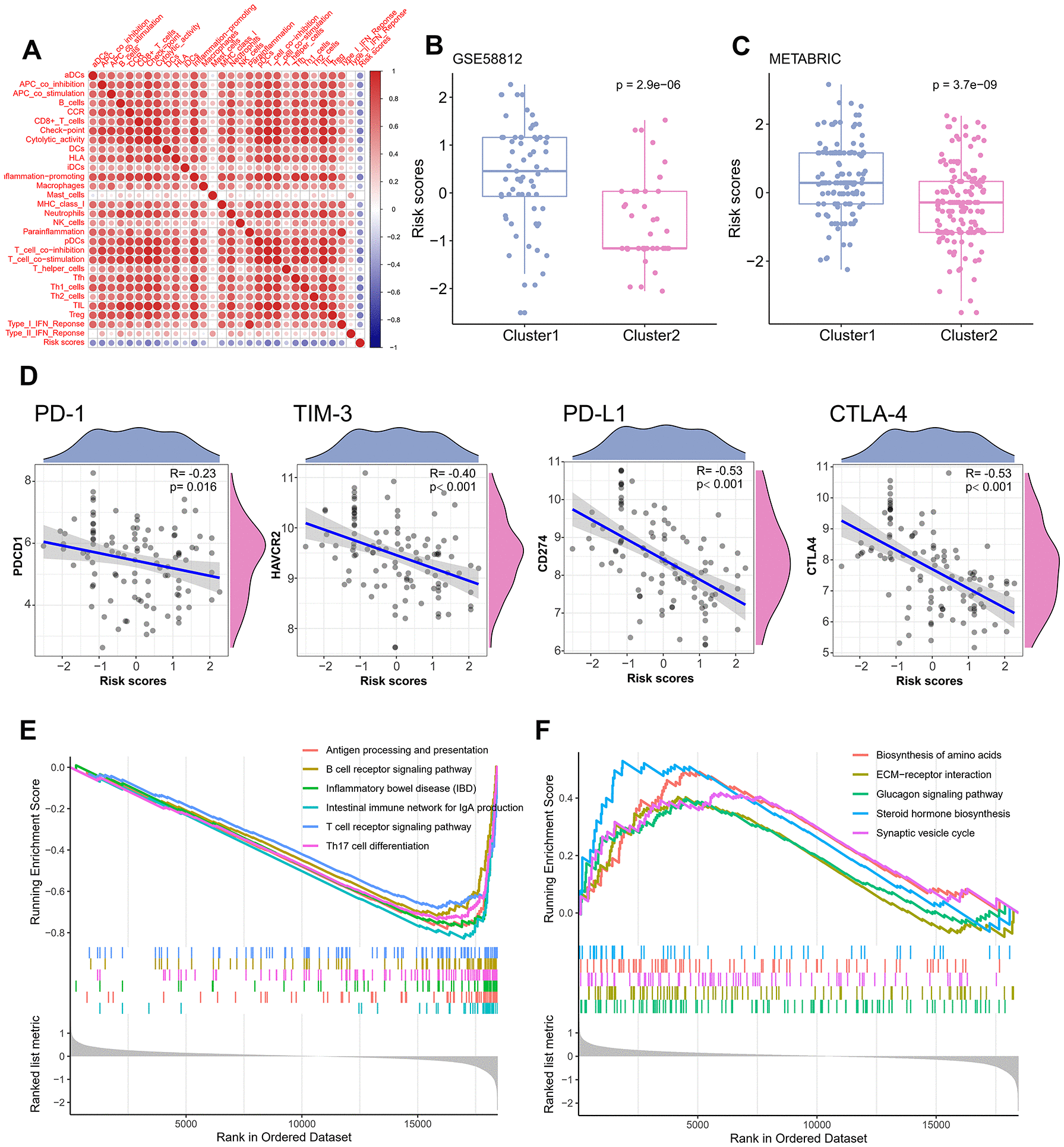

Correlation of TME signature with different TME clusters. (A) The correlation between TME signature and infiltrating immune cells. (B) Distribution of TME scores in different TME clusters of training set. (C) Distribution of TME scores in different TME clusters of the validation set. (D) The correlation between TME scores and immune checkpoint molecules. (E) Pathways enriched in low-risk group. (F) Pathways enriched in high-risk group.

Figure 5. Correlation of TME signature with different TME clusters. (A) The correlation between TME signature and infiltrating immune cells. (B) Distribution of TME scores in different TME clusters of training set. (C) Distribution of TME scores in different TME clusters of the validation set. (D) The correlation between TME scores and immune checkpoint molecules. (E) Pathways enriched in low-risk group. (F) Pathways enriched in high-risk group.
