Figure 3 — Prognostic potential of cardiac structural and functional parameters and N-terminal propeptide of type III procollagen in predicting cardiac fibrosis one year after myocardial infarction with preserved left ventricular ejection fraction

Research Paper|Volume 13, Issue 1|pp. 194–203

Prognostic potential of cardiac structural and functional parameters and N-terminal propeptide of type III procollagen in predicting cardiac fibrosis one year after myocardial infarction with preserved left ventricular ejection fraction

Back to articleFigure 3(3 of 5)

100%

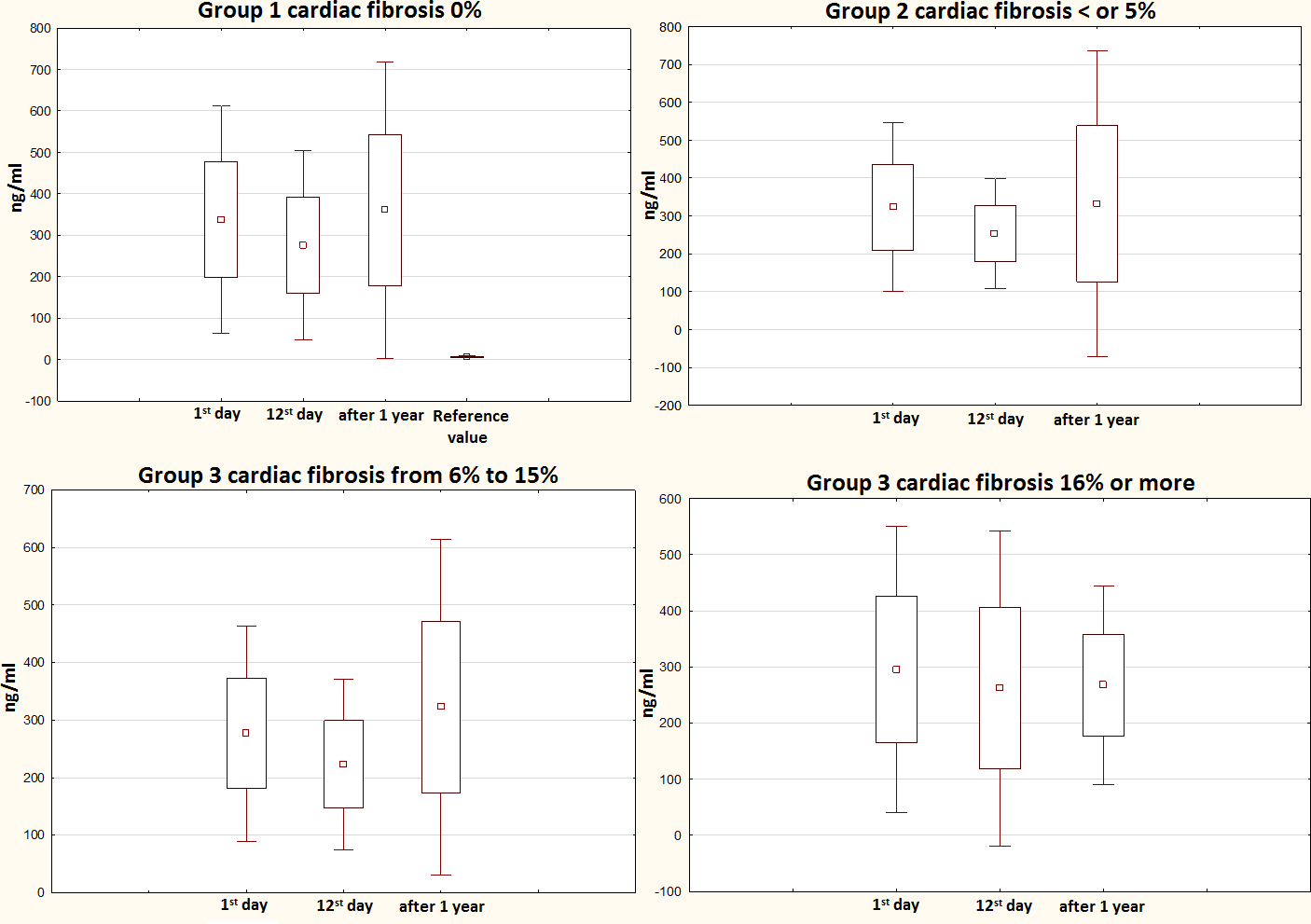

Figure 3.1-year progress in PIIINP levels in relation to the severity of cardiac fibrosis evaluated by MRI. PIIINP, N-terminal propeptide of Type III procollagen; MRI, magnetic resonance imaging.
