Research Paper Volume 13, Issue 5 pp 7397—7415
Prognostic significance of epigenetic regulatory gene expression in patients with non-small-cell lung cancer

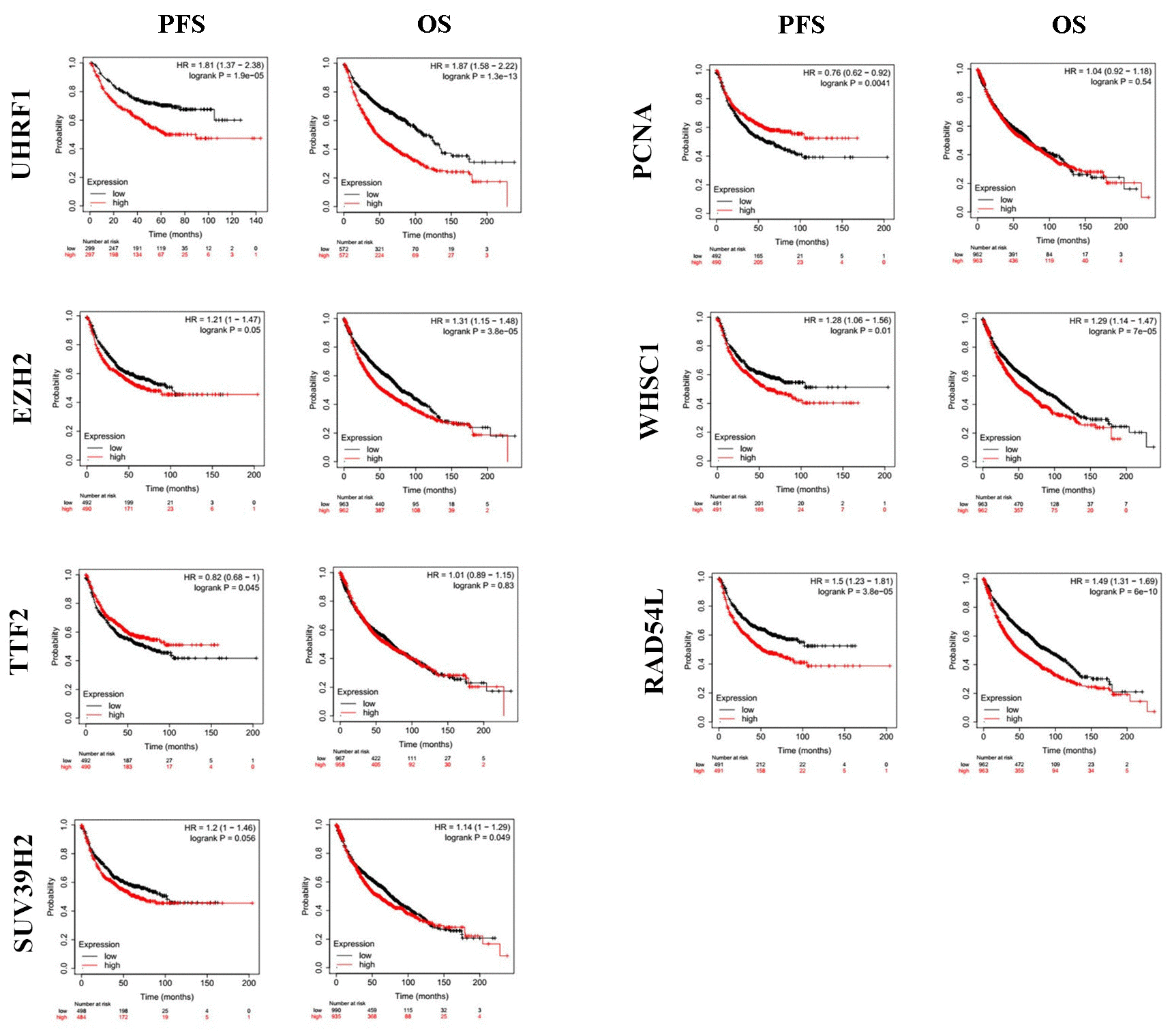

Figure 5. The prognostic value of epigenetic regulatory gene expression in NSCLC tissues. Kaplan-Meier survival curves and log-rank test shows that higher expression of UHRF1, EZH2, WHSC1 and RAD54L was significantly associated with worse progression-free survival (PFS) and overall survival (OS) of NSCLC patients.
