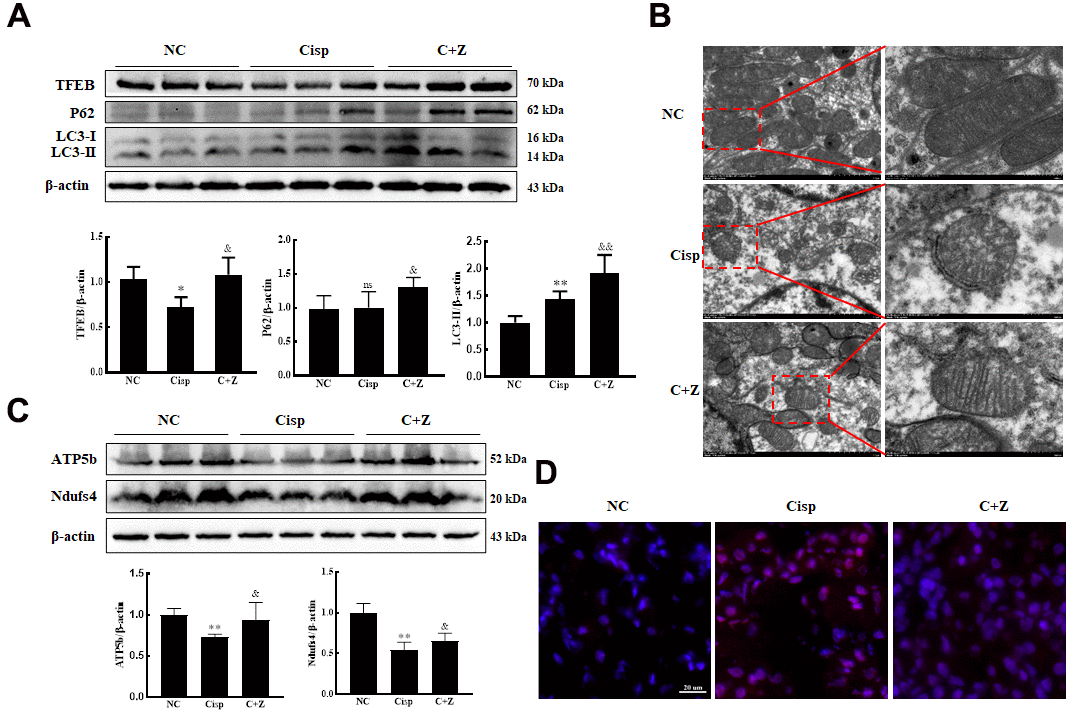

Figure 9. ZLN005 treatment alleviates renal injury in cisplatin-induced AKI mice via PGC-1a/TFEB pathway. The male C57BL/6 mice were injected once with cisplatin (16mg/kg, i.p.) to induce AKI, followed by ZLN005 treatment (15mg/kg/d, i.g.) for 4 days. (A) Western blots of TFEB, P62 and LC3 levels in kidney. (B) Representative TEM micrographs of mouse renal tubular epithelial cell mitochondria from each group. Scale bar, 2 μm (wireframe indicates the magnified image). (C) The expression of mitochondria-related proteins (ATP5b and Ndufs4) was measured by western blotting. (D) For the measurement of mitochondrial ROS (mtROS), frozen sections of freshly renal tissues were stained with Mito-SOX Red (2.5 μM) 15 min at 37° C and determined by confocal microscope. Scar bar: 20 μm. Data are provided as the mean ± SEM, n=3 independent experiments. *P < 0.05, **P < 0.01 vs. Con; &P < 0.05, &&P < 0.01 vs. Cisp. (NC, normal control; Cisp, cisplatin; C+Z, cisplatin + ZLN005).
