Research Paper Volume 13, Issue 10 pp 14088—14108

Expression and prognosis analyses of CASP1 in acute myeloid leukemia

CASP1 transcription in the leukemia subgroups was stratified according to FAB classification, ethnicity, gender, age, FLT3 mutation status (UALCAN) and PML/RAR-fusion status. (A) CASP1 mRNA expression with different FAB classification was shown in leukemia. (B) CASP1 mRNA expression with different ethnicity was shown in leukemia. (C–F) Boxplot showed relative expression of CASP1 in LAML in gender, age, FLTS mutation status, PML/RAR-fusion, respectively. Using t-test to assess the differences in gene expression levels between groups.

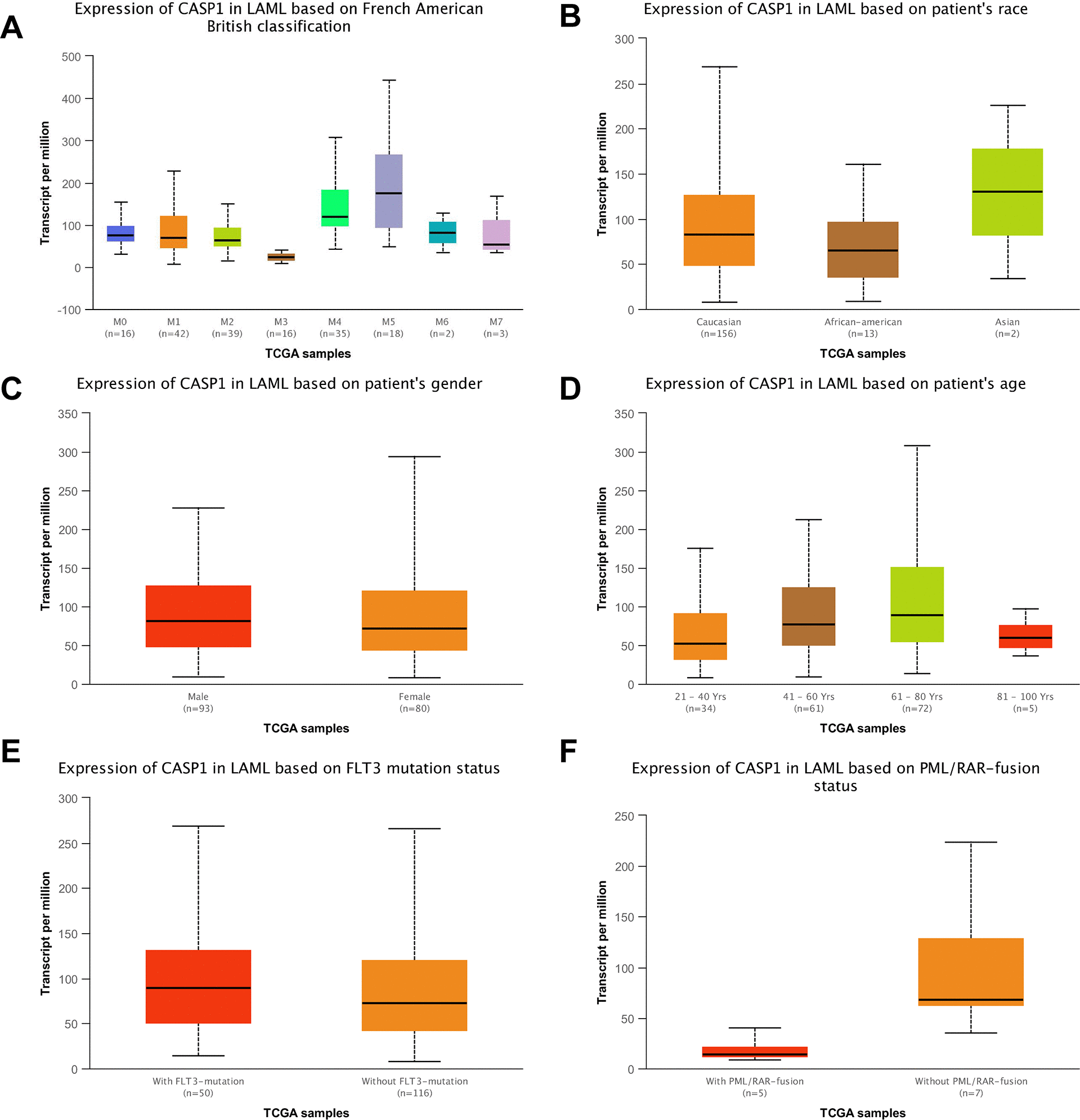

Figure 3. CASP1 transcription in the leukemia subgroups was stratified according to FAB classification, ethnicity, gender, age, FLT3 mutation status (UALCAN) and PML/RAR-fusion status. (A) CASP1 mRNA expression with different FAB classification was shown in leukemia. (B) CASP1 mRNA expression with different ethnicity was shown in leukemia. (CF) Boxplot showed relative expression of CASP1 in LAML in gender, age, FLTS mutation status, PML/RAR-fusion, respectively. Using t-test to assess the differences in gene expression levels between groups.
