Research Paper Volume 13, Issue 9 pp 12378—12394

Transcriptomic profile of the mice aging lung is associated with inflammation and apoptosis as important pathways

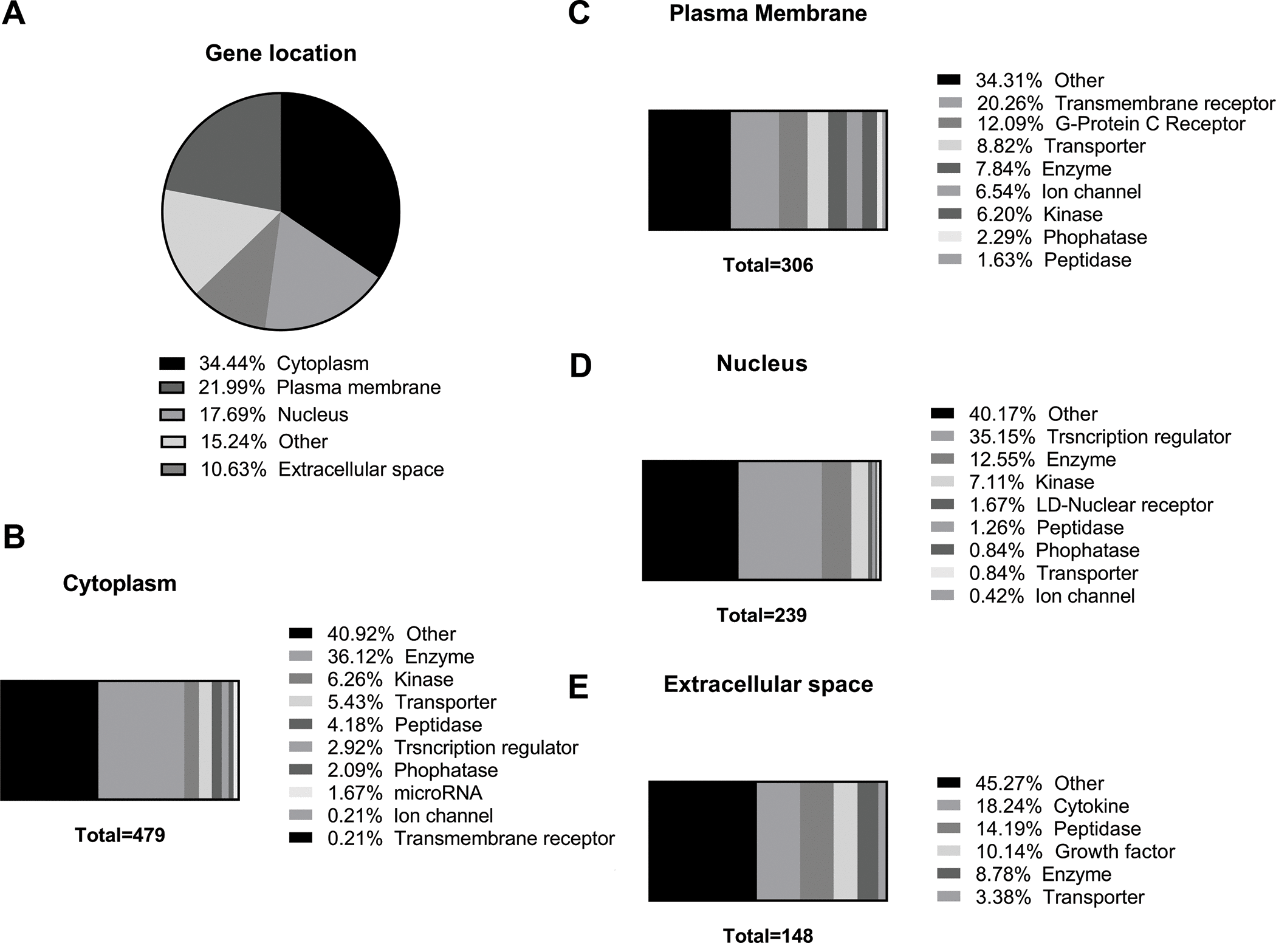

Figure 6. Identification of predicted cellular localization of dysregulated genes in old versus young mice lungs using Ingenuity Pathway Analysis™. (A) Pie graph of predicted cellular localization of the dysregulated 575 aged-changed genes, and their distinct molecular functions in (B) cytoplasm, (C) plasma membrane, (D) nucleus, and (E) extracellular space.
