Research Paper Volume 13, Issue 11 pp 14968—14988

Construction of a novel mRNA-miRNA-lncRNA network and identification of potential regulatory axis associated with prognosis in colorectal cancer liver metastases

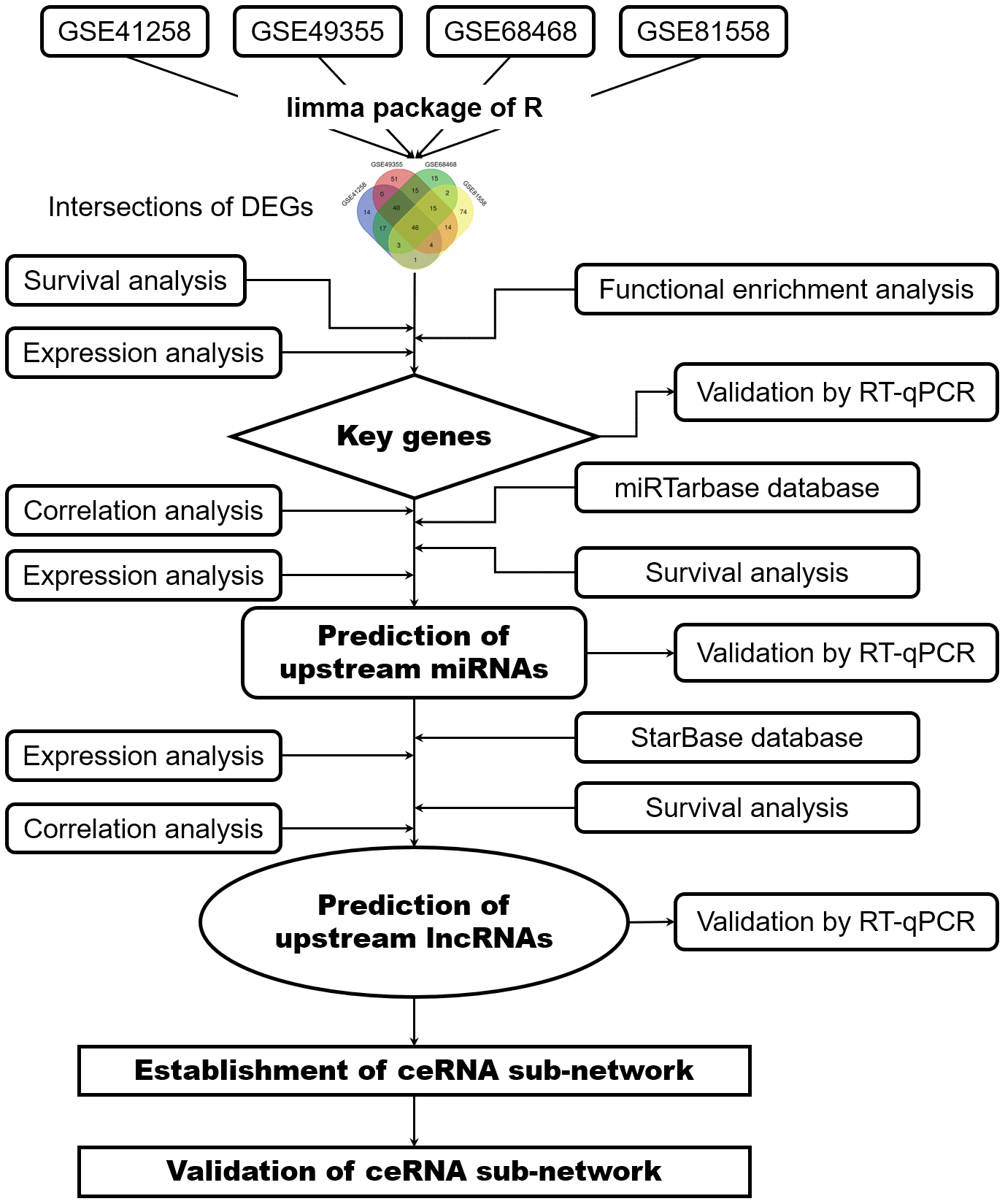

Flowchart of bioinformatics analysis. DEGs, differentially expressed genes; PPI network, protein-protein interaction network; miRNAs, microRNAs; lncRNAs, long non-coding RNAs; ceRNA, competing endogenous RNAs.

Figure 9. Flowchart of bioinformatics analysis. DEGs, differentially expressed genes; PPI network, protein-protein interaction network; miRNAs, microRNAs; lncRNAs, long non-coding RNAs; ceRNA, competing endogenous RNAs.
