Research Paper Volume 13, Issue 19 pp 22912—22933

Significance of CD8+ T cell infiltration-related biomarkers and the corresponding prediction model for the prognosis of kidney renal clear cell carcinoma

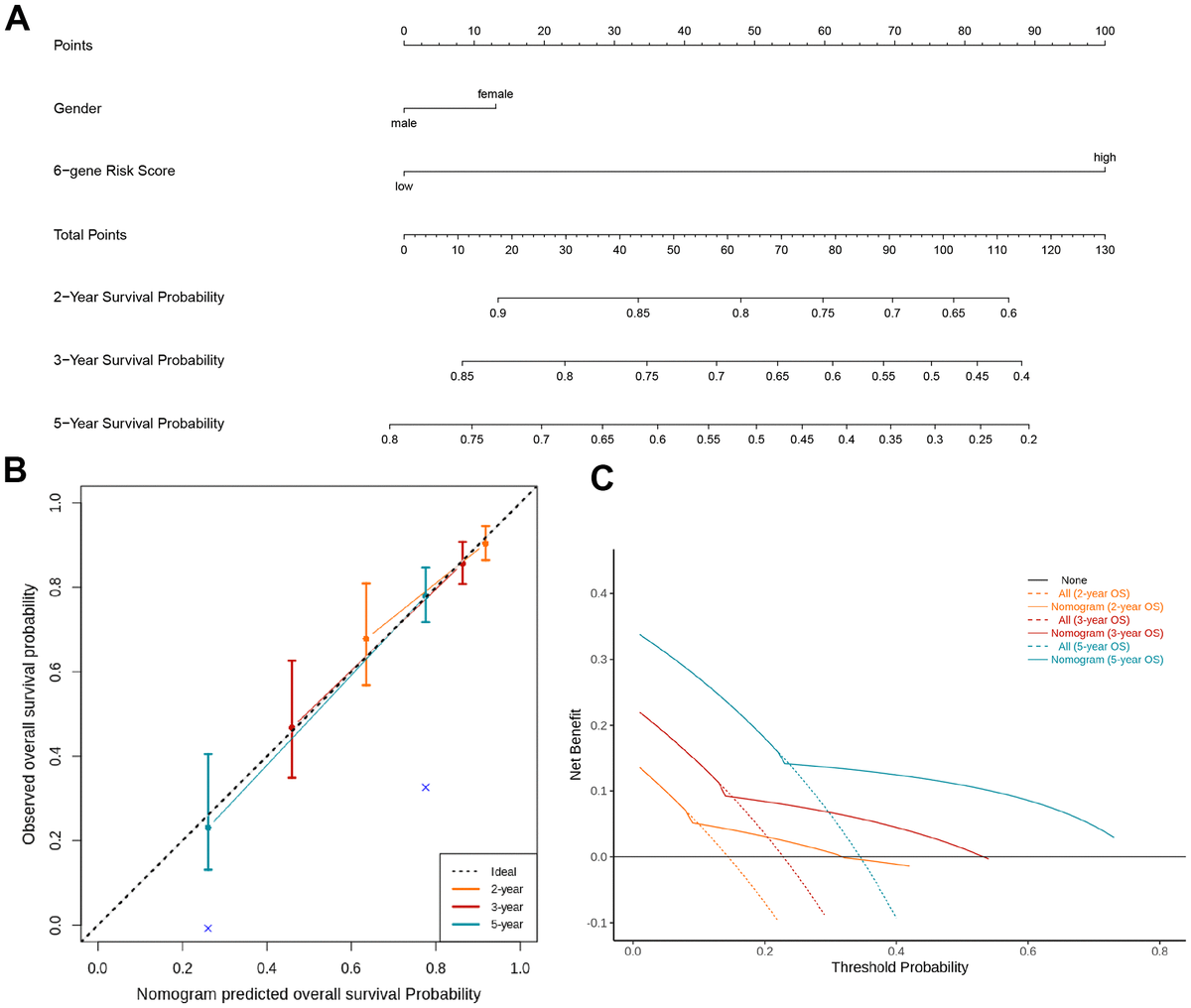

Nomogram and decision analysis curve for predicting the overall survival of KIRC patients. (A) Combining the TIL-CD8Sig score of the TCGA-KIRC cohort data and clinical pathological risk factors to predict the 2-year, 3-year and 5-year overall survival probability. (B) According to the consistency of the prediction and observation results, the correction map of the nomogram was drawn. The performance of the nomogram was shown by the chart relative to the dotted line, which the dotted line indicated a perfect forecast. (C) Nomograph's decision analysis curve. None: Hypothetical events will not occur in any patients (horizontal solid line); All: Hypothetical events will occur in all patients (dotted line), the expected net income based on the nomogram prediction under different threshold probabilities was displayed by it.

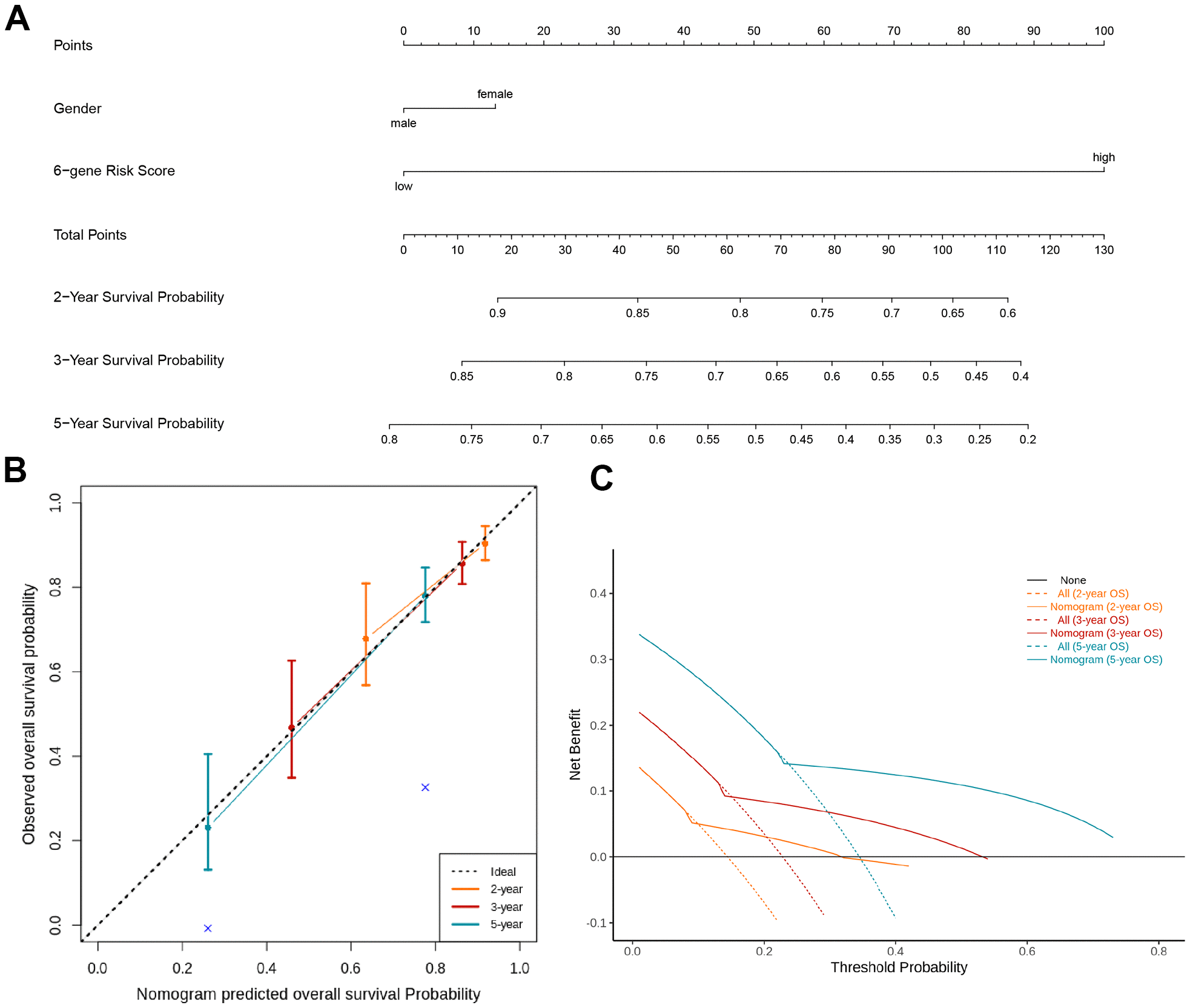

Figure 5. Nomogram and decision analysis curve for predicting the overall survival of KIRC patients. (A) Combining the TIL-CD8Sig score of the TCGA-KIRC cohort data and clinical pathological risk factors to predict the 2-year, 3-year and 5-year overall survival probability. (B) According to the consistency of the prediction and observation results, the correction map of the nomogram was drawn. The performance of the nomogram was shown by the chart relative to the dotted line, which the dotted line indicated a perfect forecast. (C) Nomograph's decision analysis curve. None: Hypothetical events will not occur in any patients (horizontal solid line); All: Hypothetical events will occur in all patients (dotted line), the expected net income based on the nomogram prediction under different threshold probabilities was displayed by it.
