Research Paper Volume 14, Issue 18 pp 7416—7442

MND1 functions as a potential prognostic biomarker associated with cell cycle and immune infiltration in kidney renal clear cell carcinoma

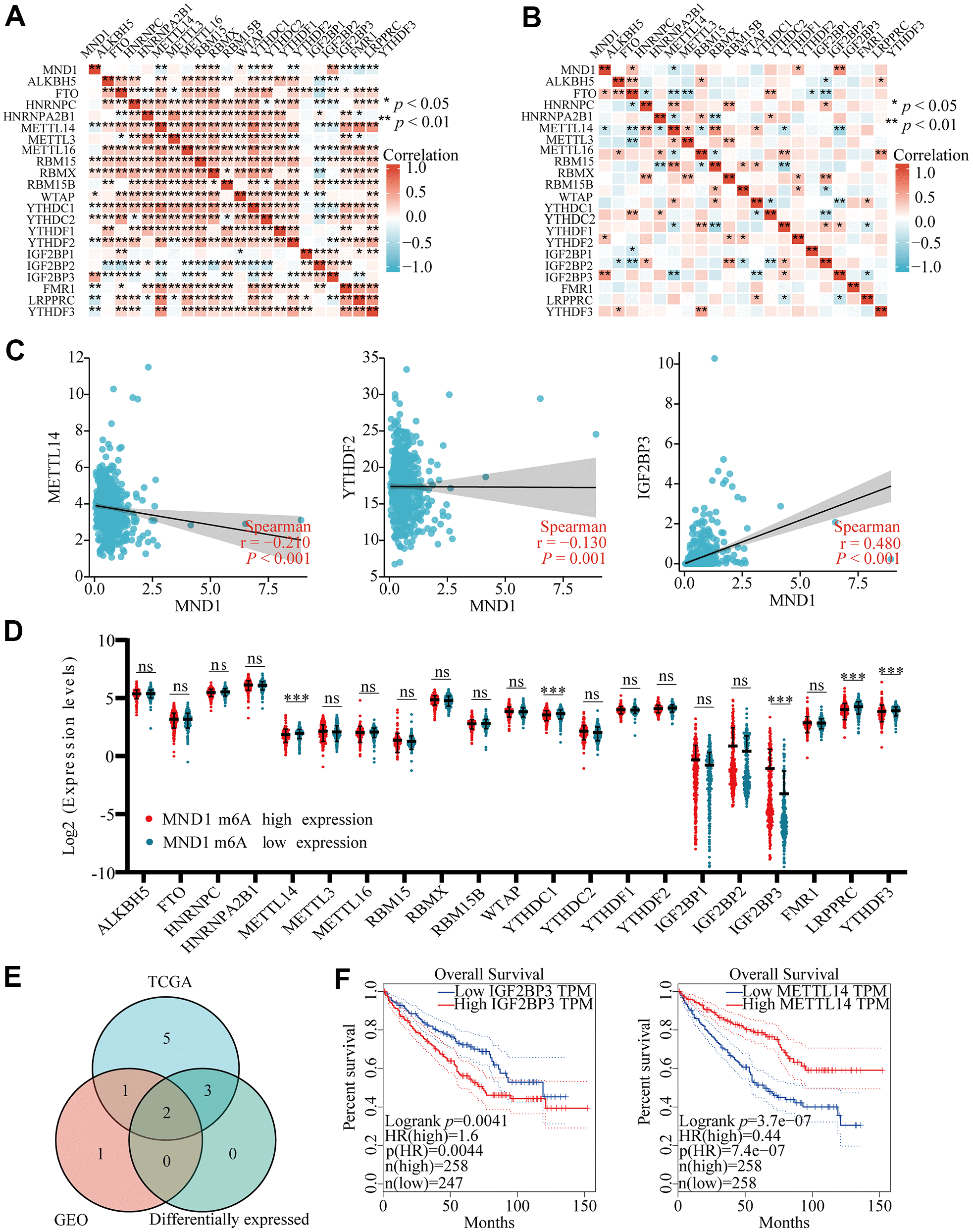

Figure 10. Correlations of MND1 expression with m6A related genes in KIRC. (A B) TCGA KIRC data sets and GSE105288 data sets analyzed the correlation between the MND1 and the m6A related genes expression in KIRC. (C) Draw a scatter plot to show the correlation between the MND1 and the glycolysis related genes expression, include METTL14, YTHDC1, and IGF2BP3. (***p<0.001). (D) The differential expression of glycolysis related genes between high and low MND1 expression groups in KIRC tumor samples. (E) Venn diagram showed both expression correlation and differential expression of genes, including ENO1, HK2, LDHA, LDHB, PGK1 and SLC2A1. (F) Kaplan-Meier curve of IGF2BP3 and METTL14.
