Research Paper Volume 14, Issue 18 pp 7470—7504

Identification of immune and stromal cell infiltration-related gene signature for prognosis prediction in acute lymphoblastic leukemia

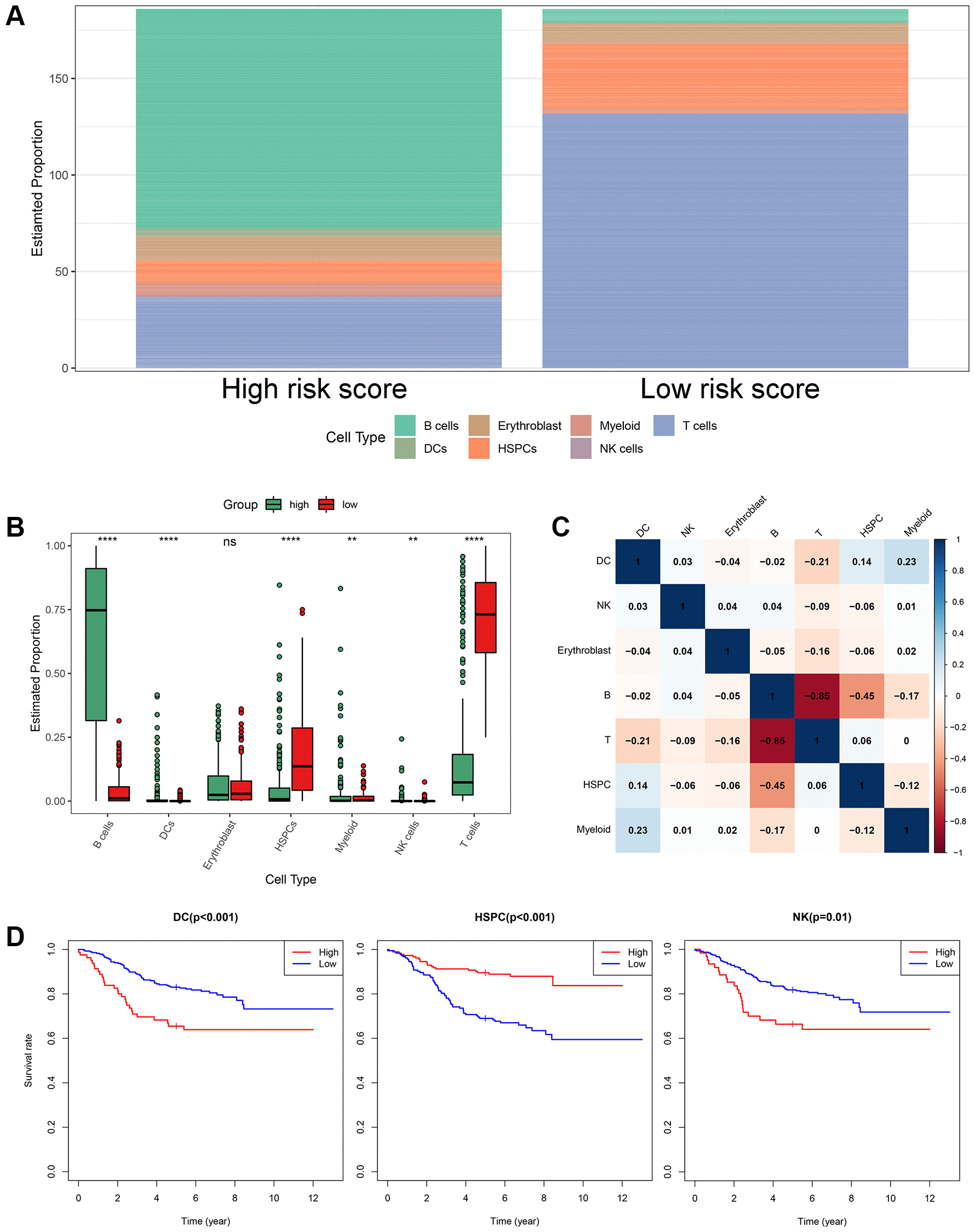

Figure 9. The landscape of immune cell infiltration between the high- and low-risk groups. (A) Proportion of cell type of the low- and high-risk groups in bulk RNA-seq samples. (B) Differential immune cell infiltrates between the high- and low-risk groups. (C) Correlation matrix of the relationship between the expression levels of the seven ISCIRGs and differential immune infiltration levels. (D) KM survival curves for patients with higher and lower proportions of specific cell.
