Research Paper Volume 14, Issue 20 pp 8411—8436

ZNF320 is a hypomethylated prognostic biomarker involved in immune infiltration of hepatocellular carcinoma and associated with cell cycle

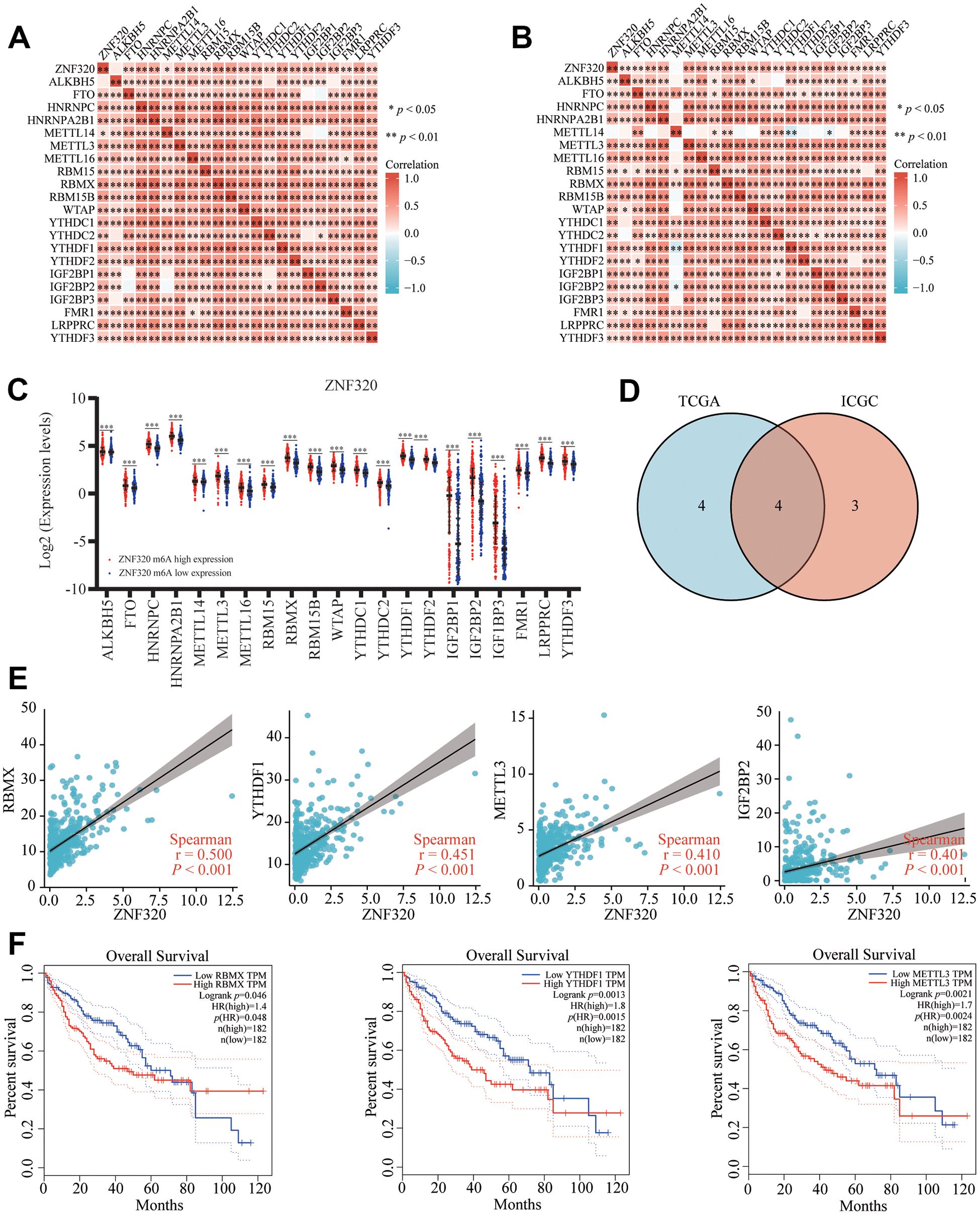

Figure 11. Correlation of ZNF320 expression with m6A related genes in HCC. (A, B) TCGA HCC data set and ICGC data set analyzed the correlation between the ZNF320 and m6A related genes expression in HCC. (C) The differential expression of glycolysis related genes between high and low ZNF320 expression groups in HCC tumor samples. (D) Venn diagram showed correlation coefficient greater than 0.39 with ZNF320 in two databases, including RBMX, YTHDF1, METTL3, IGF2BP2. (E) Draw a scatter plot to show the correlation between the ZNF320 and glycolysis related genes expression, including RBMX, YTHDF1, METTL3, IGF2BP2 (F) Kaplan-Meier curve of RBMX, YTHDF1, METTL3 *P < 0.05; *P < 0.05.
