Research Paper Volume 15, Issue 4 pp 1004—1024
Systematic investigation of the mechanism of herbal medicines for the treatment of prostate cancer

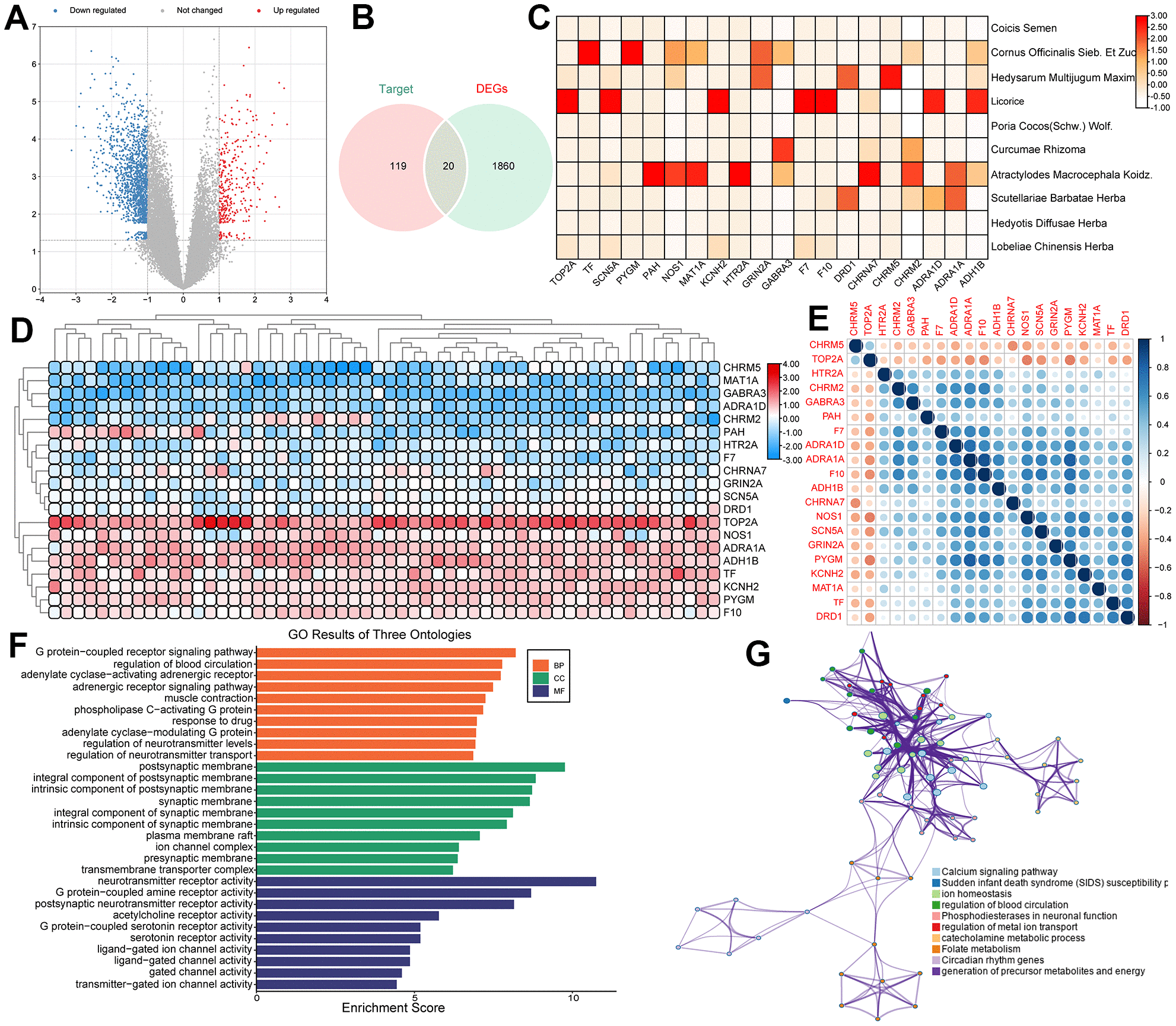

Figure 4. (A) The volcano plots for the 1880 DEGs in the GSE134073 dataset. (B) The overlapped genes between DEGs in PCa and the target genes of the PCa-related herbs. (C) The correlation between overlapped genes and drugs. (D) Heatmaps of significantly differentially expressed genes based on high Gleason score and low Gleason score groups. (E) A heatmap of the correlation of overlapped genes. (F) Gene Ontology (GO) enrichment of overlapped genes. (G) Visualized functional enrichment and gene interaction analysis results.
