Research Paper Volume 15, Issue 12 pp 5751—5774

Construction of a T-cell exhaustion-related gene signature for predicting prognosis and immune response in hepatocellular carcinoma

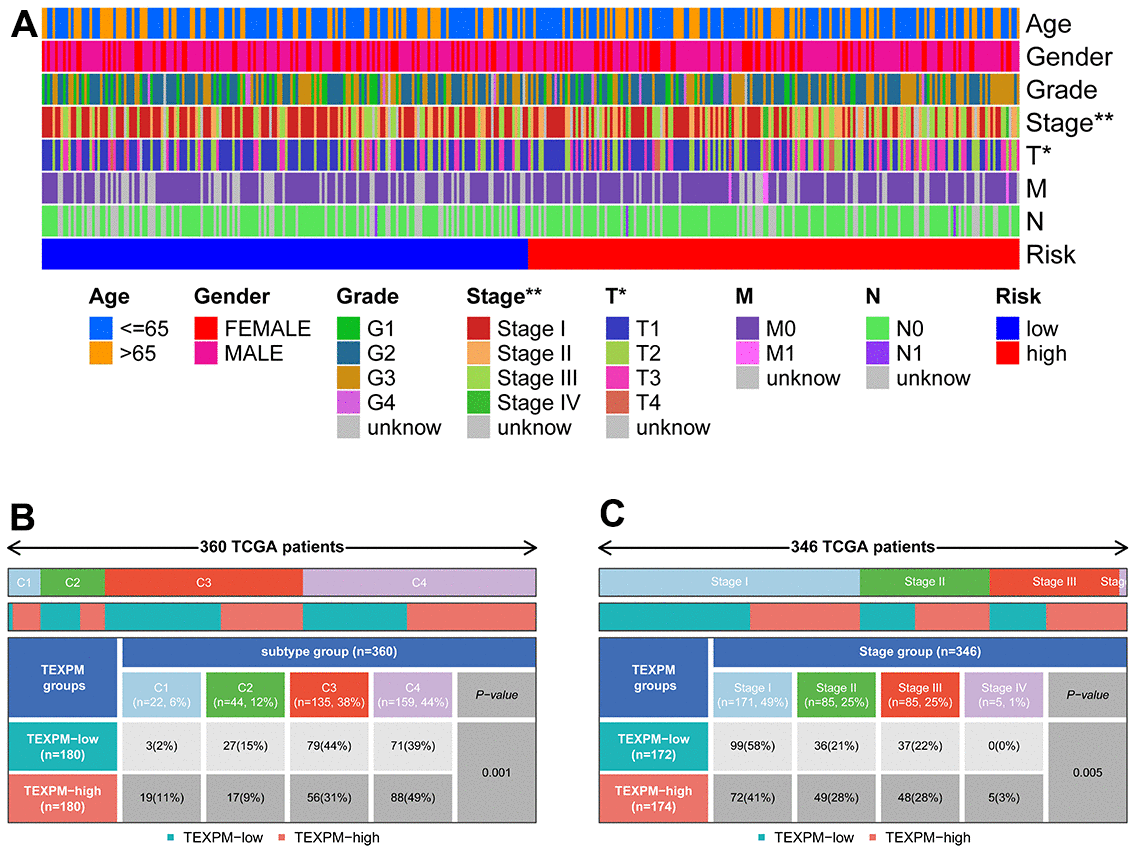

Figure 7. Relationship between TEXPM and clinical subtypes. (A) The TEXPM groups and clinical subtypes for HCC patients in the TCGA cohort. Age, gender, tumor grade, and TNM stage are shown as patient annotations. (B) Heat map showing the distribution of immune grade (C1-4) between high- and low-CDIGPM groups. (C) Heat map showing the distribution of HCC TNM stages (stage 0-IV) between high- and low- TEXPM groups. (***p < 0.001).
