Research Paper Volume 15, Issue 21 pp 12413—12450

Construction and validation of a novel angiogenesis pattern to predict prognosis and immunotherapy efficacy in colorectal cancer

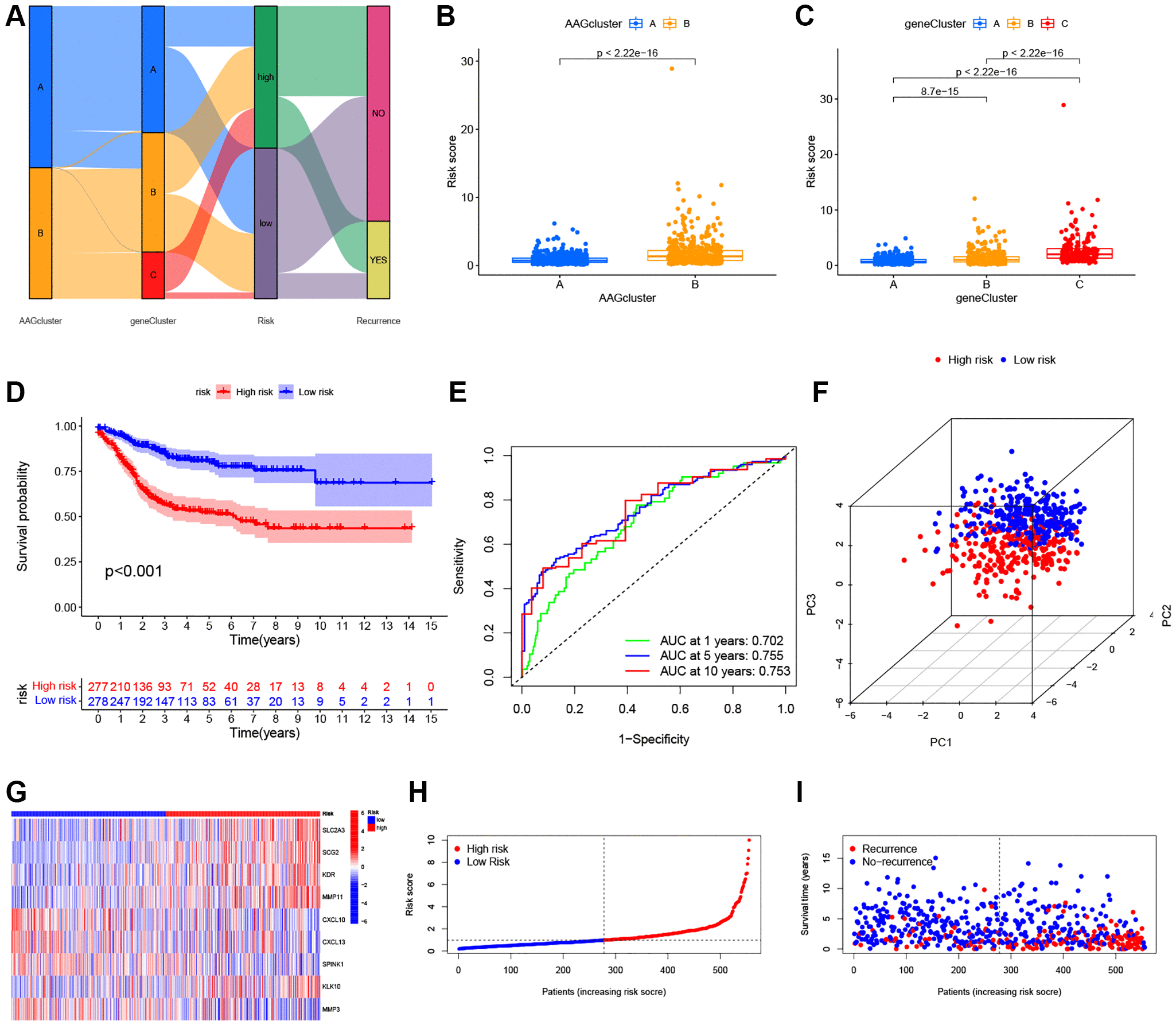

Figure 5. Construction of the ARG_score in the training set. (A) Alluvial diagram of subtype distributions in groups with a different ARG_score and prognosis. (B) Differences in ARG_score between the two ARGs clusters. (C) Differences in ARG_score among the three gene subtypes. (D) Kaplan–Meier analysis of the RFS between the low- and high-ARG_score groups. (E) ROC curves to predict the sensitivity and specificity of 1-, 5-, and 10-year survival according to the ARG_score. (F) PCA analysis based on the prognostic model. (GI) The distribution of the risk score, survival time, and survival status, and the heatmap of the 9 selected prognostic genes between the high- and low-ARG_score groups, respectively.
