Research Paper Volume 16, Issue 3 pp 2542—2562

Identification and validation of an H2AZ1-based index model: a novel prognostic tool for hepatocellular carcinoma

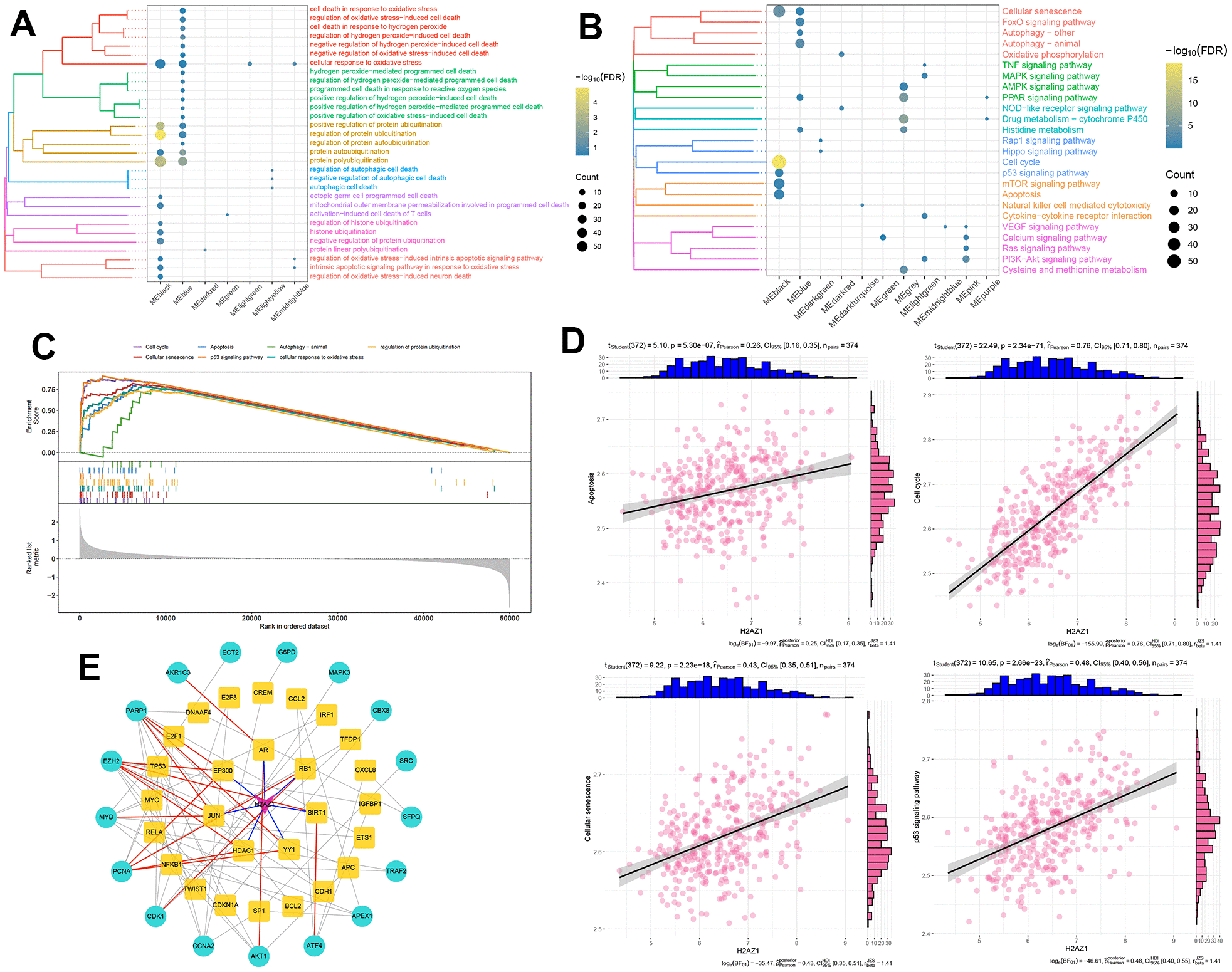

Figure 3. Biological functions and signaling pathways involved in the significant regulatory modules of H2AZ1. (A) Clustered bubble plot showing biological functions significantly regulated by H2AZ1. (B) Clustered bubble plot showing signaling pathways significantly regulated by H2AZ1. (C) Gene set enrichment analysis map showing signaling pathways significantly activated by H2AZ1. (D) Correlation between H2AZ1 expression and apoptosis, cell cycle, cell senescence, and the p53 signaling pathway gene set. (E) Network of H2AZ1 regulating cellular response to oxidative stress through transcription factors.
