Molecular characteristics and prognostic significances of lysosomal-dependent cell death in kidney renal clear cell carcinoma

Data collection and processing

A total of 255 LDCD-RGs were downloaded from the Genecard website (https://www.genecards.org/) using the search term “lysosomal-dependent cell death” (Supplementary Table 1). Transcriptional and clinical prognostic data for TCGA-KIRC were downloaded and organized from the TCGA official website, and additional samples were added from the ArrayExpress database to augment the KIRC dataset. After Log transformation and SVA batch processing [16, 17], a total of 640 KIRC transcriptional profiles (TCGA-KIRC cohort + E-MTAB-1980 cohort) were obtained, of which 627 had complete follow-up information for prognosis-related analysis in this study. Pan-cancer genomic and transcriptomic data were also downloaded from the TCGA database for comprehensive characterization of LDCD genes across various cancers, and corresponding follow-up information was collected for pan-cancer prognostic analysis, following a methodology similar to previous reports. Additionally, single-cell RNA sequencing (scRNA-seq) data was acquired from GSE156632 dataset [18], which involved seven KIRC samples and five adjacent normal samples.

scRNA-seq analysis

The analysis of single-cell data was primarily conducted using the Seurat package. The CreateSeuratObject function was employed to read the GSE156632 dataset, with the following parameters set: min.cells = 3, min.features = 200, nCount_RNA ≥1000, nFeature_RNA ≥200, nFeature_RNA ≤6000, percent.mt ≤20. Classic single-cell data analysis procedures and multiple algorithmic gene set scoring predictions were utilized to investigate LDCD features at the single-cell level. The following functions were employed for single-cell data cleaning: NormalizeData, FindVariableFeatures, ScaleData, RunPCA, RunHarmony, JackStraw, ScoreJackStraw, FindNeighbors, FindAllMarkers, RunTSNE. Cell annotations were based on the following criteria: Epithelial cell markers included KRT8, KRT18, EPCAM; Myeloid cell markers included CD14, CD68; Fibroblast cell markers included TAGLN, RGS5, MYL9, ACTA2; T/NK cell markers included CD2, CD3D, CD3E, CD3G, NKG7, GNLY; Endothelial cell markers included ENG, PECAM1, VWF, CDH5; B cell markers included MS4A1, CD79A, CD79B. Five single-cell gene set scoring prediction algorithms were utilized: Add, AUCell, UCell, singscore, and GSVA. Additionally, a novel custom single-cell gene set scoring prediction algorithm was developed, which involved scaling and 0-1 normalization of the results from the aforementioned five algorithms (scoring = (x − min(x))/(max(x) − min(x))), followed by summation. This approach effectively eliminated the impact of non-biological factors. Visualization of single-cell data was primarily achieved through the ggviolin and FeaturePlot functions.

Identification of prognosis-related LDCD genes in the KIRC cohort

Firstly, the expression profiles of 255 LDCD genes were extracted from 627 KIRC samples with complete prognostic information. These expression profiles were integrated with patients’ survival time and status data, and prognosis-related LDCD genes were identified using univariate Cox regression analysis with P-values adjusted using the Benjamini-Hochberg method (P < 0.05).

Molecular subtyping of KIRC based on prognosis-related LDCD genes

To define the expression patterns of LDCD genes in KIRC, a method similar to previous research was used by comparing gene expression characteristics between tumor tissues and adjacent normal tissues [19]. As the E-MTAB-1980 cohort lacked adjacent normal tissues, the analysis for molecular subtyping was performed using only the TCGA-KIRC cohort. Unsupervised clustering using the “hclust” function and GSVA scoring using the “gsva” function were employed to identify molecular subtypes. The differences in LDCD scores among different molecular subtypes were assessed using the Kruskal-Wallis test. Survival curves comparing the prognostic differences among molecular subtypes were plotted using the survival and survminer packages. The ggplot2 and ggpubr software packages were used to analyze whether the LDCD-RGs scores were statistically different among the 3 subgroups.

Exploration of intrinsic molecular characteristics and therapeutic sensitivity of different LDCD molecular subtypes

Classic signaling pathways related to metabolism, immunity, and cell death were collected and compiled from MsigDb and previous literature reports [20]. GSVA was used to calculate pathway scores for each tumor sample [21], and the Kruskal-Wallis test was employed to compare clinical outcomes among different LDCD molecular subtypes. Furthermore, the immune microenvironment of different LDCD molecular subtypes was explored through analysis of immune cell infiltration and immune checkpoint expression levels. The TIMER2.0 platform [22] was utilized to predict immune cell infiltration abundance in the TCGA-KIRC cohort. Heatmaps were generated using the pheatmap and limma packages to visualize immune profiles associated with LDCD molecular subtypes, and statistical differences were evaluated using the Kruskal-Wallis test. The expression levels of recognized immune checkpoints [23] were also compared among different LDCD molecular subtypes.

Investigation of the correlation between LDCD-RGs and immune cell infiltration and immune function in KIRC

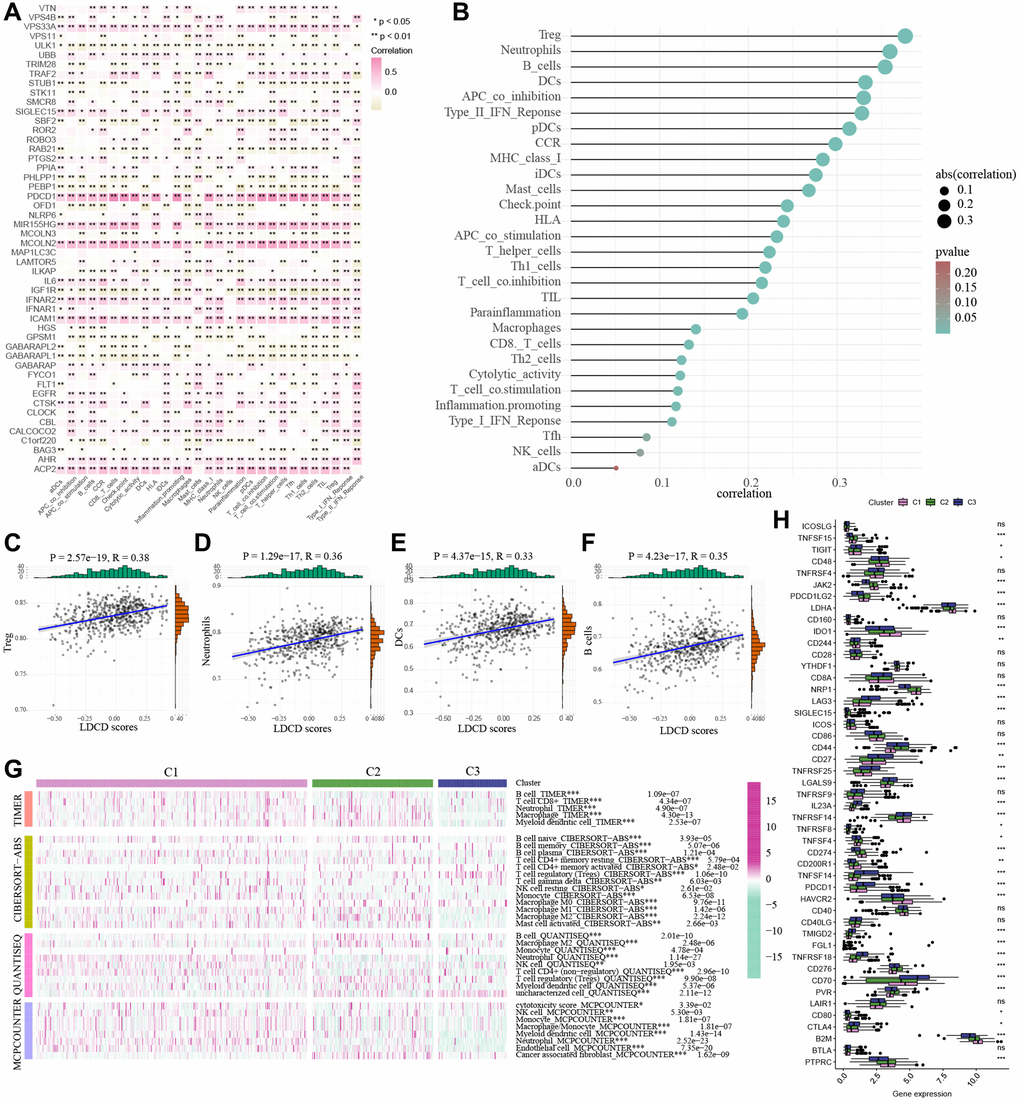

GSVA was employed to predict the immune cell infiltration and immune-related functions for each KIRC patient. Spearman’s correlation was used to analyze the association between LDCD gene expression and immune cell infiltration or immune function. Correlation heatmaps were plotted using the ggplot2 package, with “^*” indicating P < 0.05 and “^**” indicating P < 0.01. Bar plots and scatter plots were created using the ggplot2 and ggstatsplot packages to visualize the correlation between LDCD gene set scores and immune cell infiltration or immune function.

Development and validation of an LDCD-related tumor prognostic model

An LDCD-related tumor prognostic model was developed based on prognosis-related LDCD genes. The TCGA-KIRC cohort was randomly divided into training and internal validation sets at an approximate ratio of 1:1 (264 tumor samples in the training set and 262 tumor samples in the internal validation set 1). All TCGA-KIRC samples (526 tumor samples) were used as internal validation set 2, and the E-MATB-1980 cohort (101 tumor samples) served as the external validation set. The training set was used for LASSO-multivariate Cox regression to construct the prognostic model. Each tumor patient was assigned a riskscore value, predicted using the “predict” function. Based on the median riskscore value in the training set, patients were categorized into high-risk and low-risk groups. Similar approaches were applied to internal validation set 1, internal validation set 2, and external validation set. To assess the clinical significance of the model, survival curves were plotted using the survival and survminer packages. ROC curves were generated, and corresponding AUC values were calculated using the survival ROC package to determine the prognostic discrimination of the survival curves. Immune cell infiltration in each sample was evaluated based on the TIMER2.0 platform, and differences in immune cell infiltration between high-risk and low-risk groups were compared. Finally, we utilized the random forest algorithm to calculate the prognostic contribution importance of each model gene for KIRC disease. We combined this analysis with information from the BEST website (https://rookieutopia.com/app_direct/BEST/) to explore the clinical relevance of the genes, emphasizing their central role. HPA website was utilized to explore the protein level of hub gene in KIRC.

Availability of data and materials

The datasets analyzed in this work may be found in the Supplementary Materials or contact with the corresponding author.

scRNA analysis

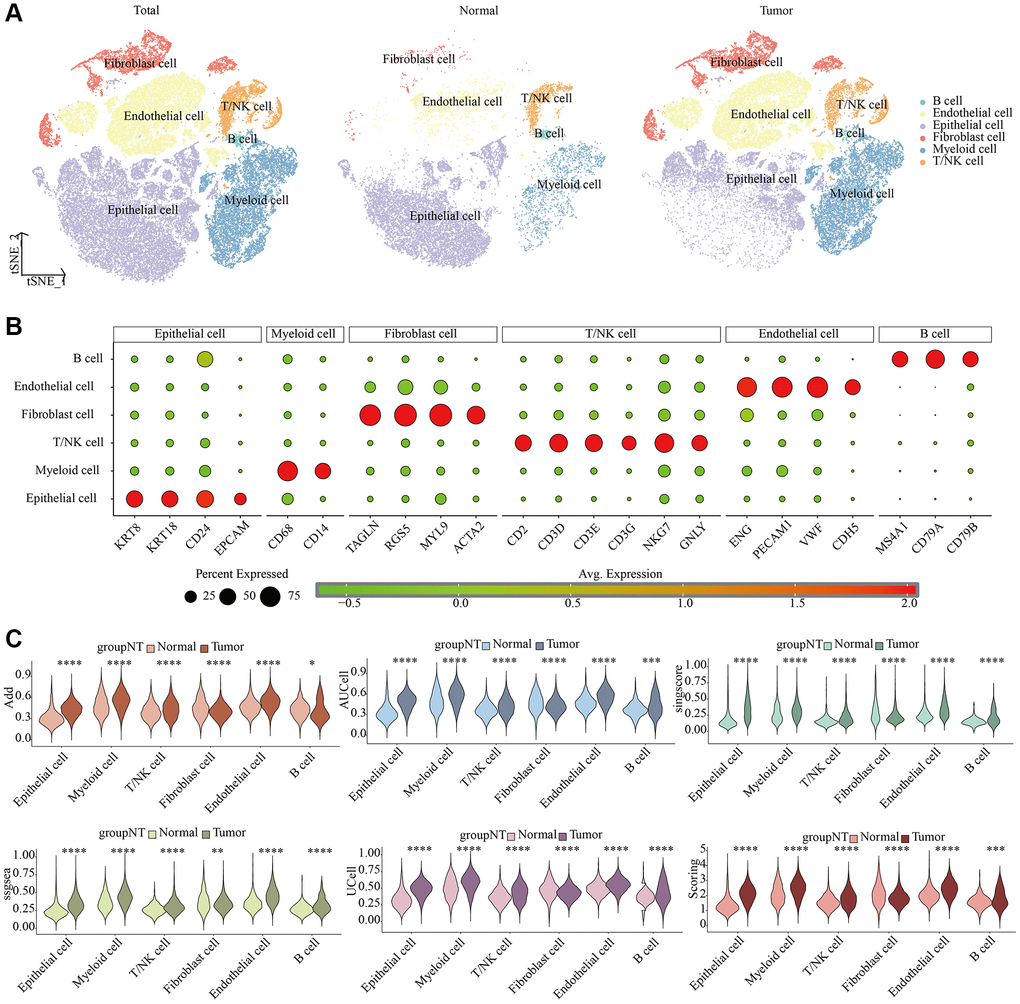

We depicted single-cell dimensionality reduction maps for both KIRC and adjacent normal samples, identifying epithelial cells, endothelial cells, fibroblasts, and some immune cell types (Figure 1A). These cell types were annotated based on classical cell markers, as detailed in Figure 1B. To comprehensively reveal the LDCD signal features of different cell types in KIRC, we employed six evaluation methods for quantitative analysis. As illustrated in Figure 1C and Supplementary Figure 1, the results consistently indicated that cells in the tumor tissue exhibited a relatively high level of LDCD signal intensity, regardless of the algorithm used.

Pan-cancer characteristics of LDCD-RGs

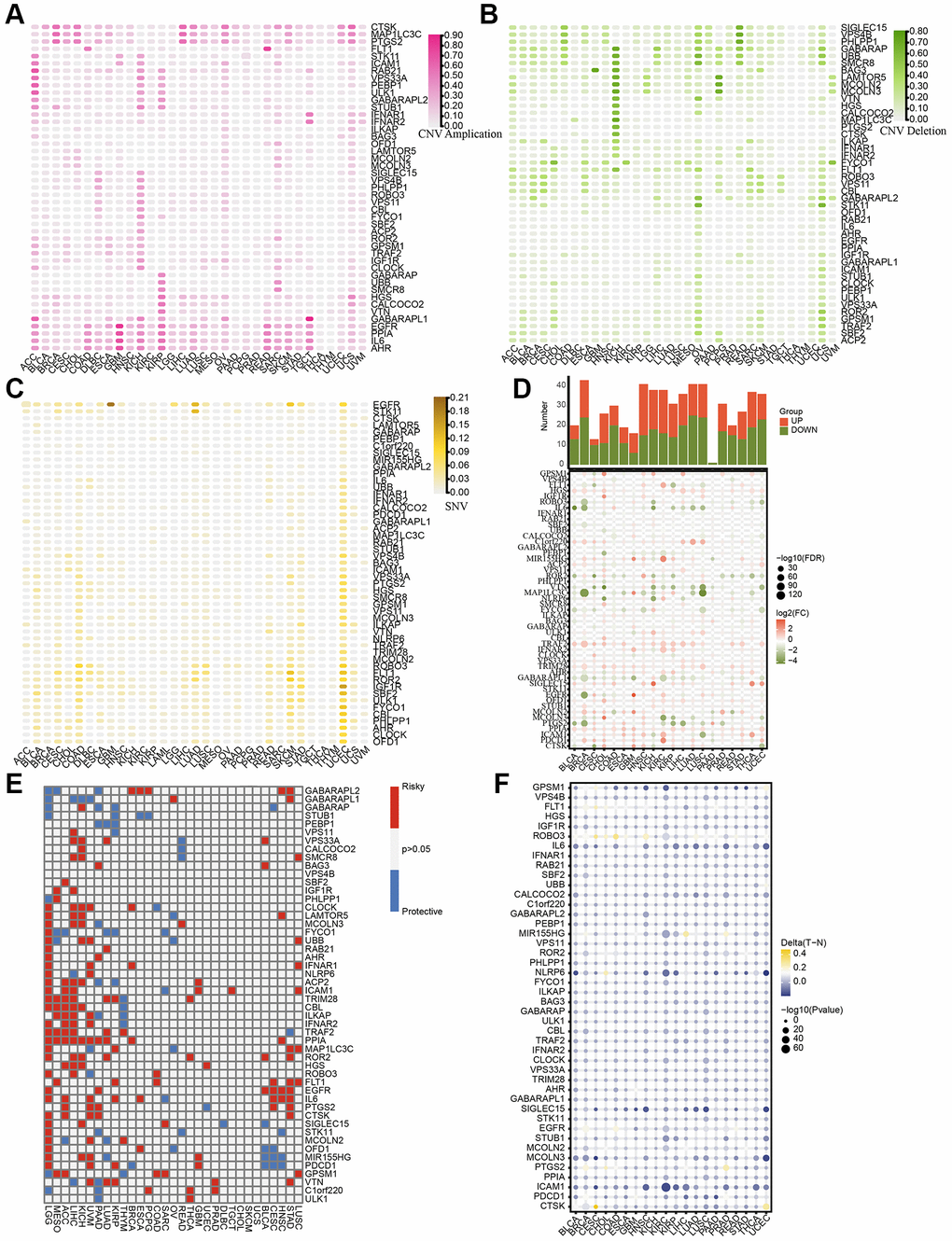

We initially identified a set of 50 LDCD-RGs linked to the prognosis of KIRC through the application of univariate Cox regression analysis (Supplementary Table 2). In order to comprehensively depict the pan-cancer characteristics of above 50 LDCD-RGs, we conducted genomic and transcriptomic-level analyses using the TCGA pan-cancer cohort. A meticulous inquiry encompassing copy number variation (CNV), stable nuclear variants (SNV), mRNA expression quantification, methylation patterns, along with their nascent functional implications for LDCD-RGs was undertaken. Depiction of CNV mutations within the cohort of LDCD-RGs manifest in neoplastic entities was documented (Figure 2A, 2B), thereby illustrating variances in CNV frequencies across distinct malignancy subtypes. Remarkably heightened frequencies of gain-of-function CNV mutations were discerned within the ambit of ACC, KICH, and KIRP for a majority of LDCD-RGs. It merited emphasis that conspicuous amplification-centric CNV mutation frequencies were conspicuously noted for key genes including EGFR, PPIA, IL6, and AHR, spanning various malignancy categories. Additionally, outcomes pertaining to CNV-associated loss frequencies unveiled significantly augmented rates of loss-of-function mutations amongst LDCD-RGs in the purview of KICH, OV, UCS, PCPG, and READ, with KICH assuming pronounced prominence relative to other gene counterparts. It is worth noting, however, that a predominant proportion of LDCD-RGs exhibited subdued frequencies of loss-of-function mutations across over fifty percent of the cancer classifications. Moreover, an observation of heightened SNV mutation instances within human solid tumors was ascertained particularly within the context of UCEC. Furthermore, the predilection toward low-frequency SNV mutations was a prevailing trend amidst the majority of LDCD-RGs (Figure 2C). Recognizing the inherent pertinence of aberrant gene expression to oncogenesis, we proffered a depiction of mRNA expression magnitudes for LDCD-RGs across a spectrum of human tumor types (Figure 2D). Evident by comparison to their cognate normal tissue analogs, discernible upregulation was registered across a slew of tumor tissues for PPIA, TRAF2, TRIM28, and HGS. Conversely, a pervasive decrement was witnessed in the expression of GABARAPL1, MAP1LC3C, VTN, and IL6 in nearly all tumor specimens relative to their paired normal tissue counterparts. This insight duly impelled an exploration into the nexus between gene expression levels and the temporal trajectory of patient survival in the throes of tumorigenicity, thereby substantiating the multifaceted roles of LDCD-RGs as both instigators of vulnerability and sentinels of safeguarding in disparate solid tumor contexts (Figure 2E). On a broader note, the tenor of risk was notably orchestrated by the majority of LDCD-RGs, a predilection accentuated particularly within LGG, MESO, ACC, KICH, and UVM. Contemplating the canonical role of aberrant gene methylation as a recurrent epigenetic hallmark in tumorigenesis, typified by overarching genome-wide hypomethylation tendencies within oncogenes juxtaposed against aberrant CpG island-specific hypermethylation proclivities within tumor suppressor genes, we embarked upon an inquisition into the methylation landscape governing LDCD-RGs within human neoplasms (Figure 2F). The ensuing revelations underscored the pervasiveness of hypomethylation across nearly all LDCD-RGs in the context of human cancers, evincing comprehensive hypomethylated states within the gamut of LDCD-RGs specifically within the precincts of KIRC.

Patients with KIRC were grouped based on LDCD-RGs expression levels

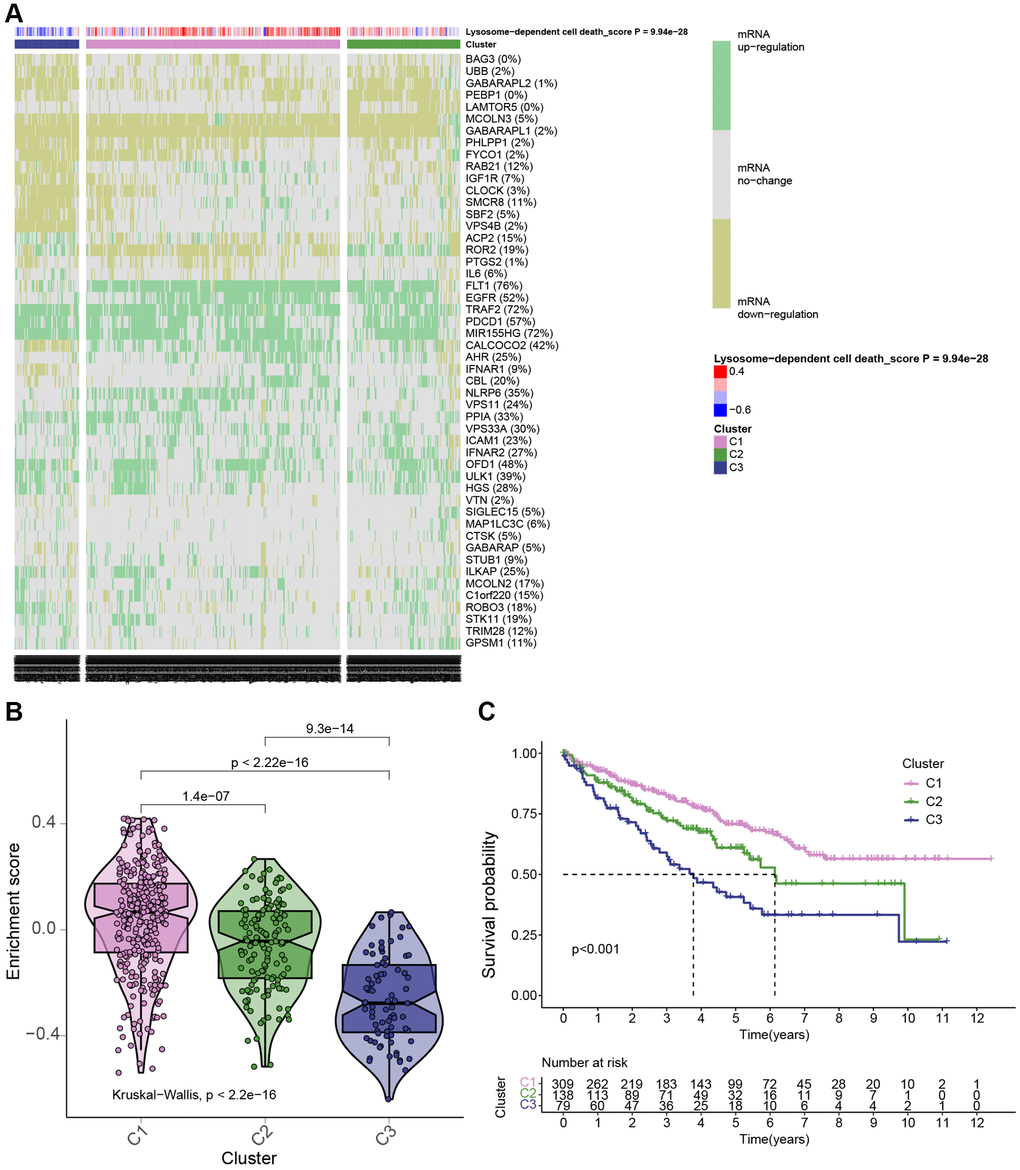

Then, to comprehensively investigate the pivotal role of the 50 LDCD-RGs in the initiation and progression of KIRC, we partitioned the KIRC samples sourced from TCGA into three distinct subgroups, namely cluster 1, cluster 2, and cluster 3. This partitioning was executed based on the expression levels of LDCD-RGs, as demonstrated in Figure 3A. Cluster 1 (C1) encompassed KIRC patients exhibiting active LDCD, Cluster 3 (C3) encompassed those with suppressed LDCD, and Cluster 2 (C2) consisted of KIRC patients demonstrating normal LDCD activity. Furthermore, we performed an in-depth analysis to enhance our understanding of the expression scores of LDCD-RGs across these three clusters, as illustrated in Figure 3B. Subsequent to this analysis, we proceeded to construct survival curves for each of the three cluster subgroups. Intriguingly, our findings unveiled that KIRC patients belonging to Cluster C1 showcased the highest overall survival rate, whereas those falling within Cluster C3 displayed the lowest overall survival rate (Figure 3C). Importantly, the observed disparities in survival curves among these three subgroups were underpinned by statistically significant differences. This underscores the considerable clinical implications of the LDCD-RGs score in the prognosis and post-treatment trajectory of KIRC patients, thereby establishing it as a noteworthy protective indicator for KIRC.

Correlations between the LDCD-RGs score and the classical cancer-related metabolic, immune and cell death pathways

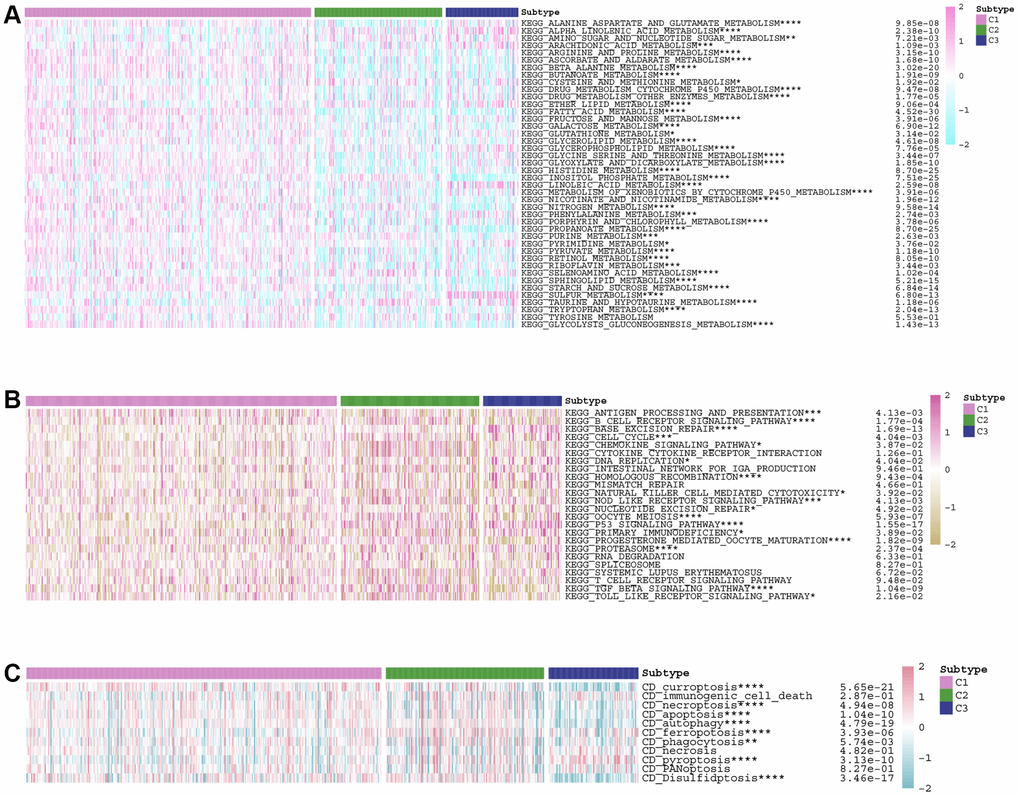

Given the pivotal role of LDCD-RGs in the etiology and progression of KIRC, this study delves into the mechanistic underpinnings by which LDCD-RGs exert their influence on the pathogenesis of KIRC. An extensive analysis was conducted to discern variations in classical cancer-associated metabolic channeling within the tripartite KIRC subgroups (Figure 4A). Aside from KEGG_TYROSINE_METABOLISM, a gamut of metabolically pertinent pathways exhibited statistically significant differences across the three KIRC subgroups. Evidently, the C1 subgroup displayed heightened activity in numerous cancer-linked pathways relative to the C2 and C3 counterparts. Instances include KEGG_FATTY_ACID_METABOLISM, KEGG_INOSITOL_PHOSPHATE_METABOLISM, and KEGG_GLYCOLYSIS_GLUCONEOGENESIS_MET ABOLISM. Conversely, a subset of cancer-associated metabolic pathways such as KEGG_LINOLENIC_ACID_METABOLISM, KEGG_SULFUR_METABOLISM and KEGG_ALPHA_LINOLENIC_ACID_METABOLISM evinced subdued activity within the C3 subgroup. These compelling findings propose the potential of LDCD-RGs to modulate the prognostic trajectory of KIRC in affected patients by exerting either a promotive or inhibitory effect on tumor-associated metabolic pathways. Further exploration encompassed an evaluation of the interplay between the activity of canonical immune-related pathways and LDCD-RGs in KIRC patients (Figure 4B). Multiple immune pathways, including antigen presentation response, T-cell receptor signaling pathway, and B-cell receptor signaling pathway, exhibited markedly aberrant activation patterns across the three subgroups. On the whole, LDCD-RGs participate in the orchestration of immune-related pathways in KIRC patients, thereby exerting an influence on the clinical prognosis of the condition. This intricate mechanism warrants further investigation to elucidate its specific modalities. Given the crucial function of cell death patterns in the genesis and evolution of tumors, an in-depth analysis was pursued to discern disparities in the activity of cell death pathways among the three KIRC subgroups (Figure 4C). In addition to immunogenic_cell_death, necrosis, and PANoptosis cell death pathways, residual necrosis demonstrated a substantive correlation with the LDCD-RGs score. For instance, positive correlations were established between LDCDD-RGS scores and curroptosis as well as disulfidptosis, while an inverse correlation emerged with pyroptosis, as evidenced by the LDCD-RGs scores.

Conducting drug sensitivity analysis across the three KIRC subgroups

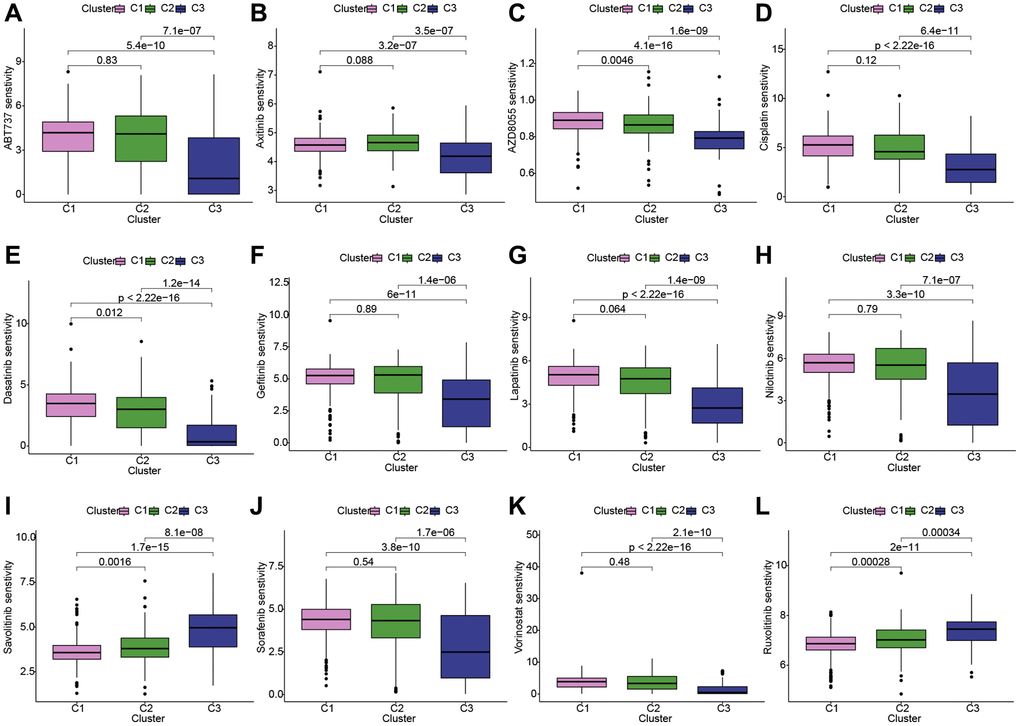

Given the prominence of molecular targeted therapy in KIRC treatment, the utilization of meticulously precise pharmaceutical agents tailored to the unique attributes of therapeutic targets holds considerable promise. Leveraging the “oncoPredict” toolkit, we anticipated the IC50 concentration values for individual KIRC patients. This approach enabled the assessment of LDCD-RGs expression within three distinct KIRC subgroups in response to a panel of twelve drugs, thereby facilitating a personalized treatment strategy for KIRC patients. Among the twelve drugs were compounds commonly employed in renal cancer targeted therapy as well as agents intended for broader cancer treatment applications. The discernible variations in drug sensitivity across divergent KIRC subgroups are as follows: ABT737 (Bcl-2 protein inhibitor): C3 > C2 or C1; axitinib: C3 > C2 or C1; AZD8055 (mTOR inhibitor): C3 > C2 > C1; cisplatin: C3 > C2 or C1; dasatinib: C3 > C2 > C1; gefitinib: C3 > C2 or C1; lapatinib: C3 > C1 or C2; nilotinib: C3 > C1 or C2; savolitinib: C1 > C2 > C3; sorafenib: C3 > C1 or C2; vorinostat: C3 > C1 or C2; ruxolitinib: C1 > C2 > C3 (Figure 5A–5L). The outcomes elucidate the potential of LDCD-RGs as valuable guides in the development of targeted interventions against KIRC.

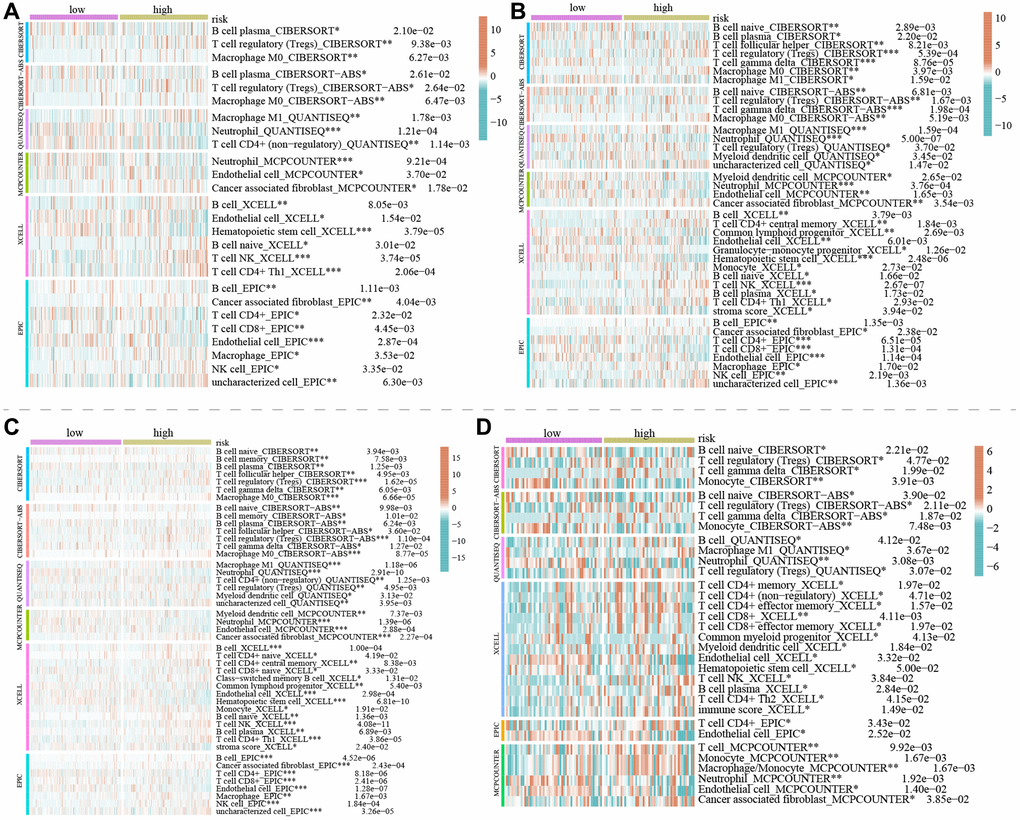

Correlations between the LDCD-RGs score and tumor immune microenvironment in the 3 clusters

The tumor microenvironment encompasses an intricate ecosystem comprising of cellular components, extracellular matrix, molecular signals, and vascular structures in proximity to neoplastic cells. Within the context of KIRC, the interplay between the tumor microenvironment and tumor cells significantly influences aspects such as tumor proliferation, metastasis, and resistance to therapeutic interventions [24–26]. A comprehensive comprehension of the mechanisms underpinning the interplay between the tumor microenvironment and tumor cells holds promise for novel insights and strategic approaches in managing KIRC. Notably, an emerging avenue of interest pertains to a novel cell demise pathway known as LDCD, which has garnered substantial attention due to its implications within the tumor microenvironment. Emerging research posits the pivotal role of LDCD in processes such as apoptosis resistance and evasion from immune surveillance in drug-resistant tumor cells. Given these dynamics, a thorough exploration of the relationship between LDCD and the tumor microenvironment stands to be of profound significance in devising innovative anti-tumor therapeutic modalities [27–30]. Through the application of heat mapping (Figure 6A), we demonstrated a correlation between immune-cell infiltration and LDCD. Our investigation unveiled a robust association between LDCD-RGs and immune cell infiltration in individuals with KIRC. Furthermore, visual representations in the form of bubble plots underscored the interconnectedness of immune infiltration-associated cell types with LDCD (Figure 6B). Importantly, our analysis divulged a prevalent positive correlation between the extent of immune cell infiltration and LDCD-RGs. To provide exemplification, we selected the four immune cell types exhibiting the strongest correlations: Treg cells, neutrophils, B cells, and dendritic cells (Figure 6C–6F). Collectively, these findings suggest that individuals with elevated LDCD-RGs scores manifest heightened immune cell infiltration, ultimately translating to a more favorable prognosis within the realm of KIRC. Furthermore, we sought to delve into potential discrepancies in the degree of immune cell infiltration among distinct subgroups, denoted as C1, C2, and C3. Employing computational tools such as TIMER, CIBERSORT, QUANTISEQ, and MCPCOUNTER algorithm, we meticulously evaluated immune cell infiltration levels (Figure 6G). The resulting heat map offered insights into differential cellular immune responses and components across the three subgroups. Notably, the highest infiltration of immune cells was discerned within cluster C1, indicative of a positive correlation between the extent of immune cell infiltration and LDCD-RGs. Considering the pivotal role of immune checkpoints in enabling tumor cells to evade immune surveillance and consequently foster tumor progression, our investigation also encompassed the examination of immune checkpoint genes (ICGs) within varying KIRC subgroups (Figure 6H). Synthesizing the observations, it is plausible to infer that LDCD-RGs wield a significant regulatory influence over the immune milieu in KIRC, thereby holding potential to enhance prognostic outcomes for affected individuals.

Building and validation of a novel LDCD-RGs related prognostic model for predicting the prognosis of patients with KIRC

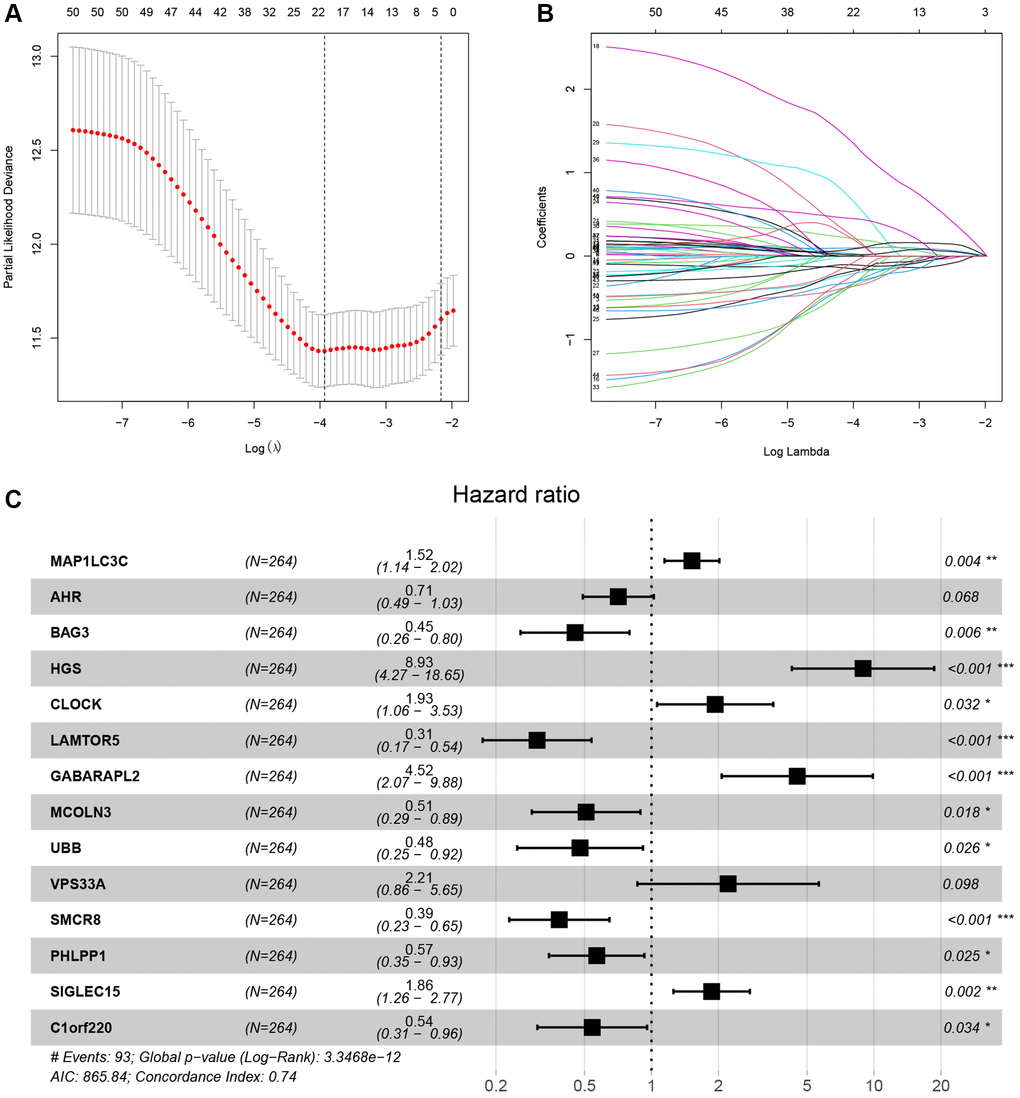

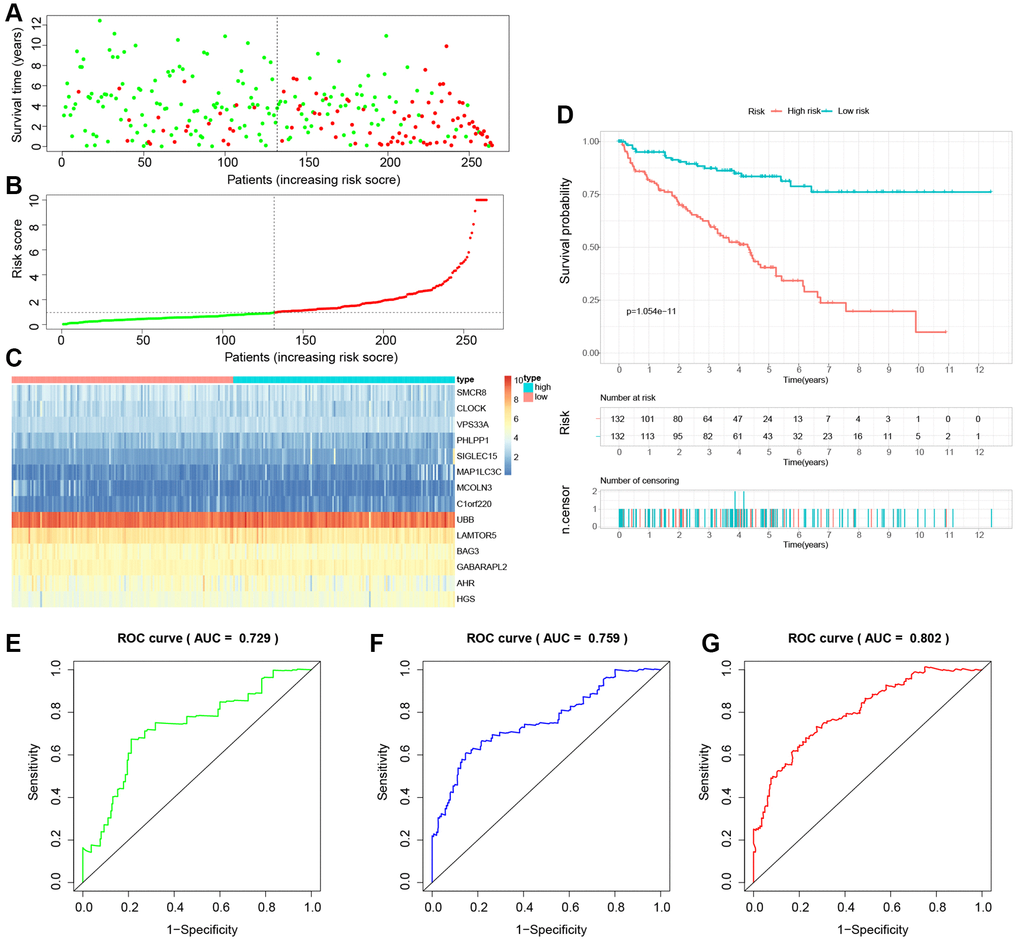

The study involved a LASSO-Cox regression analysis encompassing 50 LDCD-RGs associated with the prognosis of KIRC. This investigation aimed to discern potential candidate molecules for the establishment of a robust KIRC prognostic framework (Figure 7A, 7B). Subsequently, a comprehensive regression analysis employing the multivariate Cox proportional hazards calculation approach was executed. This step led to the identification of 14 pivotal LDCD-RGs, pivotal for the construction of prognostic models. These genes include MAP1LC3C, AHR, BAG3, HGS, CLOCK, LAMTOR5, GABARAPL2, MCOLN3, UBB, VPS33A, SMCR8, PHLPP1, SIGLEC15, and C1orf220 (Figure 7C). To enhance the precision and applicability of the KIRC prognostic model, a two-fold strategy was adopted for patient selection. Firstly, 50% of the TCGA-KIRC patient cohort was randomly designated as the training set. Concurrently, the remaining 50% of TCGA-IRC patients were used as test1, and all TCGA-KIRC patients were used as test2 (internal validation set). Ultimately, the KIRC patients sourced from the E-MTAB-1980 cohort were employed as an independent external validation set, referred to as test3. In the training cohort, patients were classified into high and low-risk categories based on their median risk scores (Figure 8A). Furthermore, an analysis of the relationship between risk score distribution and survival status was conducted. This analysis unveiled a markedly elevated KIRC mortality rate in the high-risk group as opposed to the low-risk group (Figure 8B). Subsequent to this, a heatmap was presented to visually represent the expression distribution of the 14 LDCD-RGs derived from the prognostic model within the high and low-risk groups (Figure 8C). Following this, the outcomes of the Kaplan-Meier survival analysis substantiated the observation of reduced survival durations among KIRC patients within the high-risk group. Notably, the risk model formulated in the course of this investigation adeptly discerned between unfavorable and favorable prognostic profiles for KIRC cases (Figure 8D). Recognizing the predictive capacity of this risk model concerning KIRC patient prognosis, an assessment of its performance was conducted using ROC curves. The Area Under the Curve (AUC) values for the ROC curves corresponding to the 1-year, 3-year, and 5-year survival rates were computed at 0.729, 0.759, and 0.802 respectively (Figure 8E–8G). Drawing from the aforementioned analyses, it becomes evident that LDCD-RGs hold a pivotal role in orchestrating the tumor immune microenvironment of KIRC. To this end, a diverse array of bioinformatics algorithms was employed to delve into the correlation between immune cell infiltration within the high and low-risk groups (Figure 12A). In sum, it is discerned that within the tumor microenvironment, instances of KIRC in the high-risk category exhibit a heightened extent of immune cell infiltration, with a notable presence of B cells, as opposed to their low-risk counterparts. Conversely, instances of KIRC within the high-risk grouping manifest a diminished level of immune cell infiltration, including Tregs which are associated with immune suppression, in comparison to the low-risk grouping. These findings collectively furnish a rationale for the superior prognosis observed among the high-risk group in relation to the low-risk cohort, thereby further underscoring the profound influence of LDCD-RGs on the overall outcomes of KIRC patients.” into “The analysis of the tumor immune microenvironment highlights significant differences between high and low-risk groups of KIRC patients, particularly in the infiltration of B cells and Treg cells, showing evident heterogeneity. Variations in the abundance of immune cells may be one of the potential reasons for the diverse prognosis observed in these patients.

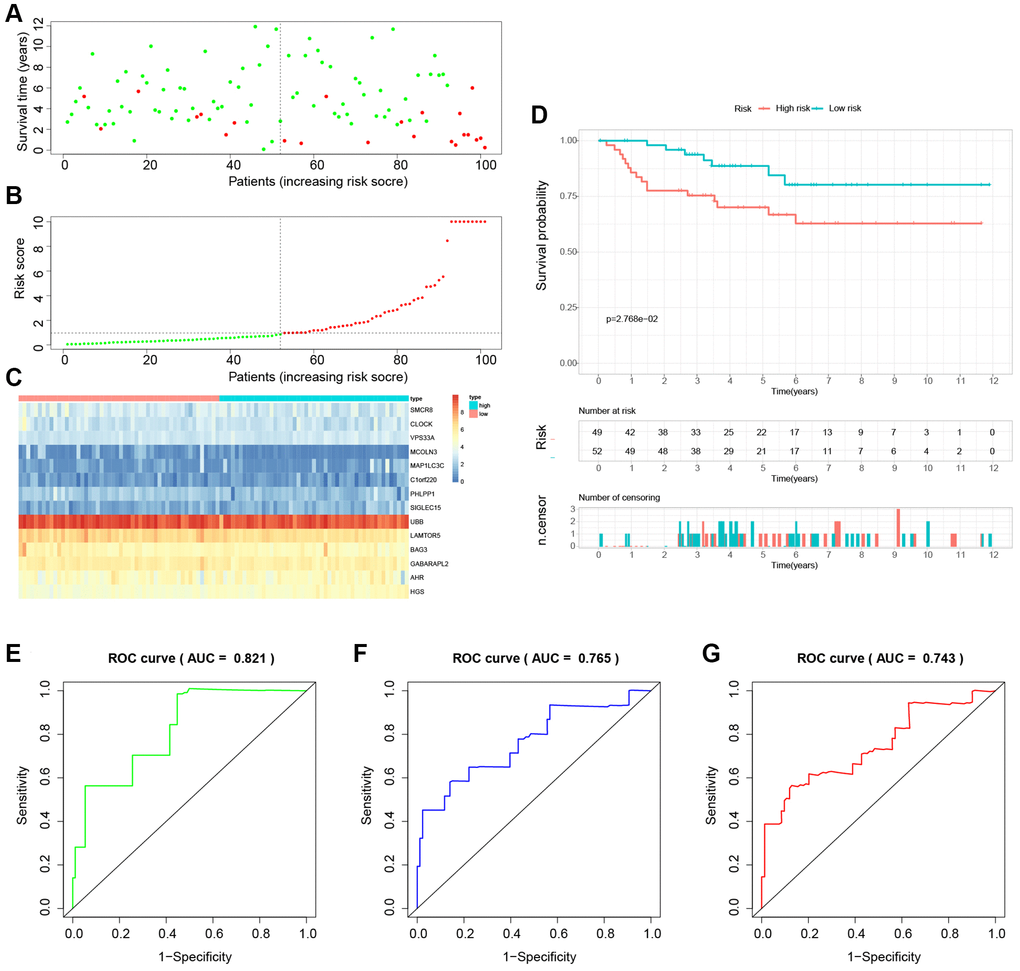

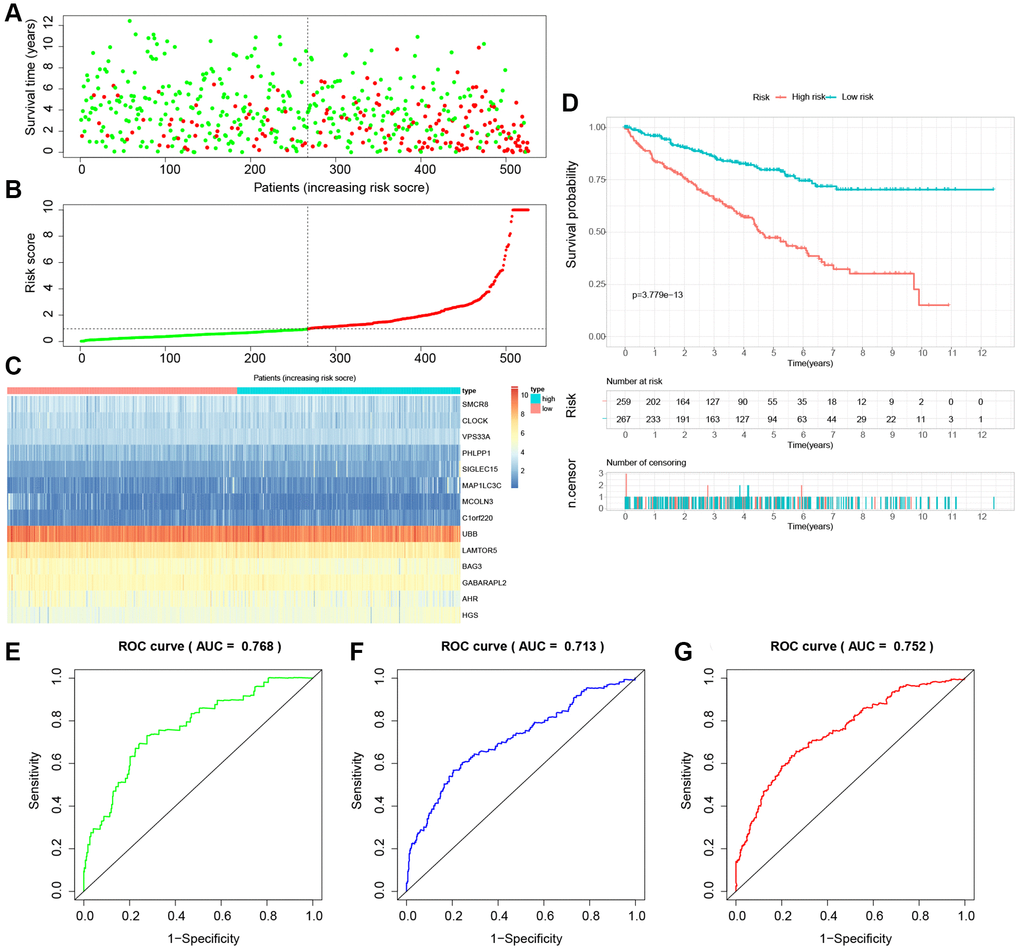

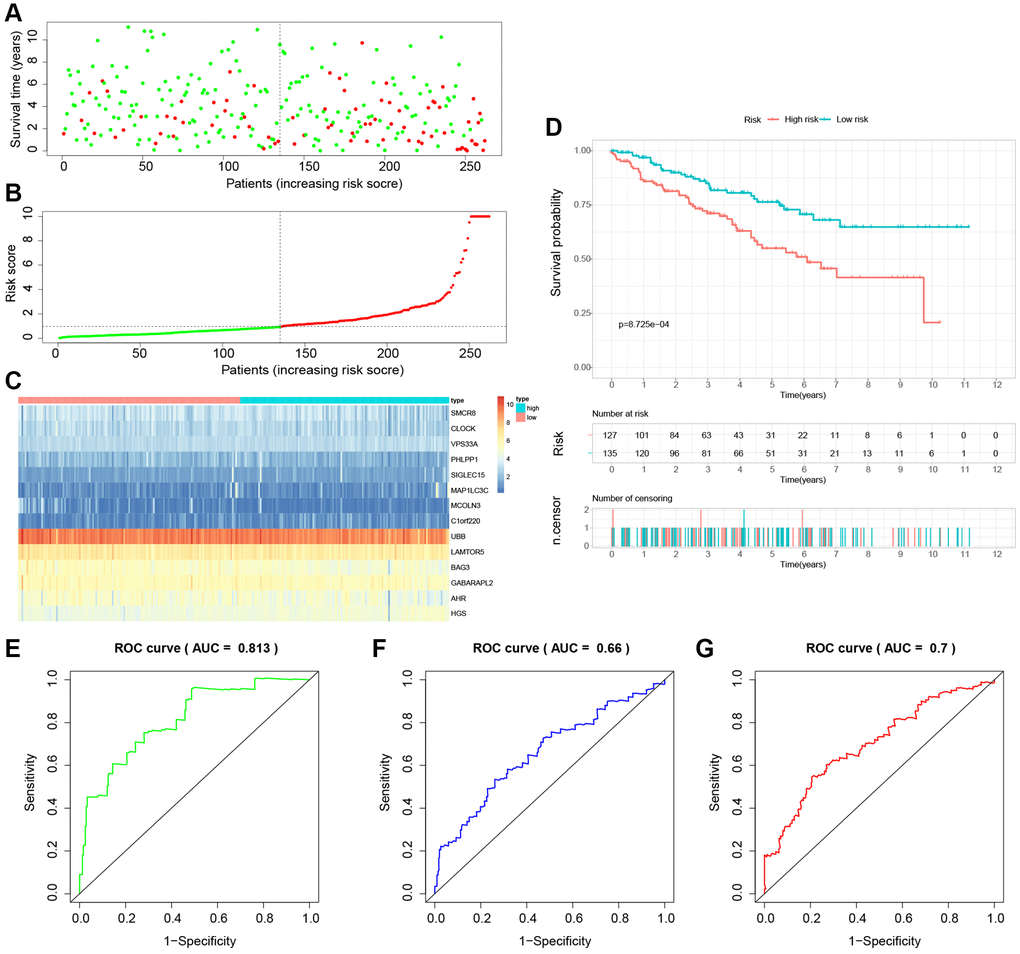

To establish the reliability, stability, and scientific validity of the risk model associated with LDCD-RGs, we applied uniform analytical methodologies to categorize KIRC samples from both internal validation sets (test1, test2) and an external validation set (test3) into distinct low-risk and high-risk groups (Figures 9A, 10A, 11A). Notably, the analysis of both internal and external validation sets revealed that the median risk scores from the training set consistently served as a benchmark. Moreover, the distribution of risk scores and survival statuses across the three validation sets (test1, test2, test3) closely mirrored the outcomes derived from the training set (Figures 9B, 10B, 11B). In both the internal and external validation sets, the expression profiles of the 14 LDCD-RGs within the high-risk and low-risk groups closely paralleled those observed in the training set (Figures 9C, 10C, 11C). Notably, the high-risk groups within all three validation cohorts exhibited unfavorable trends in overall survival (OS) (Figures 9D, 10D, 11D). ROC curve analysis indicated that within the test1 cohort, the AUC values were 0.813, 0.660, and 0.700, respectively (Figure 9E–9G). Within the test2 cohort, the corresponding AUC values were 0.768, 0.713, and 0.752 (Figure 10E–10G). The external validation, represented by the test3 dataset, yielded AUC values of 0.821, 0.765, and 0.743 for the ROC curves (Figure 11E–11G). Collectively, these findings underscore the diagnostic efficacy of the KIRC risk model established in this study. Furthermore, utilizing identical analytical methodologies, we validated immune cell infiltration patterns in test1, test2, and test3, which closely aligned with outcomes observed in the training set (Figure 12B–12D). This correspondence validates the rigor and precision of our analytical approach. Random forest-based survival analysis highlighted the crucial role of PHLPP1 in KIRC (Figure 13A). Although PHLPP1 was not the gene with the highest contribution to prognosis, it ranked among the top genes, underscoring its significant role. Importantly, we found that the genes ranking higher in importance than PHLPP1 were not closely associated with clinical features such as tumor stage and grade. Therefore, our focus was directed towards the PHLPP1 gene. Clinical relevance analysis from the BEST website (Figure 13B–13F) indicated a noticeable downregulation of PHLPP1 gene expression in tumor tissues. Furthermore, as the tumor worsens, there was a further decline in PHLPP1 gene expression, especially during distant metastasis, where this trend became more pronounced. This implied that PHLPP1 was a crucial protective protein in KIRC, aligning with the earlier results of the univariate Cox regression analysis in this study. Additionally, Kaplan-Meier survival analysis validated this viewpoint (Figure 13G). HPA platform revealed that protein level of PHLPP1 in KIRC was obviously lower than that in normal kidney tissues (Supplementary Figure 2).
