Research Paper Volume 12, Issue 3 pp 2825—2839

Immune-related key gene CLDN10 correlates with lymph node metastasis but predicts favorable prognosis in papillary thyroid carcinoma

class="figure-viewer-img"

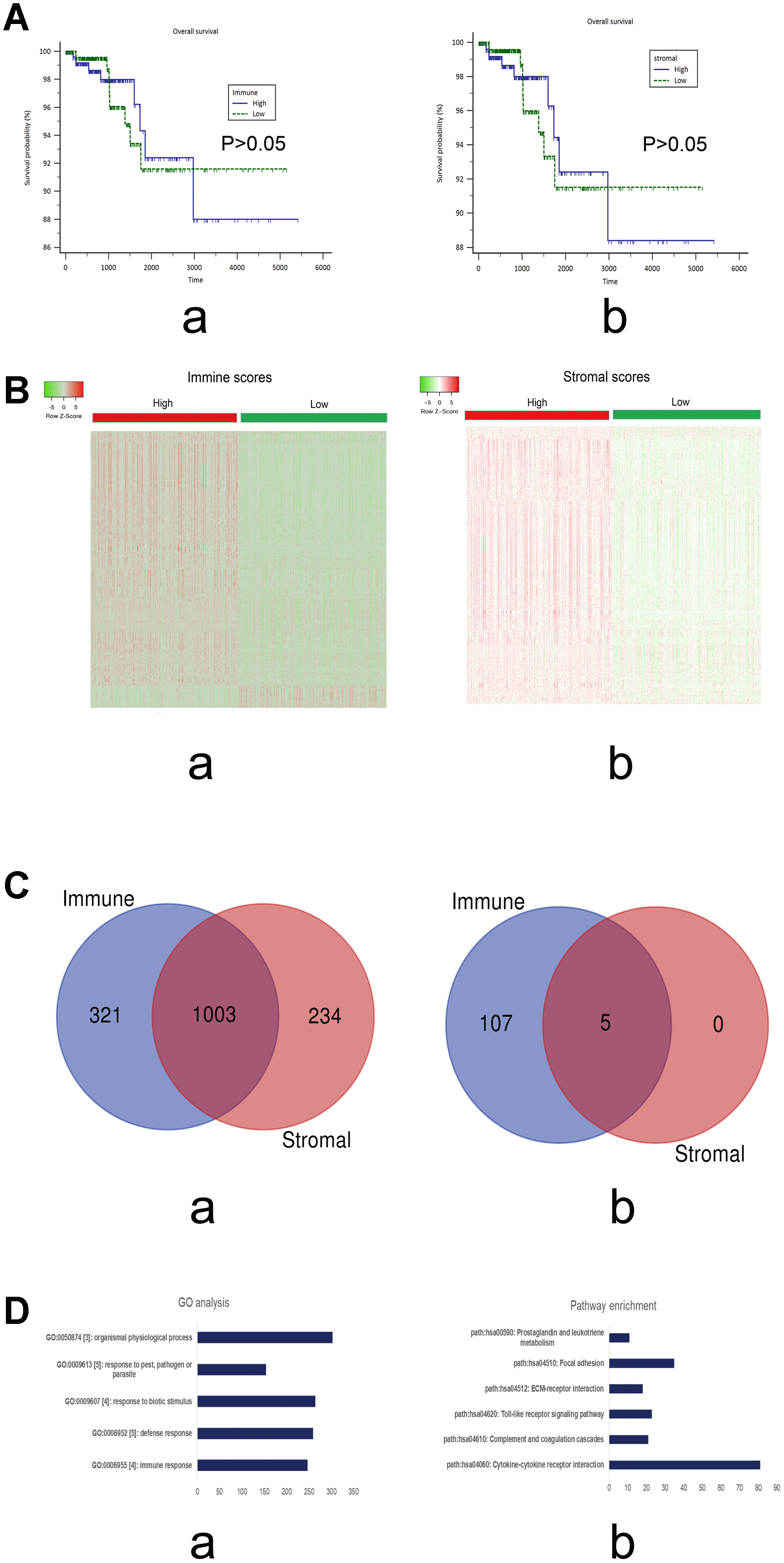

Figure 1. (A) Survival curves of the immune and stromal scores based on the TCGA cohorts of PTC. a) immune scores (P>0.05); b) stromal scores (P>0.05). (B) Heatmap of the DEGs of immune scores (a; high vs low) and stromal scores (b, high vs low). P<0.05; Fold change>2. Red stands for up-regulated genes, while green stands for down-regulated genes. (C) The intersections of the up-regulated (a) and down-regulated genes (b), respectively, from the immune and stromal gene sets. (D) The top 5 GO terms (a) and KEGG pathways (b) of the DEGs in the intersections.
