Research Paper Volume 12, Issue 10 pp 8858—8879

GSG2 (Haspin) promotes development and progression of bladder cancer through targeting KIF15 (Kinase-12)

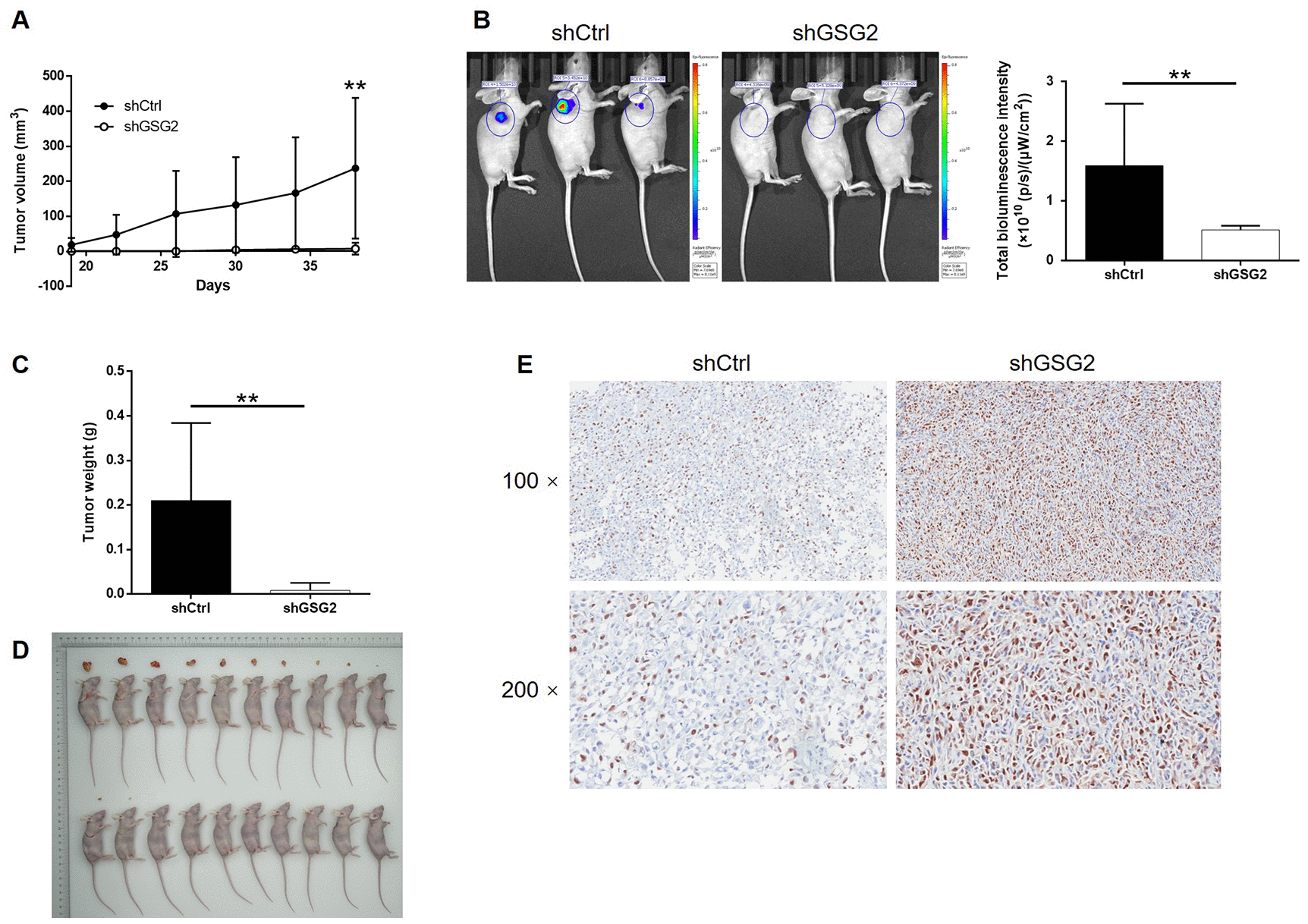

Figure 3. GSG2 knockdown inhibited tumor growth of bladder cancer in vivo. (A) The volume of tumors was measured and calculated throughout the culture of mice models. (B) The bioluminescent imaging of mice models was performed before the sacrifice of mice models. (C) The weight of tumors was measured after the removal of tumors from the mice models. (D) The photos of tumors removed from mice models were collected after the sacrifice of mice. (E) The expression of Ki-67 in the removed tumor tissues was detected by IHC. The figures are representative data from at least three independent experiments. The data were expressed as mean ± SD (n ≥ 3), *P<0.05, **P<0.01, ***P<0.001.
