Research Paper Volume 12, Issue 11 pp 10736—10753

Structural and functional changes of gut microbiota in ovariectomized rats and their correlations with altered bone mass

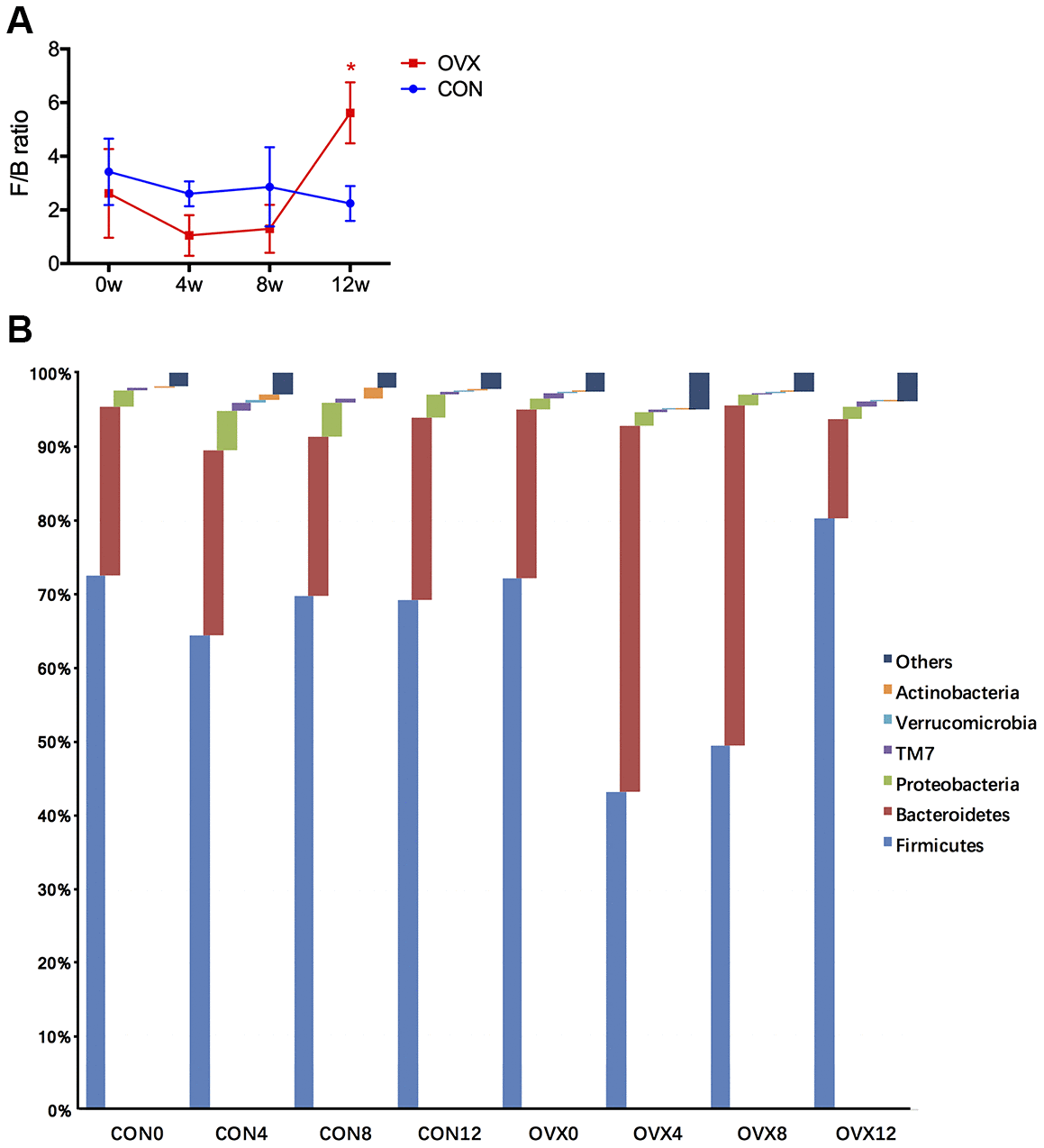

Figure 1. Gut microbiota taxonomic composition in the CON and the OVX groups. Firmicutes/Bacteroidetes ratio (F/B ratio) at different weeks following surgery (A). Annotation of phylum level for the six most abundant species of both groups (B).
