Research Paper Volume 12, Issue 11 pp 10736—10753

Structural and functional changes of gut microbiota in ovariectomized rats and their correlations with altered bone mass

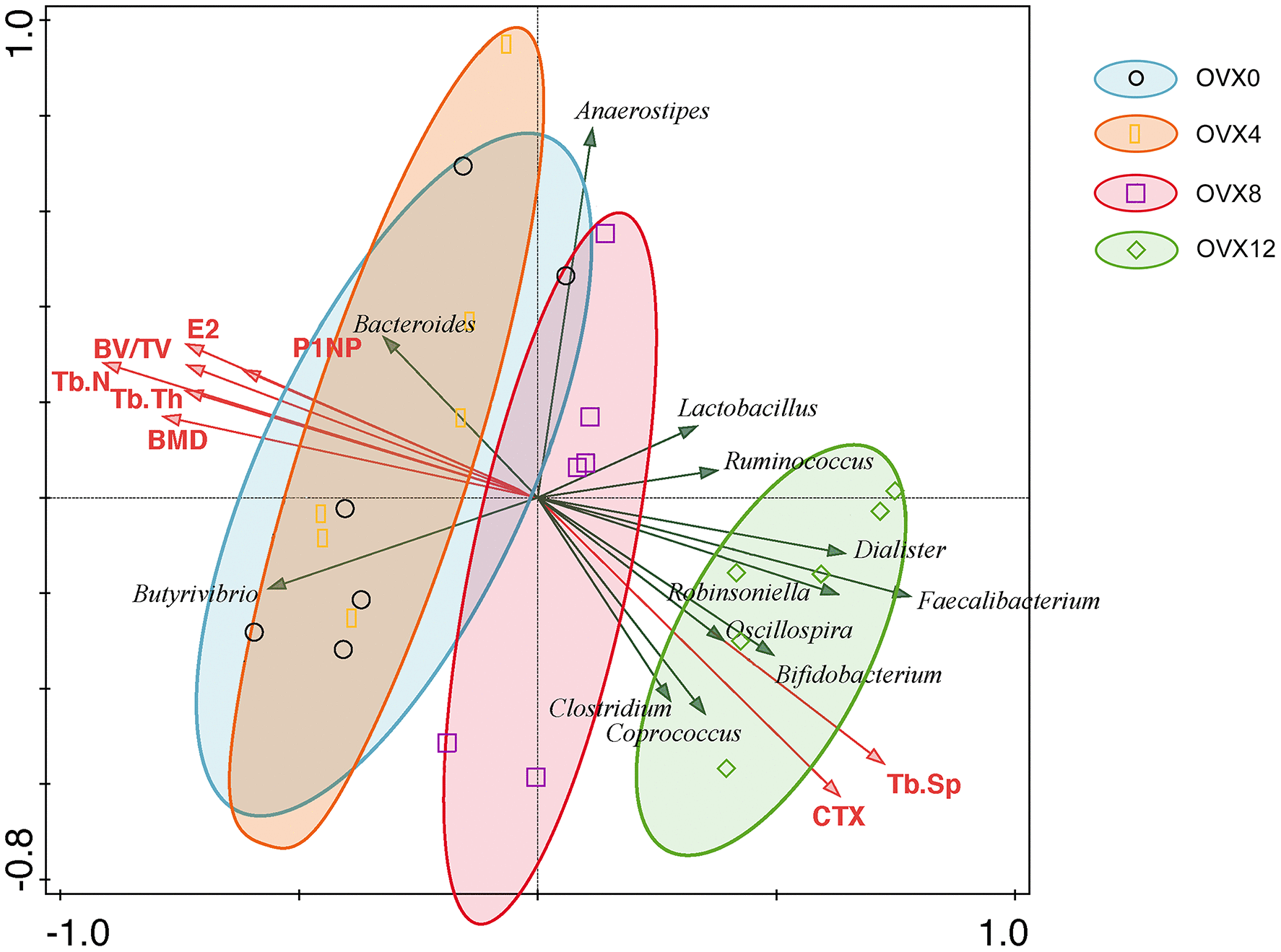

Figure 6. RDA was performed to correlate bone mass with bone turnover markers with gut microbiota in ovariectomized rats. The green arrows represent gut microbiota at the genus level and the red arrows represent biochemical indexes. The acute angle of arrows indicates the positive correlation between variables, and obtuse angles indicate negative correlations.
