Research Paper Volume 12, Issue 12 pp 12051—12073

Identification of an immune-related long non-coding RNA signature and nomogram as prognostic target for muscle-invasive bladder cancer

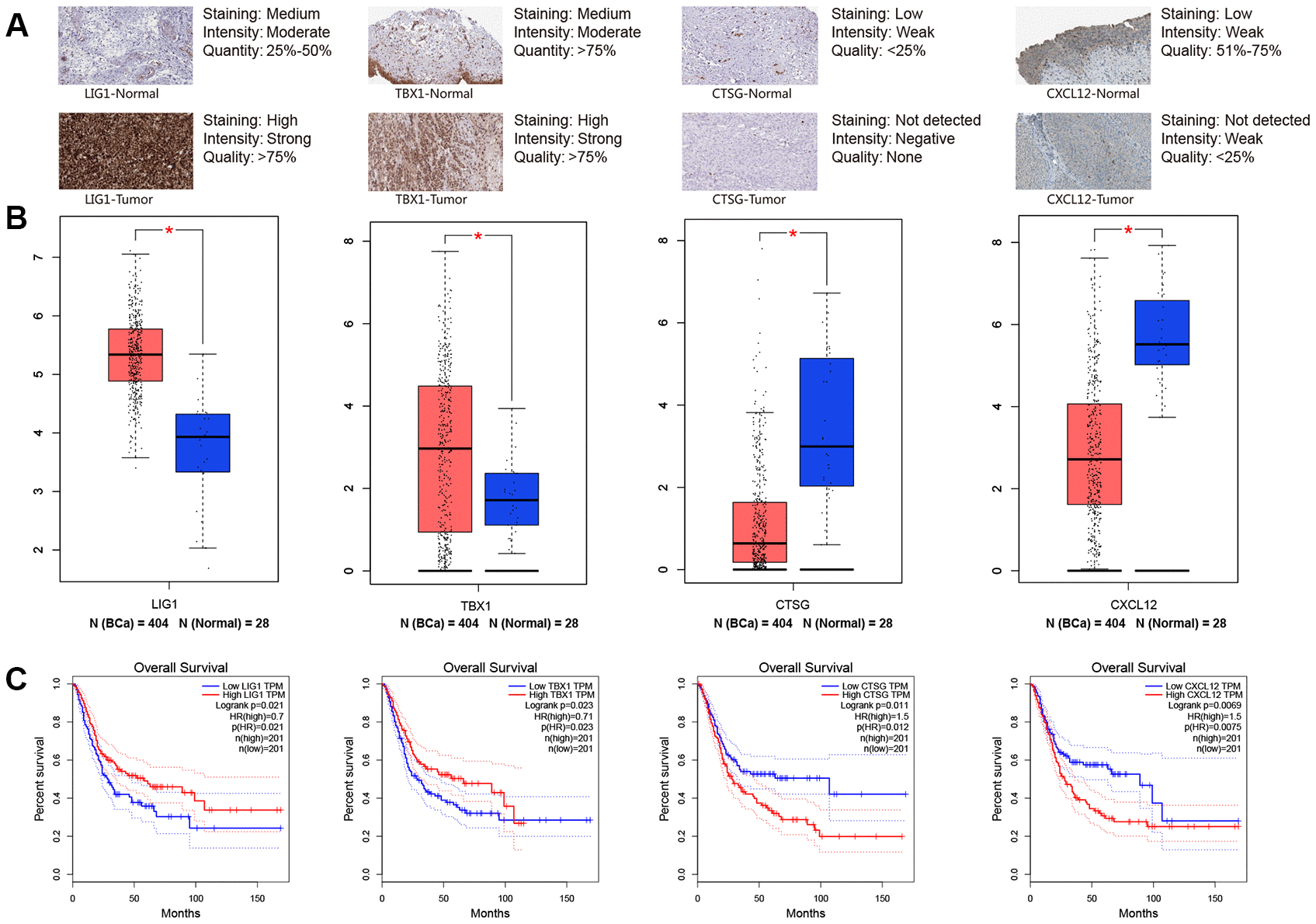

Figure 9. Immunohistochemistry from THPA (The Human Protein Atlas) and online analyses from GEPIA (Gene Expression Profiling Interactive Analysis) were used to explore four key immune-related genes (LIG1, TBX1, CTSG and CXCL12). (A) Immunohistochemistry between normal bladder tissues and BCa (bladder urothelial carcinoma) tissues; (B) Gene expression level between normal bladder tissues and BCa tissues for LIG1, TBX1, CTSG and CXCL12, respectively; (C) Kaplan-Meier survival curve of LIG1, TBX1, CTSG and CXCL12, respectively. * P-value < 0.05.
