Subtype-specific risk models for accurately predicting the prognosis of breast cancer using differentially expressed autophagy-related genes

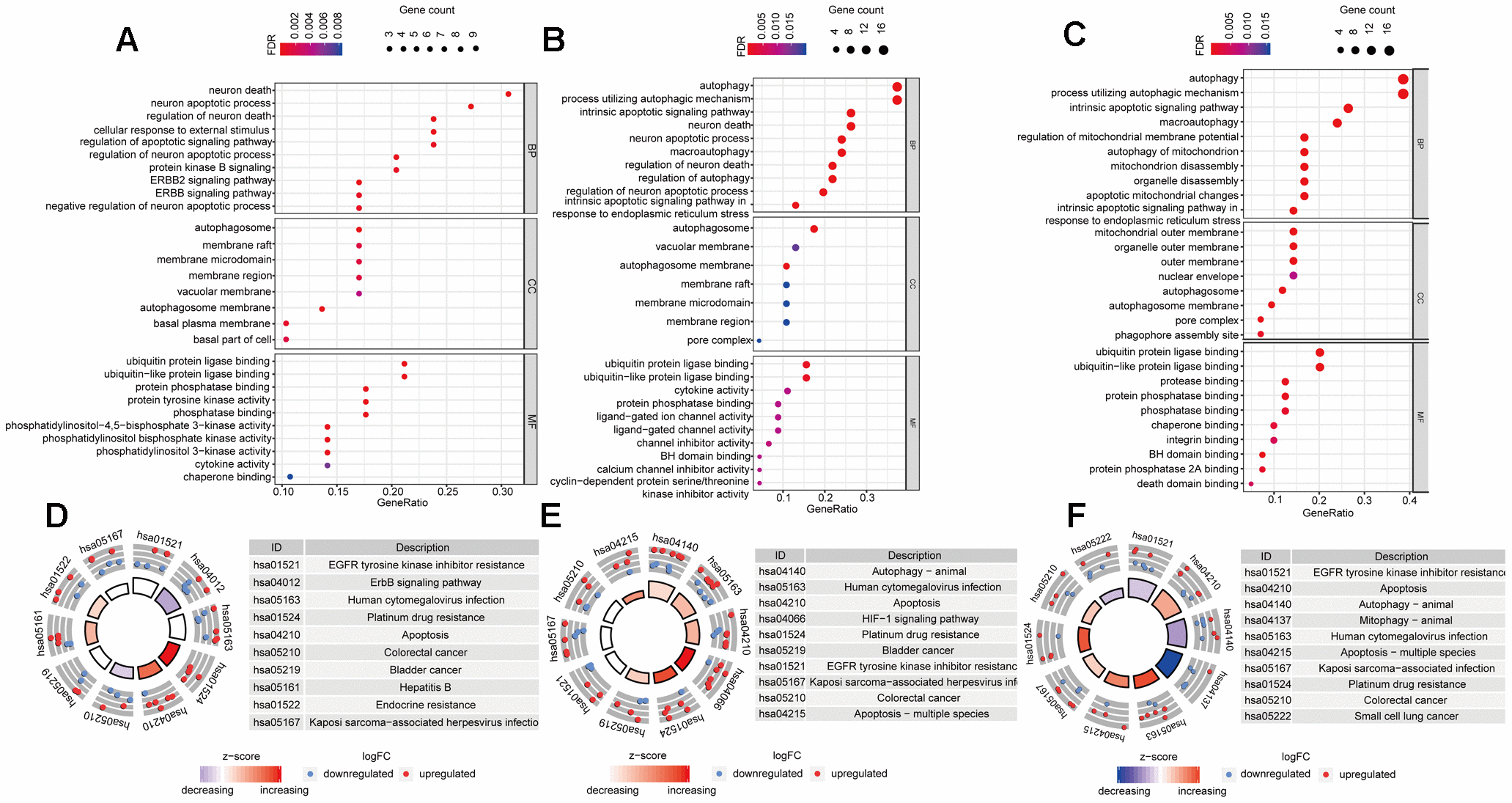

Figure 3. Gene-Ontology and KEGG enrichment analysis of DEARGs. (AC) Gene-Ontology analysis of DEARGs in Luminal (A), Her-2 (B) and Basal-like (C) BRCA. (DF) KEGG analysis of DEARGs Luminal (A), Her-2 (B) and Basal-like (C) BRCA. The outer circle shows a scatter plot for each term of the logFC of the assigned genes. Red circles display up-regulation pathways, and blue circles showing the down-regulation pathway.
