Research Paper Volume 12, Issue 13 pp 13684—13700

Genome-wide analyses of the prognosis-related mRNA alternative splicing landscape and novel splicing factors based on large-scale low grade glioma cohort

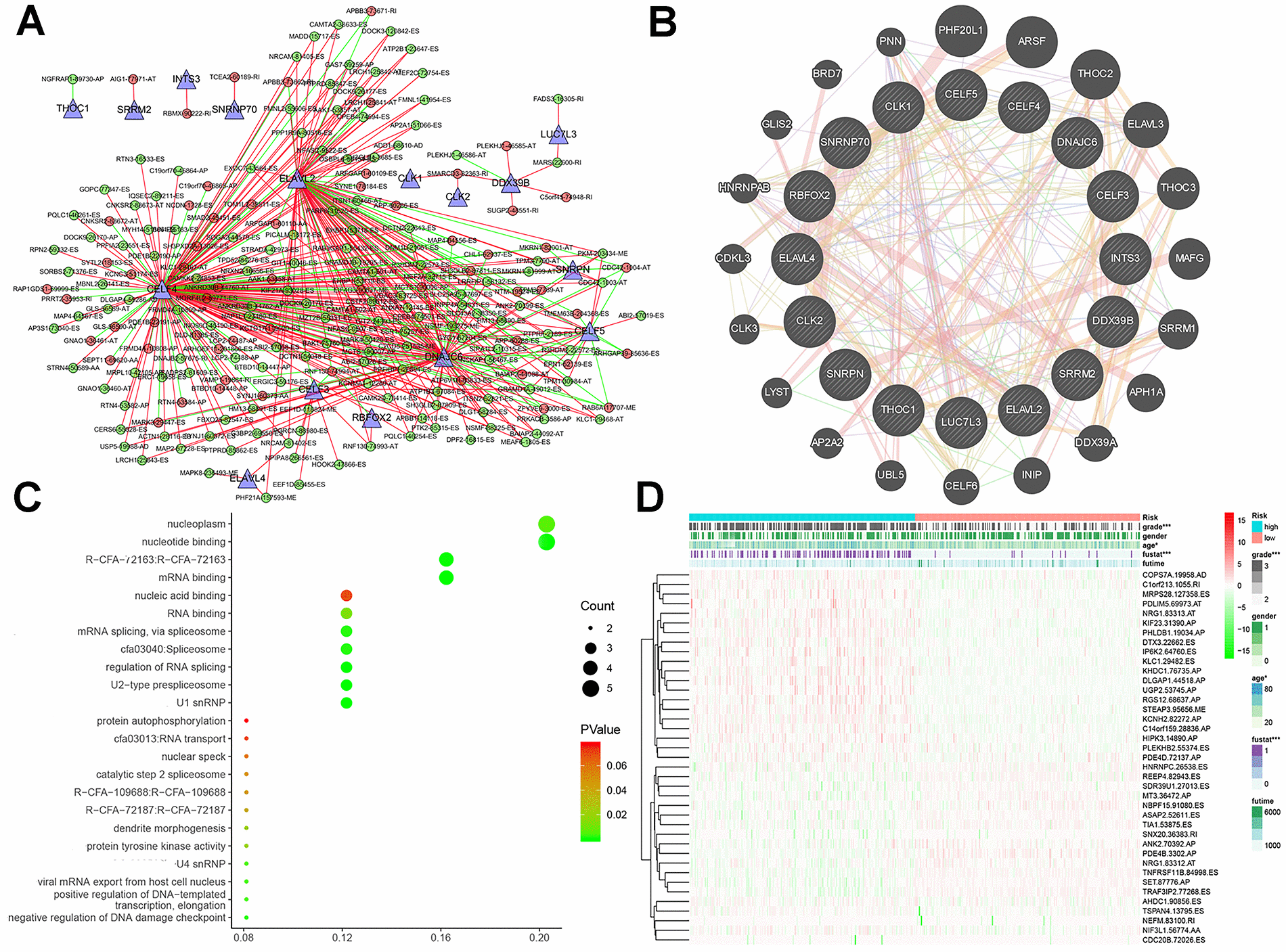

Figure 7. Interaction networks and functional annotations of SFs. (A) A total of 16 SF genes were identified to be significantly related with the regulation of AS events in LGG patients. (B) The PPI network of 16 SFs and neighbor protein nodes. (C) The results of GO analyses of SFs. (D) Overall heat map of AS events related to LGG survival.
