Research Paper Volume 12, Issue 22 pp 22906—22926

Construction of immune-related gene pairs signature to predict the overall survival of osteosarcoma patients

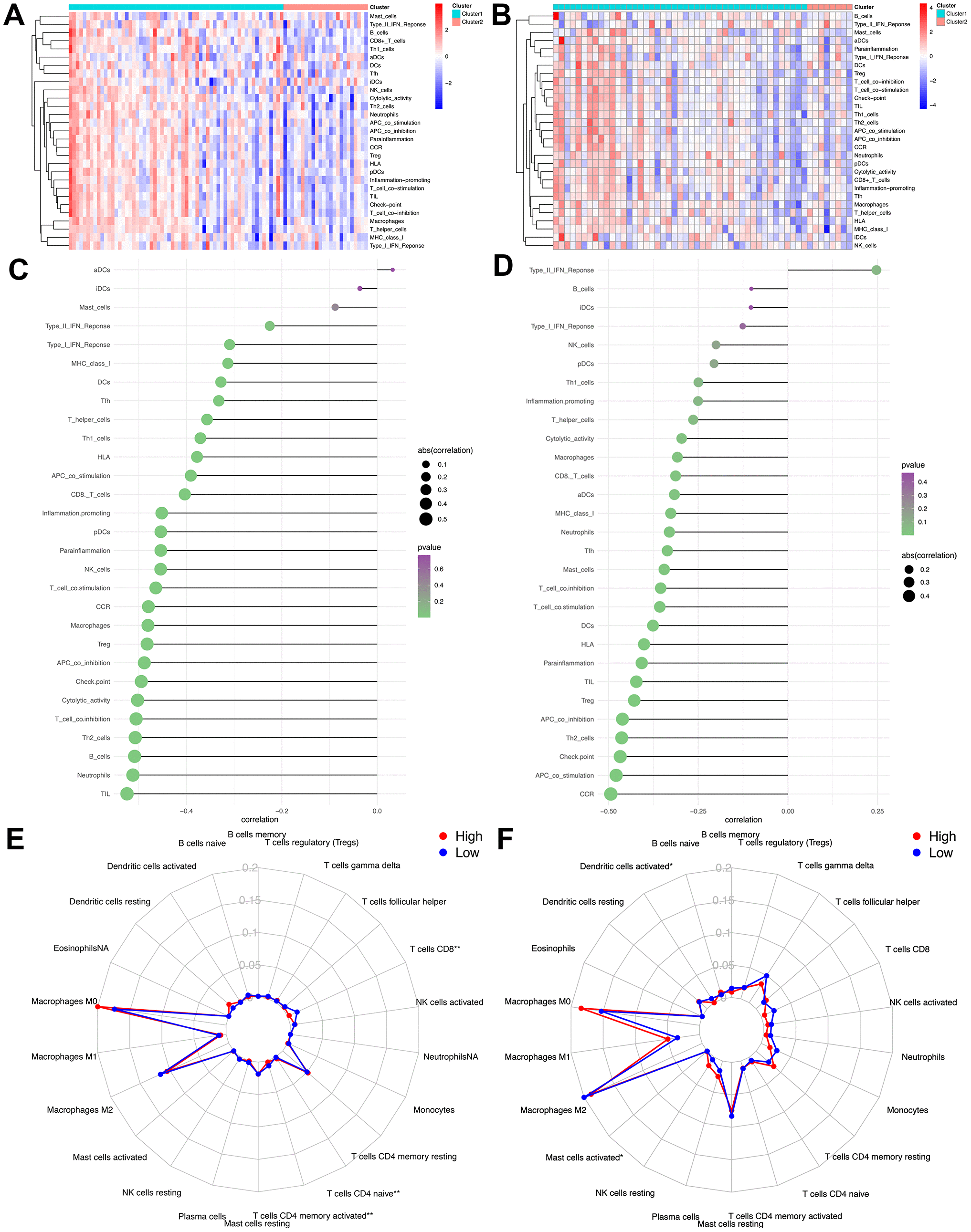

Figure 7. Assess the relationship between immune microenvironment and IRGP signature. (A) Heat map of results of single sample gene set enrichment analysis in TCGA cohort. (B) Heat map of results of single sample gene set enrichment analysis in GSE21257 cohort. (C) Relationship between 29 immune-related gene sets and IRGP signature values in TCGA cohort. (D) Relationship between 29 immune-related gene sets and IRGP signature values in GSE21257 cohort. (E) Radar chart of the relationship between 22 immune cell infiltration and IRGP signature grouping in TCGA cohort. (F) Radar chart of the relationship between 22 immune cell infiltration and IRGP signature grouping in GSE21257 cohort.
