Research Paper Volume 12, Issue 22 pp 23337—23350

Intratumoral levels and prognostic significance of Fusobacterium nucleatum in cervical carcinoma

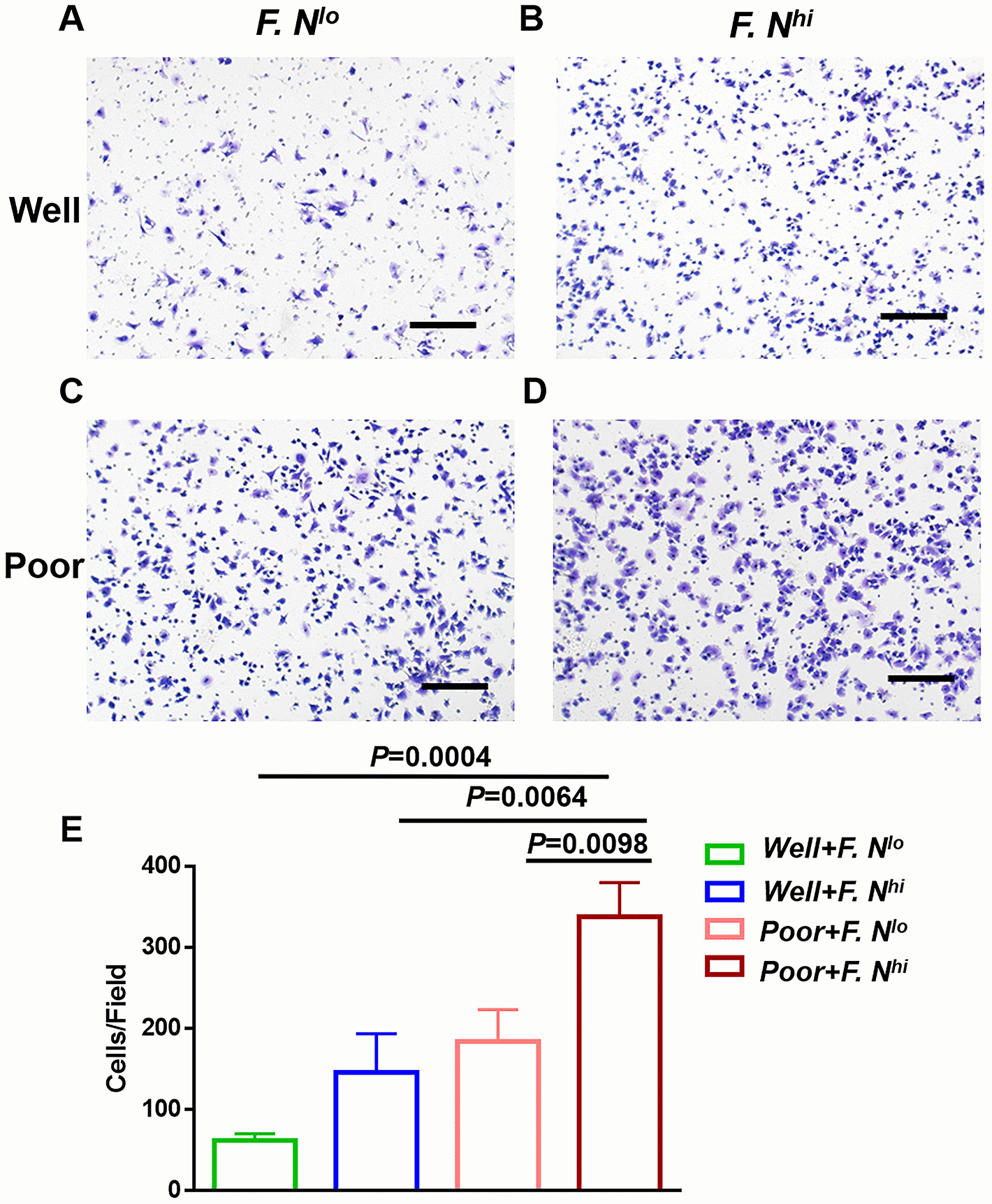

Figure 5. High levels of intratumoral F. nucleatum are associated with cancer cells invasion capacity. Representative Matrigel transwell for cells sorted for well differentiation and low (A) or high (B) amounts of F. nucleatum, or poor differentiation and low (C) or high (D) levels of intra-tumor F. nucleatum. (E) Statistical analyses of invasion cells for these groups. Scale bar = 500μm. Data are expressed as mean±SD (bars). All experiments were performed in triplicate.
