Research Paper Volume 13, Issue 3 pp 3483—3500

Estradiol is significantly associated with prognosis in non-surgical liver cancer patients: from bench to bedside

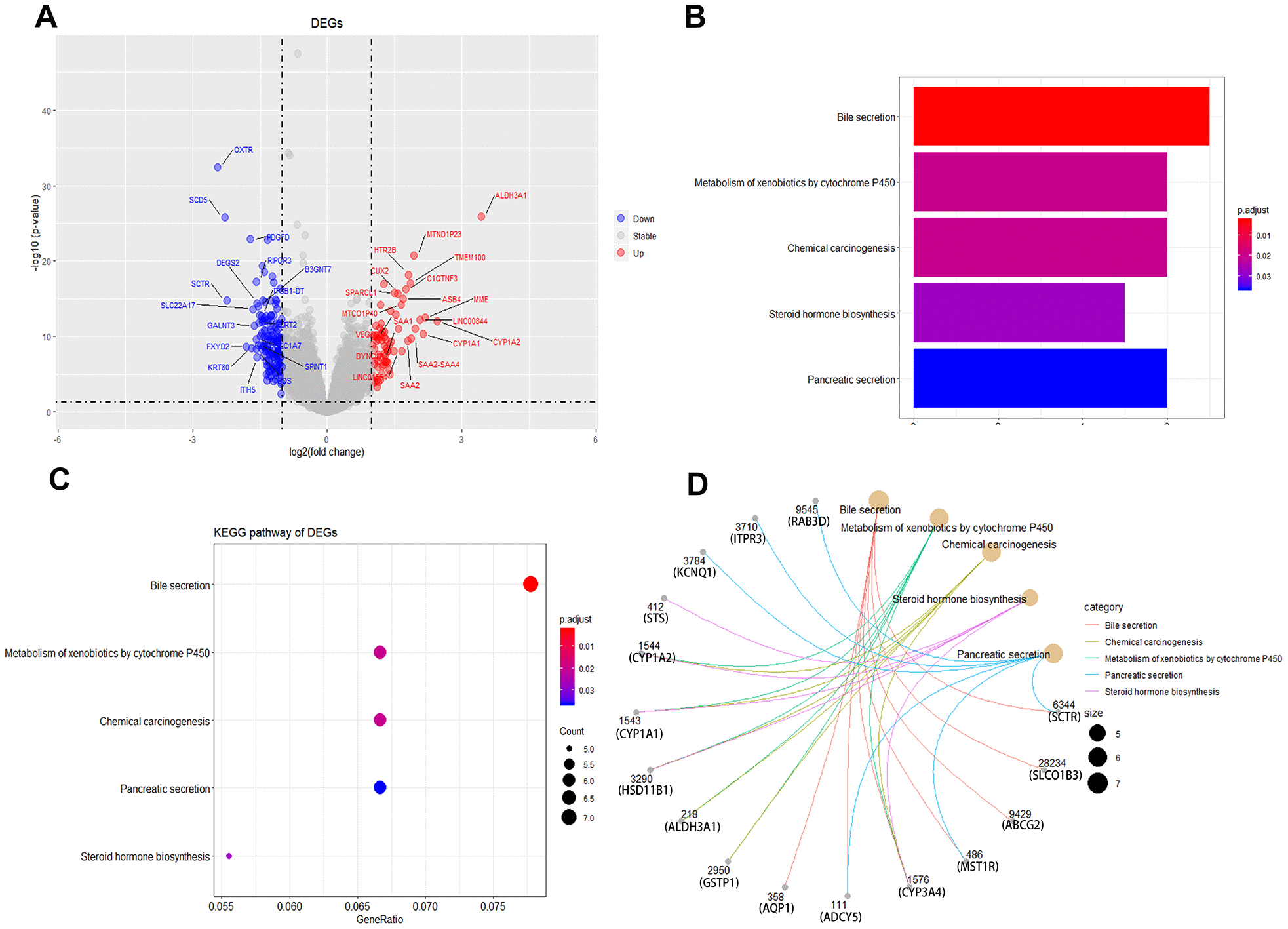

Figure 4. Identification of differentially expressed genes and KEGG enrichment between male and female liver cancer patients. (A) Volcano plot of male and female liver cancer patients in differentially expressed genes (DEGs). (B, C) KEGG enrichment of DEGs. (D) gene network diagram between DEGs and KEGG pathways.
