Research Paper Volume 13, Issue 13 pp 17607—17628

Comprehensive analysis of an immune-related ceRNA network in identifying a novel lncRNA signature as a prognostic biomarker for hepatocellular carcinoma

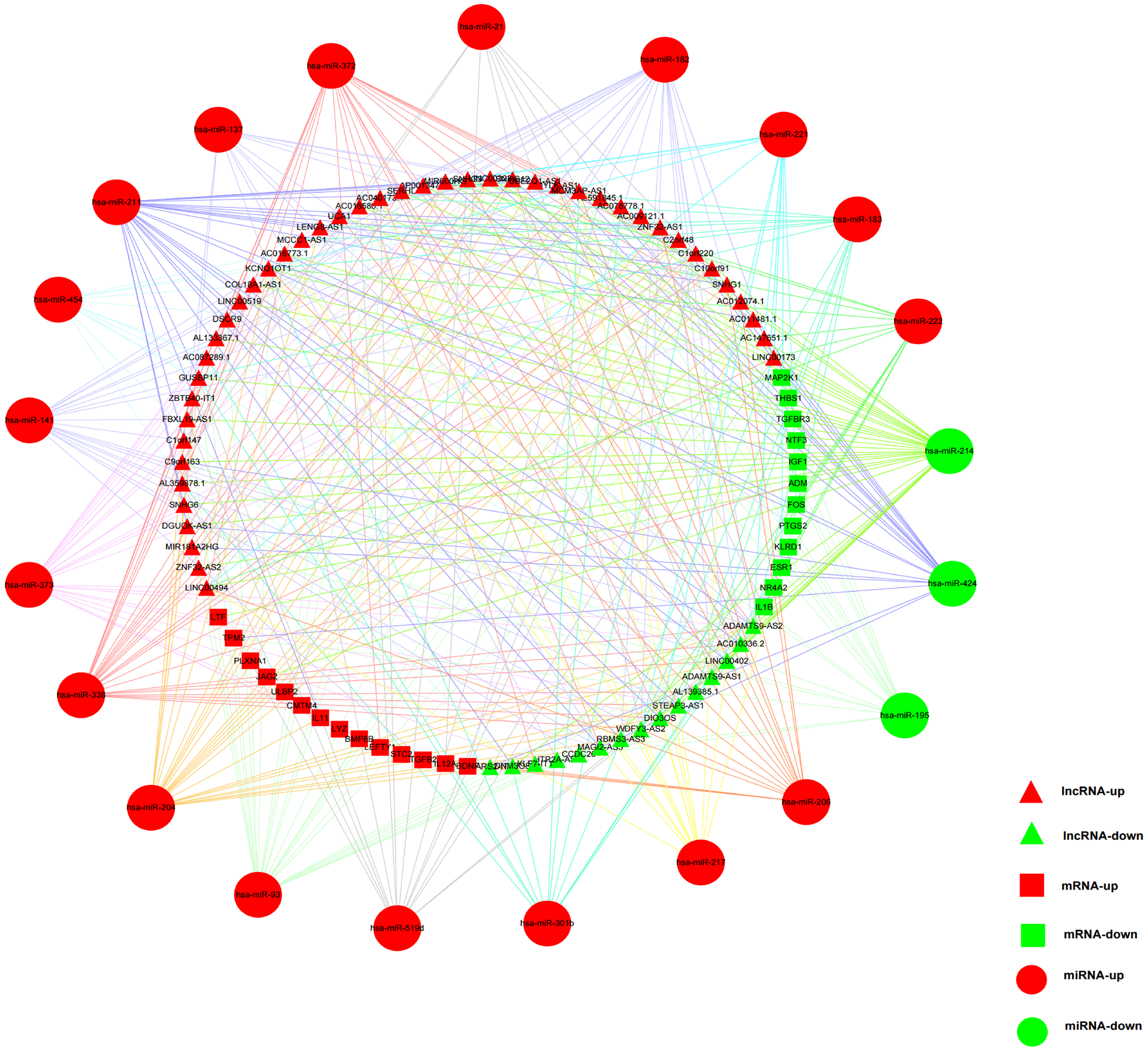

The immune-related ceRNA regulatory network in HCC. Red triangles represented upregulated lncRNAs, and green triangles represented downregulated lncRNAs. Red squares and circles stood for upregulated mRNAs and miRNAs, respectively. Green squares and circles represented downregulated mRNAs and miRNAs, respectively.

Figure 11. The immune-related ceRNA regulatory network in HCC. Red triangles represented upregulated lncRNAs, and green triangles represented downregulated lncRNAs. Red squares and circles stood for upregulated mRNAs and miRNAs, respectively. Green squares and circles represented downregulated mRNAs and miRNAs, respectively.
