Research Paper Volume 13, Issue 15 pp 19678—19695

Identification of inflammation-related DNA methylation biomarkers in periodontitis patients based on weighted co-expression analysis

The relationship between different methylation sites and immune genes. (A) Venn diagram of promoter methylation differential gene and immune gene. (B) Heat map of methylation sites of immune gene promoters. The horizontal axis is the sample, the vertical axis is the CpGs, and the color is the methylation level. (C) Distribution of immune pathways of differentially promoter methylated immune genes.

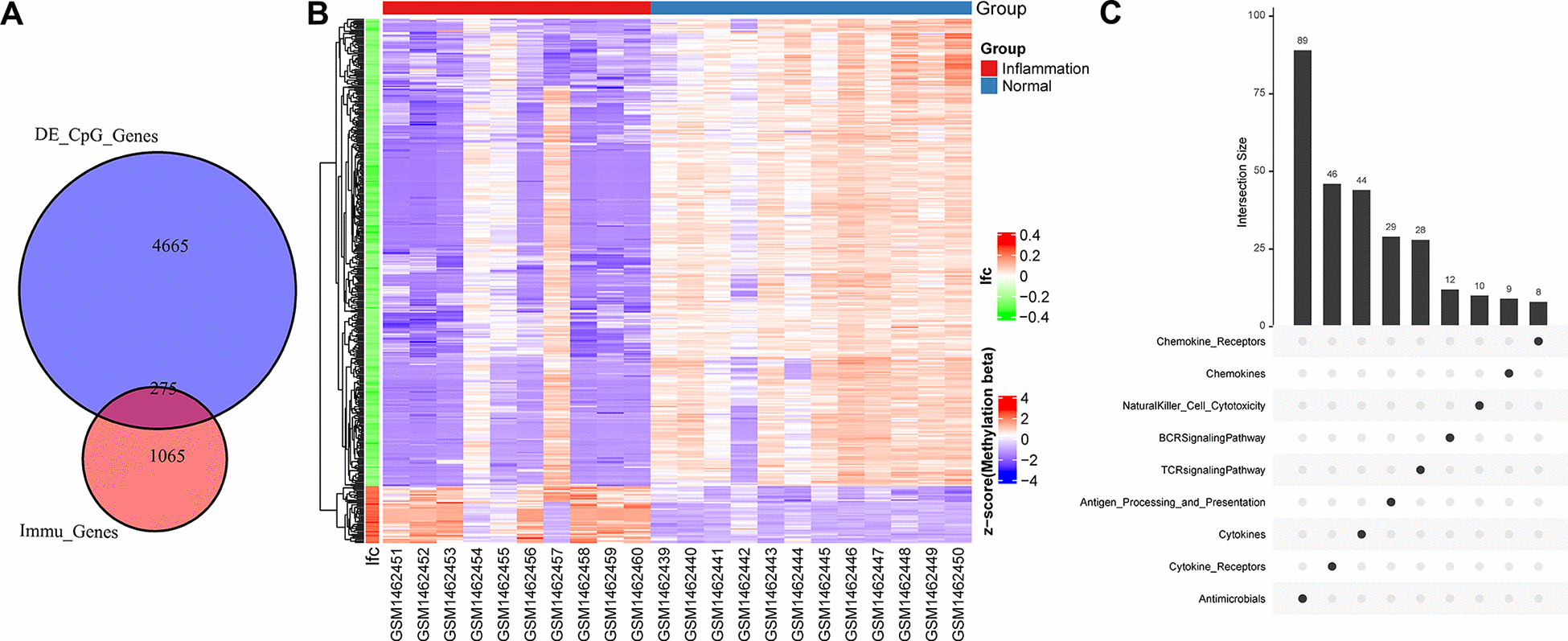

Figure 2. The relationship between different methylation sites and immune genes. (A) Venn diagram of promoter methylation differential gene and immune gene. (B) Heat map of methylation sites of immune gene promoters. The horizontal axis is the sample, the vertical axis is the CpGs, and the color is the methylation level. (C) Distribution of immune pathways of differentially promoter methylated immune genes.
