Research Paper Volume 13, Issue 16 pp 20050—20080

Effects of Siberian fir terpenes extract Abisil on antioxidant activity, autophagy, transcriptome and proteome of human fibroblasts

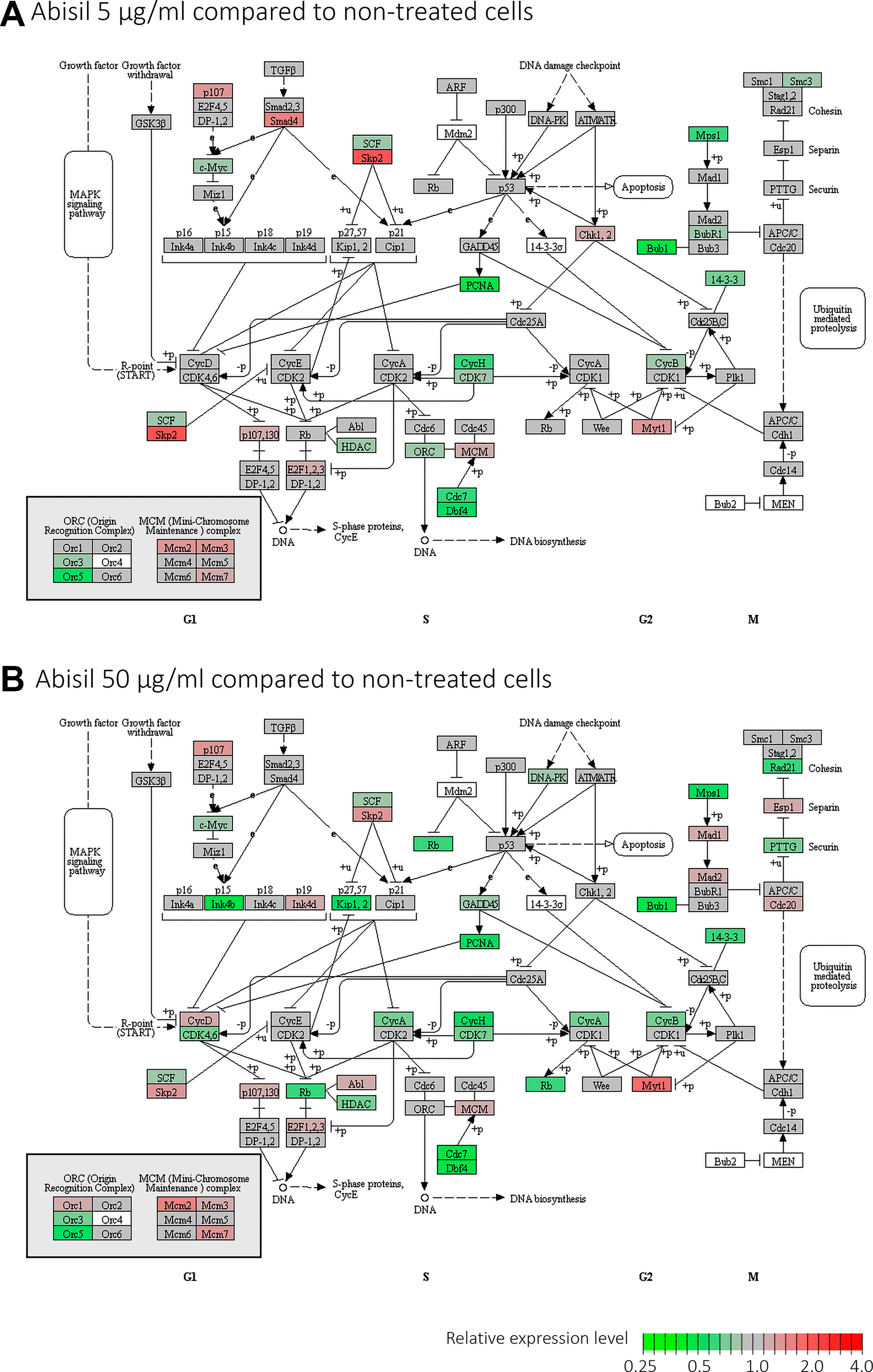

Diagram illustrating expression changes of genes participating cell cycle signaling pathway (KEGG) after Abisil treatment (MRC5-SV40 cell line): 5 μg/ml (A) and 50 μg/ml (B). Green – downregulation, red – upregulation.

Figure 13. Diagram illustrating expression changes of genes participating cell cycle signaling pathway (KEGG) after Abisil treatment (MRC5-SV40 cell line): 5 μg/ml (A) and 50 μg/ml (B). Green – downregulation, red – upregulation.
