Research Paper Volume 13, Issue 18 pp 22345—22360

Identifying critical genes associated with aneurysmal subarachnoid hemorrhage by weighted gene co-expression network analysis

class="figure-viewer-img"

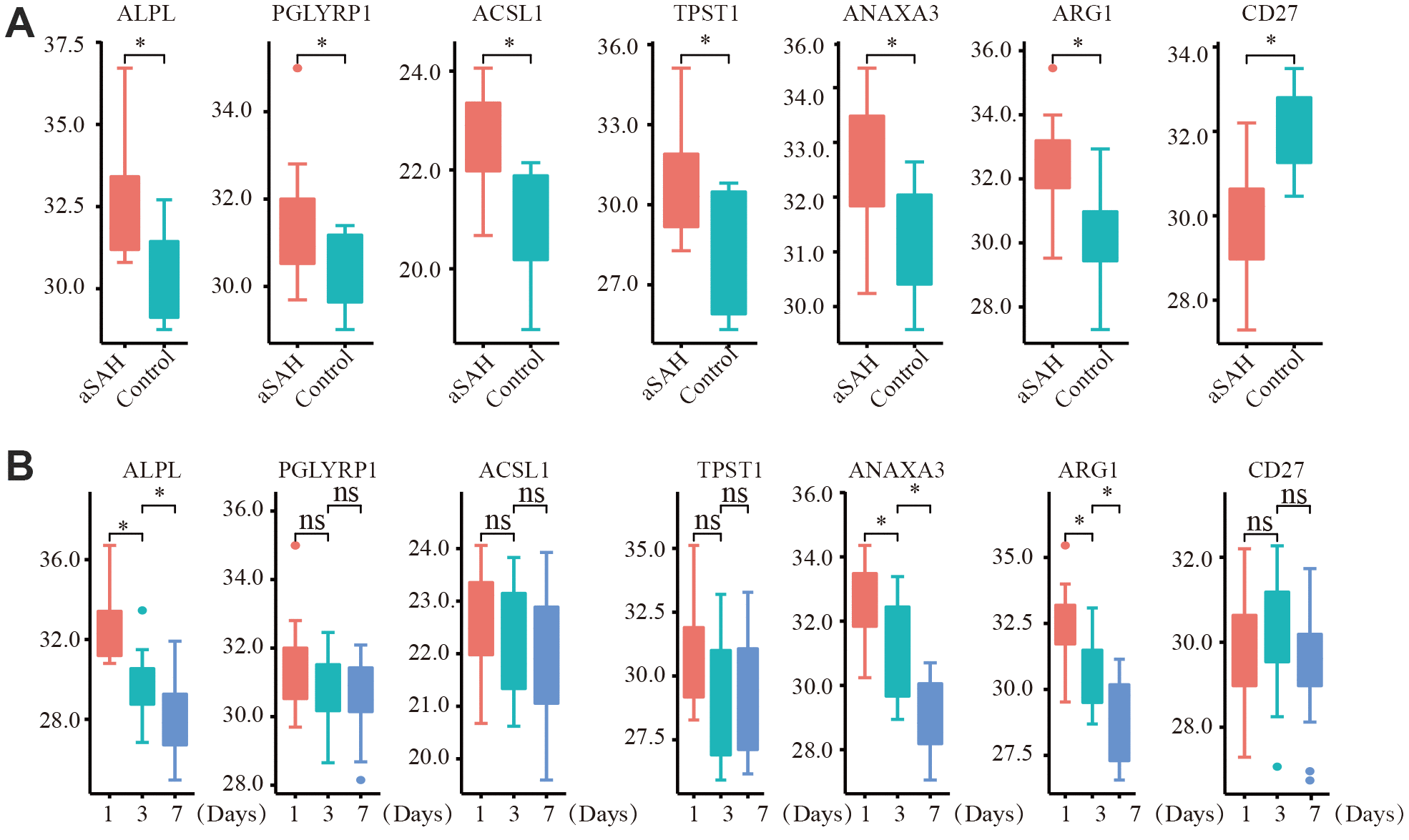

Figure 7. The expression of critical genes tested by qRT-PCR with clinical data. (A) ANXA3, ACSL1, PGLYRP1, ALPL, ARG1, TPST1 were obviously up regulated in aSAH patients, while CD27 was down regulated. (B) The expression of ALPL, ANAXA3, and ARG1 were obviously reduced over time. (*: p < 0.05).
