Research Paper Volume 14, Issue 11 pp 4714—4727

TLR3 deletion inhibits programmed necrosis of brain cells in neonatal mice with sevoflurane-induced cognitive dysfunction


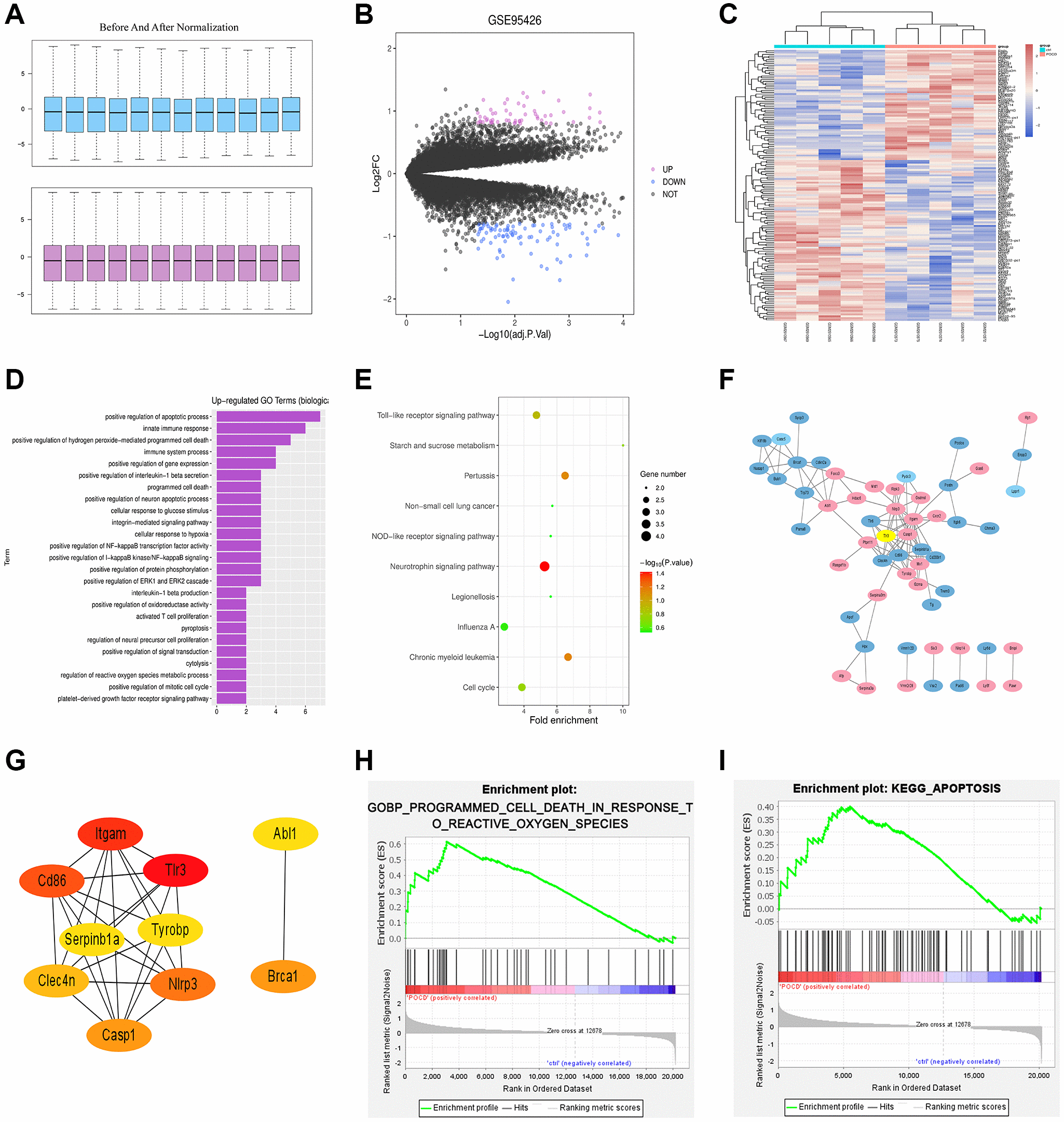

Figure 1. Results of bioinformatics analysis. (A) Before and after quantile normalization. (B) Volcano plot of visually grouped DEGs in the GSE75241 dataset. (C) Cluster heatmap of DEGs. (D) Up-regulating GO pathway diagram. (E) KEGG pathway diagram. (F) PPI network with 107 sides. (G) Key genes ranking top 10 in the PPI network. (H) and (I) GSEA-related pathway diagrams.
