Research Paper Volume 14, Issue 22 pp 9056—9089

Circadian rhythm-related factors of PER and CRY family genes function as novel therapeutic targets and prognostic biomarkers in lung adenocarcinoma

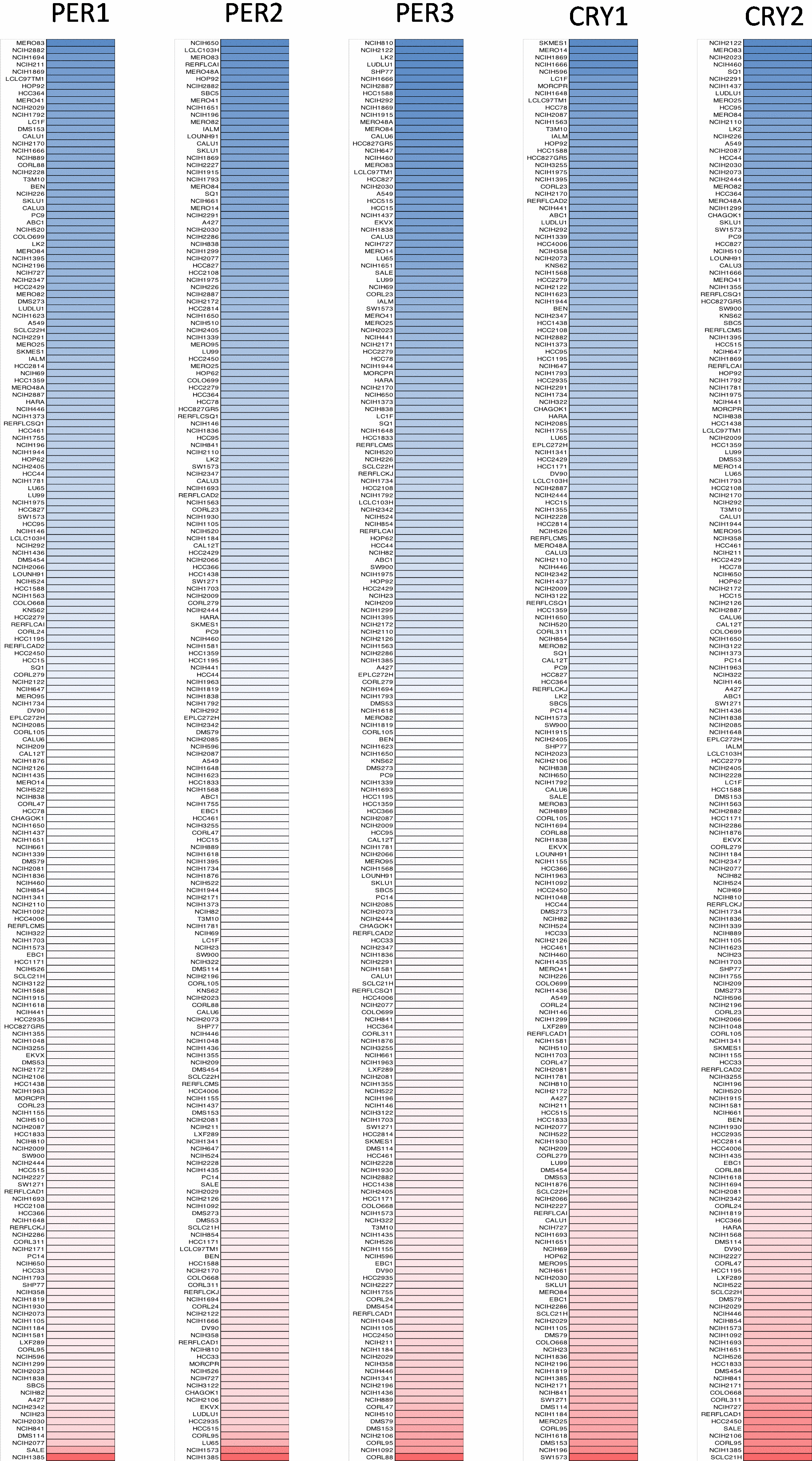

Figure 3. Gene expression levels of PER (period) and CRY (cryptochrome) family members when screening 198 lung cancer cell lines (CCLE database). PER1, PER2, PER3, CRY1, and CRY2 expression levels were differentiated into five columns. The blue blocks indicated under-expression, whereas the red blocks represented overexpression.
