Research Paper Volume 14, Issue 22 pp 9056—9089

Circadian rhythm-related factors of PER and CRY family genes function as novel therapeutic targets and prognostic biomarkers in lung adenocarcinoma

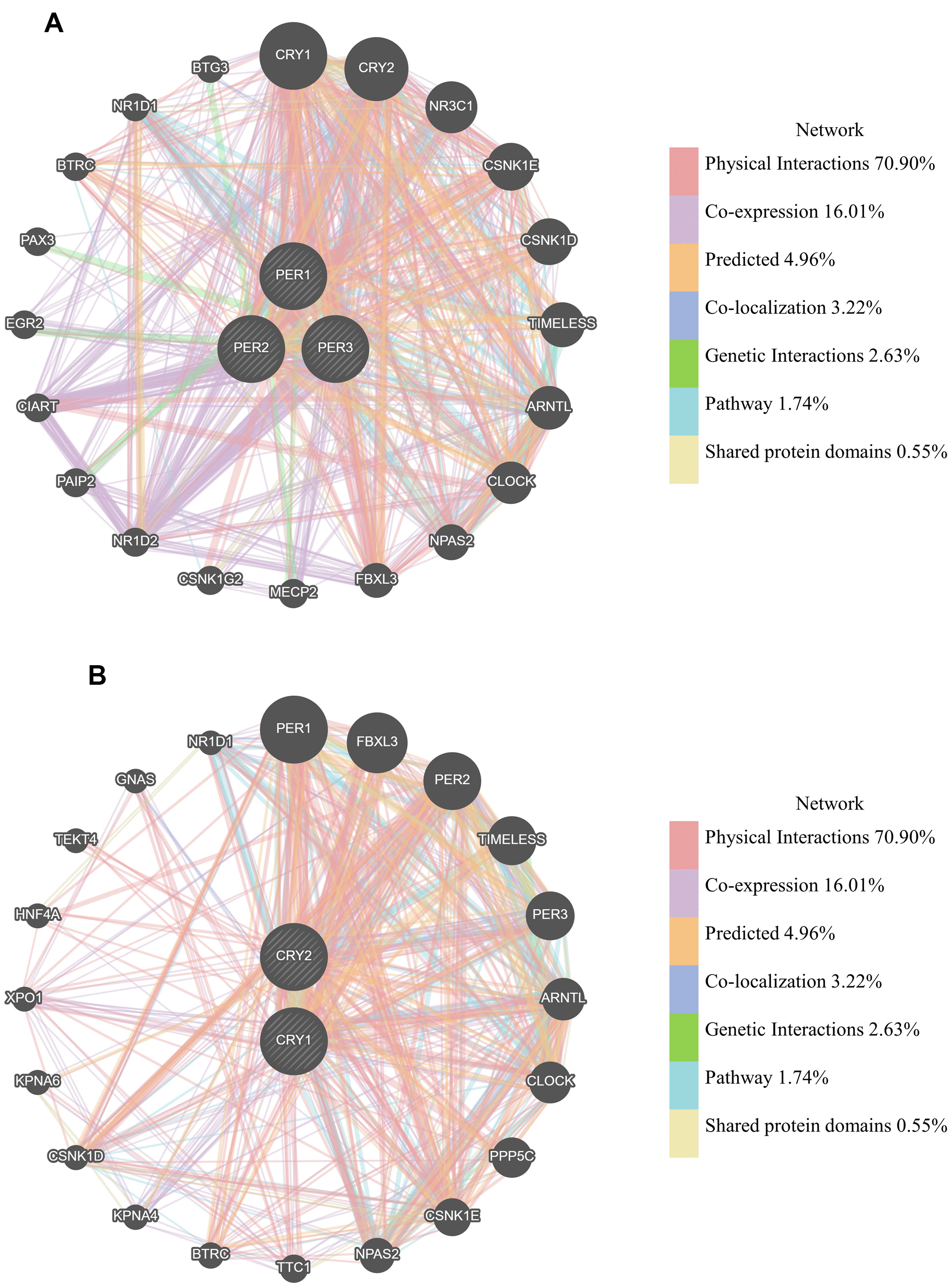

Figure 6. Gene interactions among PER1, PER2, PER3, CRY1, and CRY2 in lung adenocarcinoma (LUAD) patients (GeneMANIA). (A) PER (period) family network constructed by GeneMANIA. (B) CRY (cryptochrome) family network constructed by GeneMANIA. Each node in the figure represents a gene, and the size of the node represents the intensity of the interaction. Connecting lines between nodes represent gene-gene interactions. The color of the connecting line represents the type of interaction.
