Research Paper Volume 15, Issue 19 pp 10010—10030

Identification of an endoplasmic reticulum stress-related prognostic risk model with excellent prognostic and clinical value in oral squamous cell carcinoma

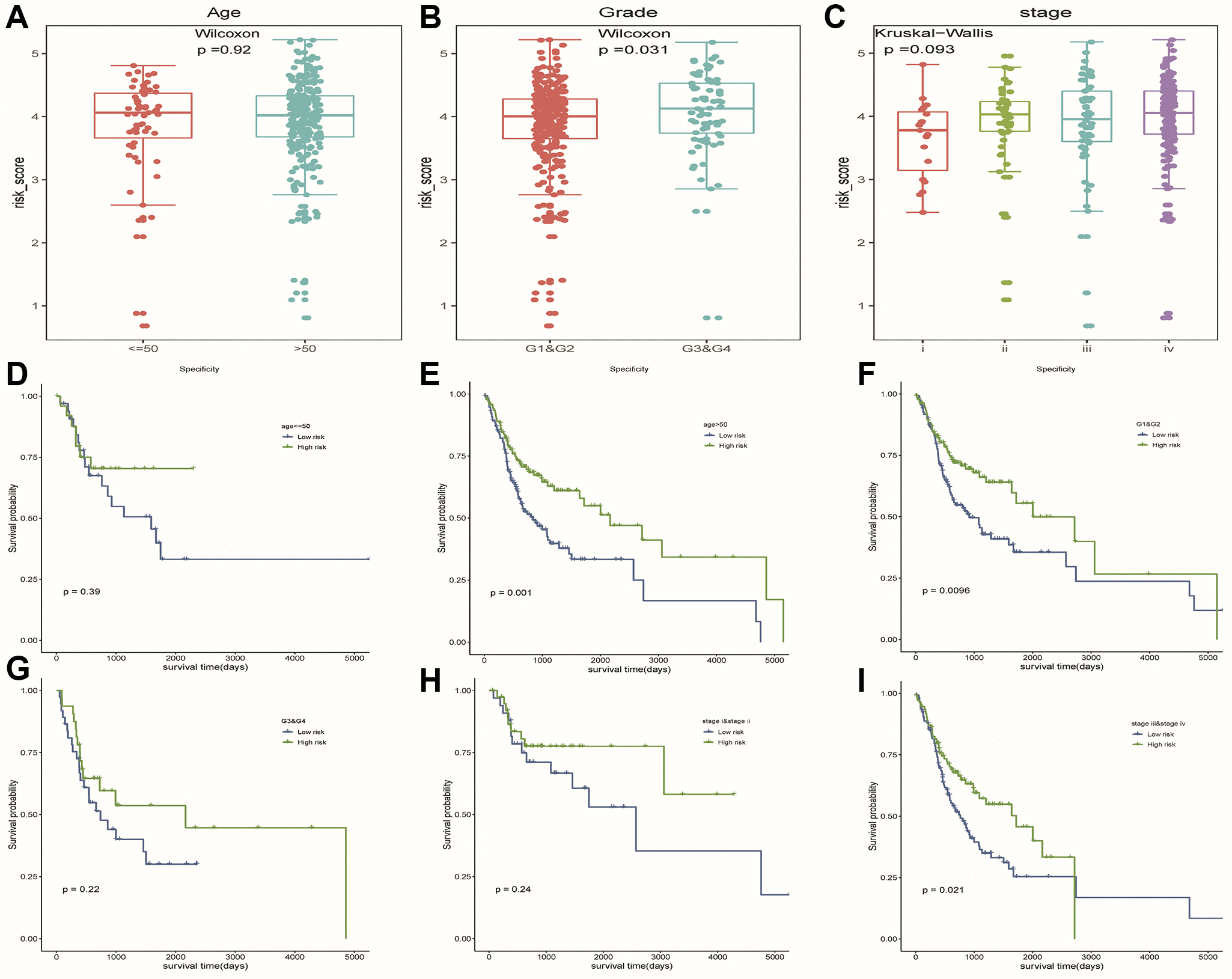

Figure 7. The hierarchical analysis based on clinicopathological features. (AC) Differences of risk scores between patients with different clinicopathological characteristics (age, grade and stage), respectively. (DI) Survival curves were used to assess the model’s ability to discriminate outcomes among subgroups of patients with different clinicopathological features. Blue and green represented low-risk and high-risk samples, respectively.
