Research Paper Volume 15, Issue 19 pp 10305—10329

The integrated single-cell analysis developed an immunogenic cell death signature to predict lung adenocarcinoma prognosis and immunotherapy

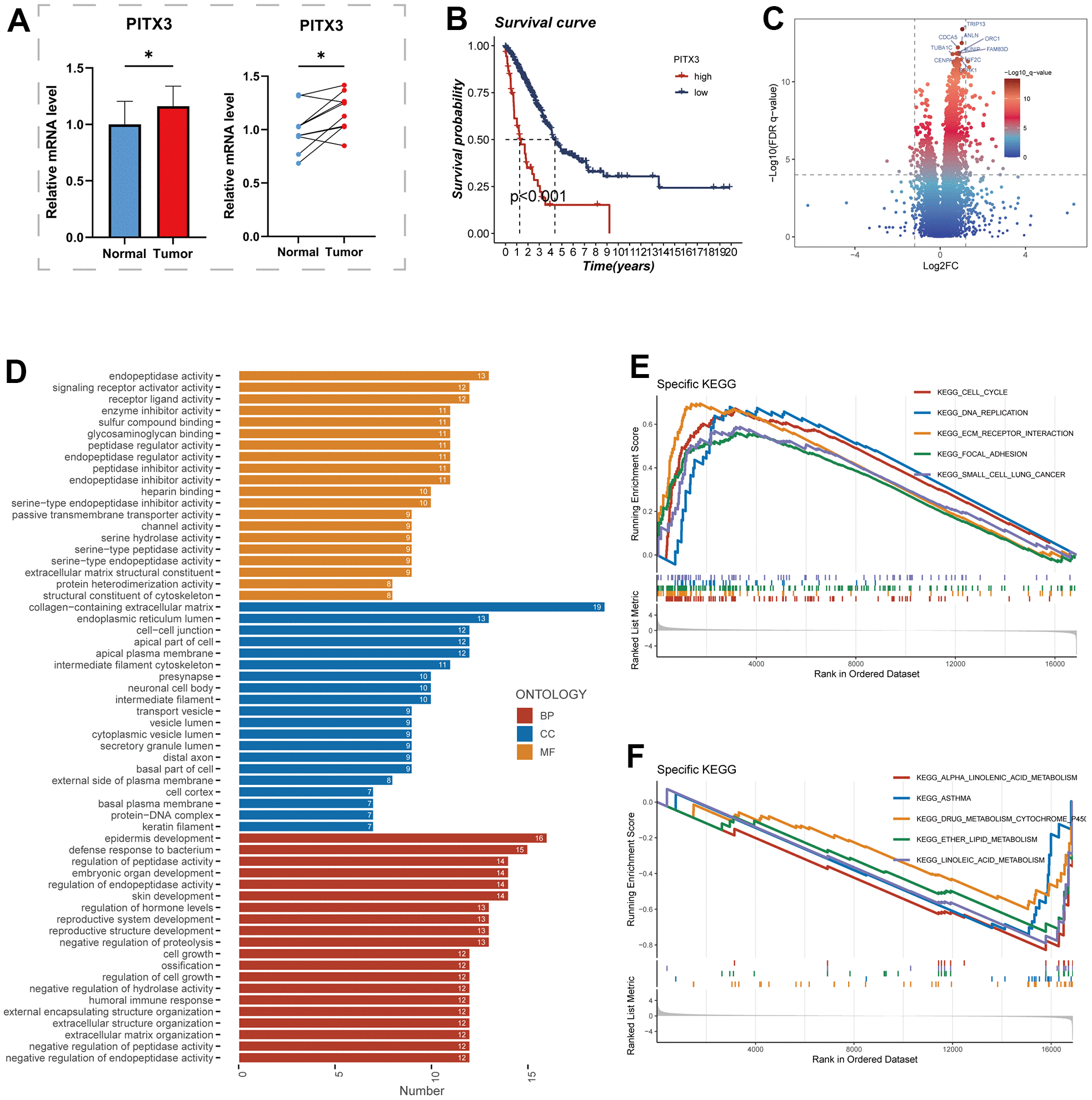

Figure 10. The role of PITX3. (A) Differential expression of PITX3 in normal and tumor samples of TCGA. (B) Survival differences in high and low PITX3-expressing samples. (C) Differential genes between samples with high and low expression of PITX3, results are presented in volcano plots. (D) Pathways of differential gene enrichment in GO. (E, F) GSEA enrichment analysis in the high- and low-PITX3 expressing groups.
